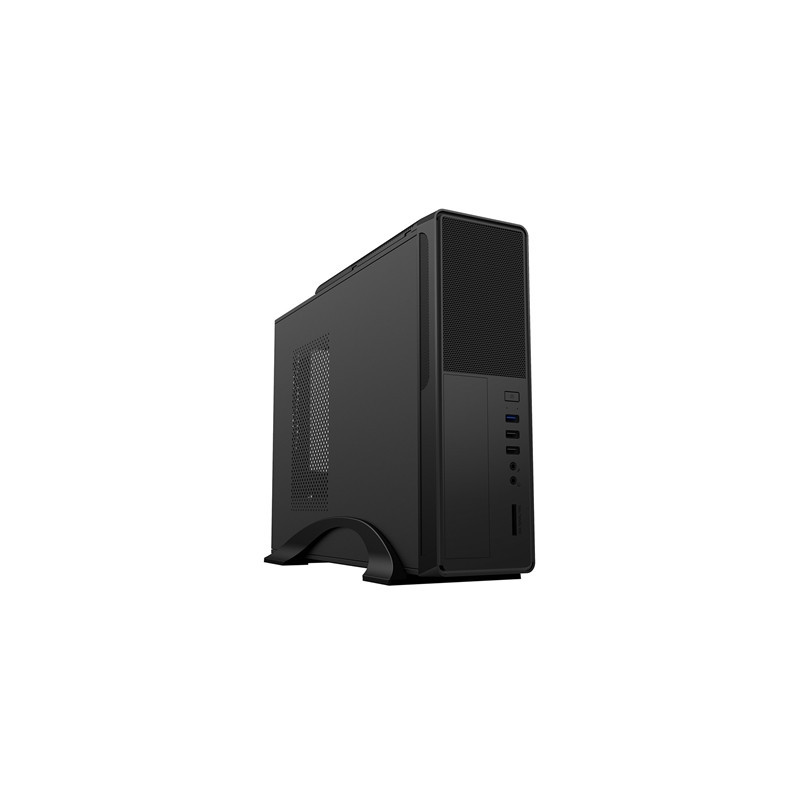

Intel i5 12th Gen 6 Core 12 Threads 2.50GHz (4.40GHz Boost) 16GB ADATA DDR4 RAM 512GB ADATA NVMe WiFi - Small Form Factor Case - Pre-Built System

Mid Level intel 6 Core Office and Home PC. Perfect for emails browsing the internet videos and basic gaming

The 12th Generation of Intel® Core™ Processors are here! The i5-12400 allows you to compete with confidence or get immersed in new worlds with a revolutionary processor architecture that focuses on what matters more - Gaming! This processor is able to give you excellent performance. The 12th Generations CPU's are compatible with most 600 series motherboards and support PCIe Gen 5 you can also take advantage of DDR5 memory and great features like Intel Turbo Boost Max Technology 3.0..

Intel smart cache
Intel smart cache is shared cache dynamically allocated to each processor core based on workload. This efficient dual-core-optimized implementation increases the probability that each core can access data from the fast cache significantly reducing latency to frequently used data and improving performance.

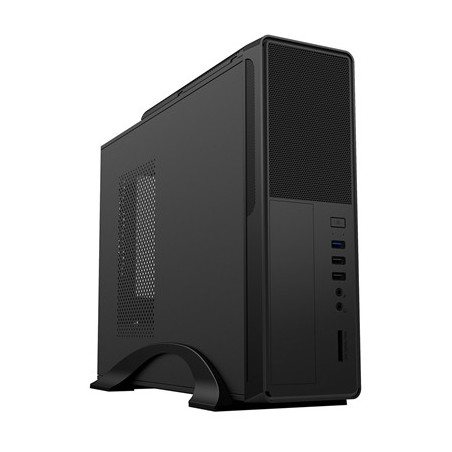

CiT S014B micro slim case is a case with a very compact design. Allowing you to save desk space the S014B front panel is made with mesh details along with a an 8cm fan which is included at the top for the best airflow and the S014B also comes with a silent micro SFX 300W PSU it helps to provide the best performance business PC system.

Product Description
Intel i5 12th Gen 6 Core 12 Threads 2.50GHz (4.40GHz Boost) 16GB ADATA DDR4 RAM 512GB ADATA NVMe WiFi - Small Form Factor Case - Pre-Built System

Processor
Intel Core i5 12400 6 Core Processor 12 Threads 2.5GHz up to 4.4GHz Turbo Alder Lake Socket LGA 1700 18MB Cache 65W Maximum Turbo Power 117W Intel UHD 730 Graphics

Processor Cores
6

Processor Threads
12

Core Clock Speed
2.50GHz

Core Boost Speed
4.40GHz

Memory
ADATA Premier AD4U320016G22-BGN 16GB (1x 16GB) DIMM System Memory 3200MHz DDR4 CL22

Memory Configuration
1 x 16GB
2 Lanes (1 occupied)

SSD Drive
Adata Legend 710 (ALEG-710-512GCS) 512GB NVMe SSD M.2 Interface PCIe Gen3 2280 Read 2400MB/s Write 1600MB/s

Format
NVMe M.2

Max Read/Write Speeds
Read: Up to 2400MB/S
Write: Up to 1600MB/S

Hard Drive
N/A

Optical Drive
None

Graphics
Processor Graphics
Intel UHD Graphics 730
Graphics Base Frequency
300 MHz

Graphics Max Dynamic Frequency
1.40 GHz

Graphics Card I/O
N/A

Operating System
No O/S

Card Reader
Built-in Card Reader - SD/MMC/MS 3in1

Networking
Prevo 300mbps N300 PCI Express Wireless Adapter
Antenna Type: Omni Directional (RP-SMA) 2 x 2dBi Antennas
Wireless Channel: 2T2R MIMO Support
Wireless Standards: IEEE 802.110 IEEE 802.11g IEEE 802.11b
Frequency: 2.412 - 2.472GHz
Signal Rate: 110 300Mbps 11g 54Mbps 11b 111Mbps
Wireless Security: Supports 64/128bitWEP WPA-PSK WPA2-PSK

Power Supply
300W Micro ATX PSU
20 + 4 Pin ATX: 1
+12V 4 Pin CPU: 1
4 Pin Molex: 2
SATA: 3
FDD: 1

Motherboard
Gigabyte H610M H V3 DDR4 Ultra Durable Intel 1700 Socket Motherboard Micro-ATX 2x DDR4 Slots 1x M.2 Socket GbE LAN 1x D-Sub / 1x HDMI Port

Expansion Slot
CPU:
1 x PCI Express x16 slot supporting PCIe 4.0 and running at x16
Chipset:
1 x PCI Express x1 slot supporting PCIe 3.0 and running at x1

Storage
Chipset:
1 x M.2 connector (Socket 3 M key type 2280/2260 PCIe 3.0 x4/x2 SSD
support)
4 x SATA 6Gb/s connectors

Rear I/O
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x chassis intrusion header

Chassis
CiT S014B Thin Client Micro ATX 1 x USB 3.0 / 2 x USB 2.0 Black Case with 300W PSU

Drive Bays
1 x 5.25 External
2 x 3.5 Internal
2 x 2.5 Internal
(1 x 2.5 uses a 3.5 bay)

IO Ports
1 x USB 3.0
2 x USB 2.0
1 x HD Audio (Also Supports AC'97)
1 x Microphone
SD/TF Card Reader Included (Built-in)

Cooling
Cooling Front: None
Cooling Top: Space For 1 x 80mm Fan (inc.)
Cooling Rear: None
Cooling Side: Vent
Cooling Bottom: Vent and Space for 1 x 50mm fan (Not Included) or SSD

Dimensions
100 x 306 x 403mm

Package Weight
5.3 kg

Warranty
3 Years; 1st year parts including collect and return and a further 2 years labour warranty (UK mainland only)
