LOGIX Intel Core Ultra 7 AI Powered 20 Core 3.90GHz (5.50GHz Boost) NPU with 13 TOPS 32GB Kingston DDR5 Memory 1TB Kingston NVMe Gigabyte RTX 5060 8GB 4xMonitor 2 x 2.5GB LAN Windows 11 Pro

Whether you're building an AI-powered workstation a CCTV monitoring hub or simply need a reliable high-performance PC for your home office the LOGIX CCT-U733P is built to handle it all — quietly efficiently and securely.

Smart Power for Work Security & Everyday Use
The LOGIX CCT-U733P is a powerful desktop PC built for modern home offices small businesses and CCTV monitoring setups. Whether you're managing multiple security feeds working across several apps or tapping into AI-powered tasks this system is designed to keep up — quietly and efficiently.

Powered by Next-Gen Intel Core Ultra
Featuring the Intel Core Ultra 7 265K processor with 20 cores and 20 threads this PC delivers ultra-responsive performance for multitasking and productivity. Its built-in AI NPU offloads background tasks like noise filtering and auto-framing freeing up your CPU and GPU for smoother performance overall.

Built for Multi-Screen CCTV & Business Use
Equipped with an NVIDIA GeForce RTX 5060 graphics card the CCT-U733P supports up to 4 monitors and 16 camera feeds in up to 8K resolution. Perfect for CCTV monitoring or high-resolution multi-screen work it offers 1 HDMI and 3 DisplayPort outputs for flexible display setups.

Fast Storage & Clean Setup
A 1TB Kingston NVMe SSD ensures fast load times and quick access to your files. Preinstalled with Windows 11 Pro fully updated and bloatware-free the system is ready to go out of the box — no unnecessary software to slow you down.

Built in the UK Backed by Warranty
Hand-assembled in the UK with trusted components the CCT-U733P is backed by a 3-year parts and collection warranty for total peace of mind.

Key Features
Processor: Intel Core Ultra 7 265K (20 cores up to 5.5GHz built-in AI NPU)
Graphics: NVIDIA GeForce RTX 5060 (supports up to 4 monitors / 8K resolution)
Storage: 1TB Kingston NVMe SSD
Connectivity: Gigabit Ethernet
OS: Windows 11 Pro (preinstalled bloatware-free)
Warranty: 3-Year parts and collection warranty

Specification:

Operating System:Windows 11 Pro
Processor:Intel Core Ultra 7 - 3.90GHz (5.50GHz boost) 20-cores & 20 threads
Memory (RAM):Kingston Technology 32GB DDR5 (upgradeable to 128GB DDR5 – additional memory slot available)
Storage:Kingston Technology 1TB PCIE 4.0 NVMe M.2 SSD
Storage Expansion:2 x 3.5/2.5 Combo & 2 x 2.5
Graphics:Gigabyte Nvidia GeForce RTX 5060 OC 8GB Graphics Card with 1 x HDMI 2.1 & 3 x DisplayPort 1.4 ports
Motherboard:B860 EAGLE WIFI6E
Case:Be Quiet 501 Pure Base
Connections:
Front –
2 x USB 3.0
1 x HD Mic/Audio
Back:
1 x PS/2 keyboard/mouse port
3 x DisplayPort
1 x HDMI port
1 x USB Type-C port with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 2.0/1.1 ports on the back panel
2 x RJ-45 port
2 x antenna connectors (2T2R)
3 x audio jacks

Networking:
Wired:2 x 2.5Gbps GbE LAN
Intel Wi-Fi 6E AX211 (PCB rev. 1.0)
WIFI a b g n ac ax supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard
Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
WIFI a b g n ac ax supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard

Warranty:3 years - parts and collection included (UK mainland only)


Processor
Intel Core Ultra 7 265KF 20 Core 20 Threads 3.9GHz up to 5.5GHz Arrow Lake Processor LGA 1851 36MB Cache 125W 250W Maximum Turbo Power

Processor Cores
20

Processor Threads
20

Core Clock Speed
3.90GHz

Core Boost Speed
5.50GHz

NPU Specifications
NPU Name: Intel AI Boost
NPU Peak TOPS (Int8) 13
Sparsity Support Yes
Windows Studio Effects Support Yes
AI Software Frameworks Supported by NPUOpenVINO WindowsML DirectML ONNX RT WebNN

Security & Reliability
Intel Standard Manageability (ISM) : Yes
Intel Control-Flow Enforcement Technology : Yes
Intel AES New Instructions : Yes
Secure Key : Yes
Intel OS Guard : Yes
Intel Trusted Execution Technology : Yes
Execute Disable Bit : Yes
Intel Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel Virtualization Technology : Yes

Memory
Kingston KCP556UD8-32 32GB (1x 32GB) DIMM System Memory 5600MHz DDR5 CL46 Intel XMP
Voltage: 1.1V
Speed: 5600MT/s
1 x 32GB DIMM Memory
Intel XMP Profile Support

Memory Configuration
1 x 32GB
4 Lanes (1 occupied)

SSD Drive
Kingston NV3 (SNV3S/1000G) 1TB NVMe SSD M.2 Interface PCIe Gen4 2280 Read 6000 MB/s Write 4000 MB/s
Form Factor
M.2 2280
Interface
PCIe 4.0 x4 NVMe
Capacity
1TB
Sequential Read
6000MB/s
Sequential Wrire
4000MB/s
NAND
3D
Endurance (Total Bytes Written)
320TB

Format
Gen4 x4 NVMe

Max Read/Write Speeds
Read: Up to 6000MB/S
Write: Up to 400MB/S

Hard Drive
No Additional Drive Fitted
2 x 2.5 or 3.5 Drive Bays Available For Expansion

Optical Drive
No Optical Drive Fitted

Graphics
Gigabye NVIDIA GeForce RTX 5060 WINDFORCE MAX OC 8G GDDR7 Graphics Card 3840 CUDA Cores 2512 MHz Core Clock Dual Fan

Core Clock
2512 MHz (Reference card : 2497MHz)
CUDA Cores
3840
Memory Clock
28 Gbps
Memory Size
8 GB
Memory Type
GDDR7
Memory Bus
128 bit
Card Bus
PCI-E 5.0
Digital max resolution
7680x4320
Multi-view
4

Graphics Card I/O
DisplayPort 1.4a x 3
HDMI 2.1 x 1

Operating System
Microsoft Windows 11 Pro 64bit English OEI DVD Operating Software - installed and up to Date

Card Reader
No Card Reader Fitted

Networking
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) - On Motherboard
1 x TP-Link TX201 2.5 Gigabit PCIe Network Adapter
Intel Wi-Fi 6E AX211 (PCB rev. 1.0)
WIFI a b g n ac ax supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard
Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
WIFI a b g n ac ax supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard

Power Supply
DeepCool PF500 500W PSU 120mm Silent Hydraulic Bearing Fan 80 PLUS White Non Modular UK Plug
1 x Main Power Connector 24-Pin (20+4)
1 x EPS 12V Connector 8-Pin (4+4)
2 x PCIE 6+2 Pin (x1)
6 x SATA
2 x 4-Pin Peripheral

Motherboard
Gigabyte B860 EAGLE WIFI6E Intel 1851 Socket Motherboard ATX 4x DDR5 Slots 3x M.2 Sockets Fitted I/O Shield 2.5GbE LAN Wi-Fi 6E

Expansion Slot
CPU:
1 x PCI Express x16 slot supporting PCIe 5.0 and running at x16 (PCIEX16)
The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed be sure to install it in the PCIEX16 slot.
Chipset:
2 x PCI Express x16 slots supporting PCIe 4.0 and running at x1(PCIEX1_3/4)

Storage
CPU:
1 x M.2 connector (Socket 3 M key type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3 M key type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2Q_SB)
1 x M.2 connector (Socket 3 M key type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0 RAID 1 RAID 5 and RAID 10 support for SATA storage devices

Rear I/O
1 x PS/2 keyboard/mouse port
1 x HDMI port (Note)
1 x DisplayPort (Note)
1 x USB Type-C® port with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 2.0/1.1 ports
2 x antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks

Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
2 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

Chassis

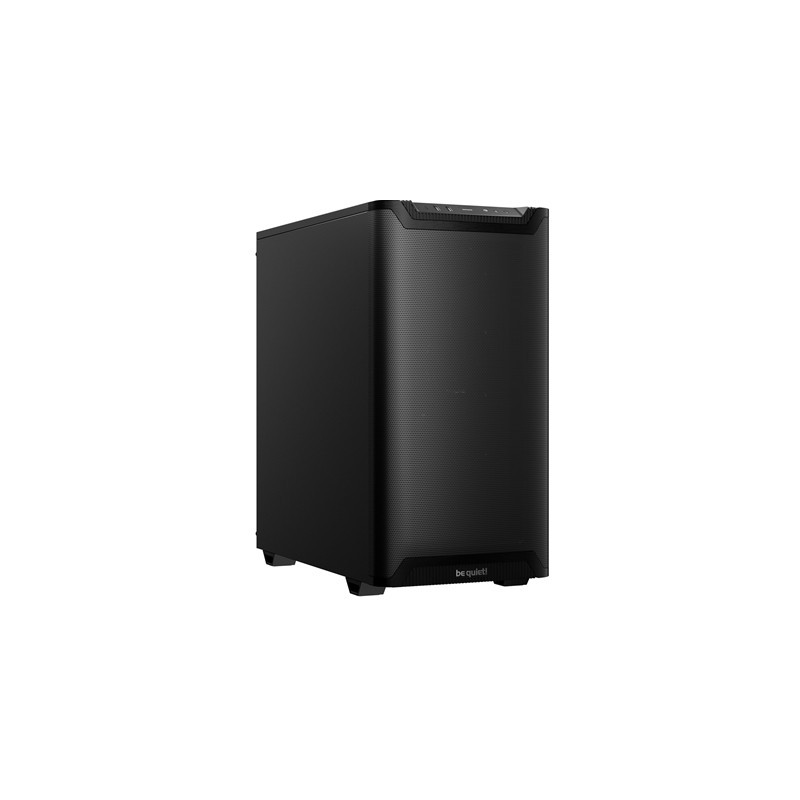

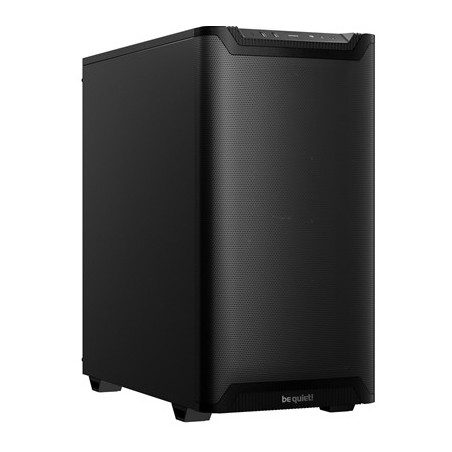

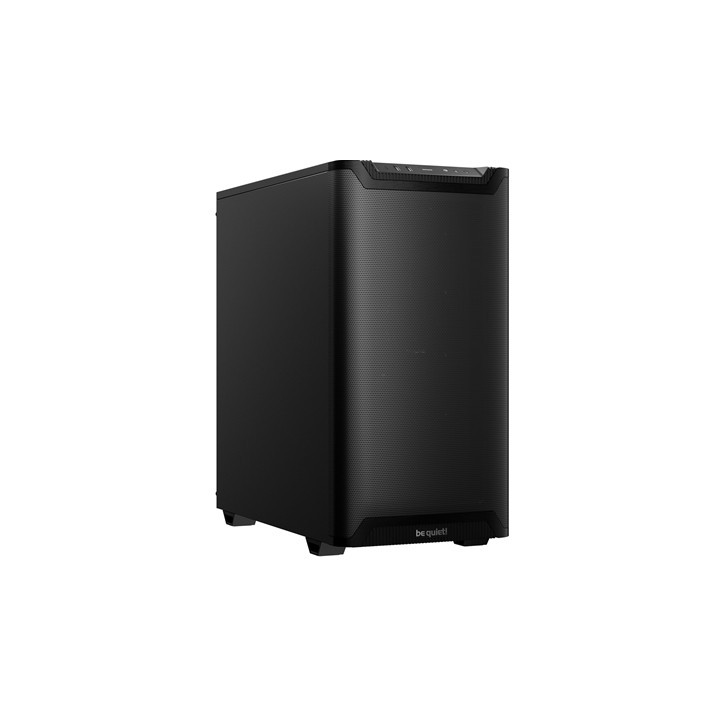

be quiet! Pure Base 501 Airflow Black ATX Mid Tower Case with USB-A USB-C 2 x Pure Wings 2 140mm Black PWM Fans Sleek Front Panel and Airflow Cover

Drive Bays
Internal 3.5: 2
Internal 2.5: 5

IO Ports
2 x USB 3.0
1 x USB-C
1 x Audio
Power
Reset

Cooling
Front: Up to 2 x 140mm or 3 x 120mm (2 x 140mm Pure Wings 3 fans preinstalled)
Top: Up to 2 x 120mm or 2 x 140mm
Rear: 1 x 120mm or 1x 140mm

Dimensions
463mm x 450mm x 231mm (L x W x H)

Package Weight
8.9 kg

Warranty
3 Years Parts & Labour Including Collect and Return (UK mainland only)
