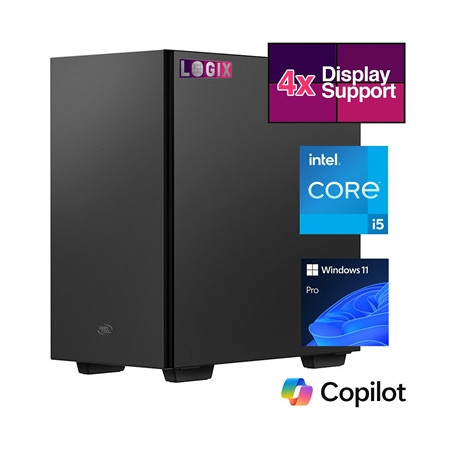

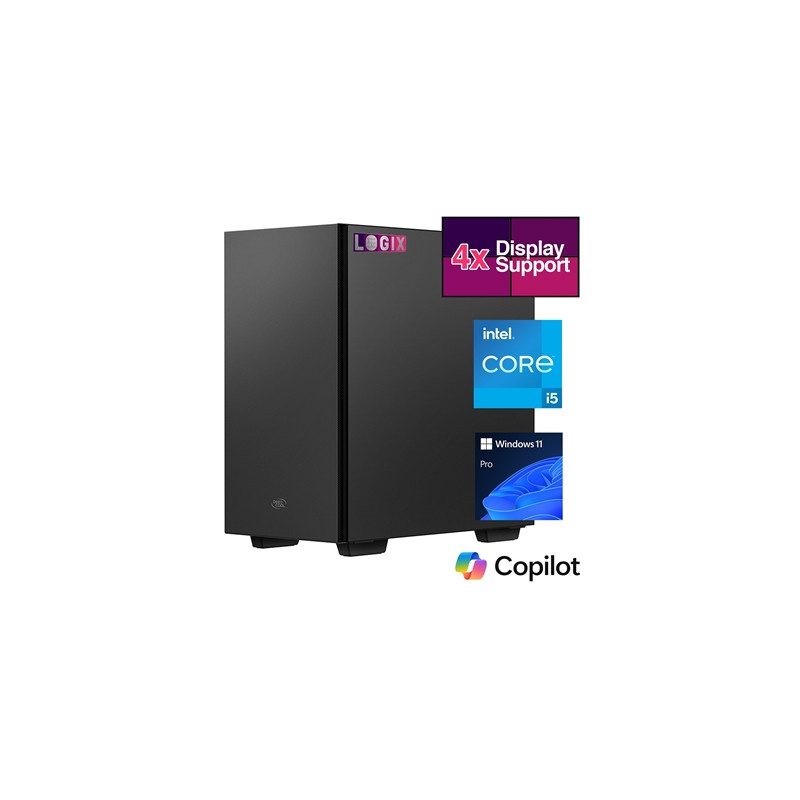

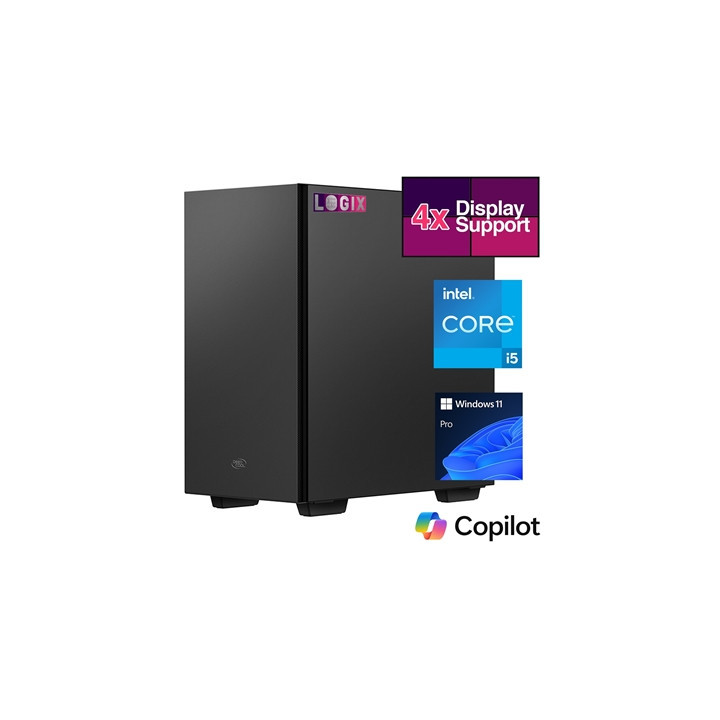

LOGIX Micro Tower - Designed for CCTV Use - Intel i5 Processor 16GB Kingston Memory 500GB Kingston SSD Output to 4 Monitors with Dual LAN Windows 11 Pro

The LOGIX CCT-V5M7 is not just a security monitoring station — it’s a versatile quiet and robust PC that adapts to your daily needs. Whether you're managing a CCTV system attending video meetings working with large files or multitasking across multiple screens this PC provides reliable power future-proof design and enterprise-grade stability.

All-in-One Powerhouse for Home Business and CCTV Monitoring
The LOGIX CCT-V5M7 is a discreet high-performance PC built for professionals who need reliable multitasking power for home office productivity and advanced CCTV monitoring. Housed in a DeepCool micro tower case designed for quiet operation and excellent airflow it delivers full-day performance without the noise — making it ideal for use in living or working environments.

Built for CCTV Ready for Business
Designed with security systems in mind this system supports up to 16 cameras in up to 8K resolution across four monitors making it an excellent solution for video surveillance monitoring and recording. Whether you're managing security feeds or switching to business tasks like reports spreadsheets or remote meetings the LOGIX CCT-V5M7 handles it all with ease.

Exceptional Performance with 12th Gen Intel & DDR5 Memory
Powered by a 12th Gen Intel Core i5 processor with 6 cores and 12 threads this PC offers smooth and responsive performance for multi-app workflows. Coupled with 16GB of Kingston DDR5 memory it ensures faster data transfer and responsiveness than previous-gen systems. Plus there's room to expand if your workload increases.

High-Speed Storage & Future-Proof Graphics
The included 500GB Kingston PCIe 4.0 NVMe SSD provides lightning-fast boot times and rapid data access. Need more storage? This PC supports up to 4 SSDs or HDDs offering flexibility for larger CCTV video files or business data. The Gigabyte NVIDIA GeForce RTX 3050 graphics card with dual fans and 4 display outputs (2x HDMI 2x DisplayPort) enables multi-monitor setups in 720p to 8K resolutions — perfect for monitoring design or data-heavy applications.

Ready to Use Right Out of the Box
Preinstalled with Windows 11 Pro (fully updated and bloatware-free) your system is ready for immediate deployment. A Logitech MK120 keyboard and optical mouse are included so you can plug in and get to work straight away — no setup headaches or unnecessary software slowing you down.

Built in the UK – Reliable Quiet and Long-Lasting
This PC is hand-built in the UK using premium components from globally recognized brands ensuring durability quality and peace of mind. Backed by a 3-year parts and collection warranty you’re fully covered in case of any issues — we’ll either collect and repair your PC or send you a replacement part with no hassle.

Key Features
Processor: Intel Core i5 12th Gen (6 cores / 12 threads 2.50GHz base up to 4.40GHz Turbo)
Memory: 16GB DDR5 Kingston (expandable)
Storage: 500GB Kingston PCIe 4.0 NVMe SSD (expandable up to 4 drives)
Graphics: NVIDIA GeForce RTX 3050 (2x HDMI 2x DisplayPort up to 8K output)
Case: DeepCool micro tower – quiet and airflow-optimized
Connectivity: Gigabit Ethernet (wired)
Operating System: Windows 11 Pro (preinstalled updated bloatware-free)
Display Support: Up to 4 monitors / 16 CCTV camera feeds in 8K
Included Accessories: Logitech MK120 keyboard + mouse
Warranty: 3-Year parts and collection warranty
Build Location: Hand-built in the UK

Specification:

Operating System:Windows 11 Pro
Processor:12th Gen Intel Core i5-12400 2.5GHz (4.40GHz boost) 6-cores & 12 threads
Memory (RAM):Kingston Technology 16GB DDR5 (upgradeable to 64GB DDR5 – additional memory slot available)
Storage:Kingston Technology 500GB PCIE 4.0 NVMe M.2 SSD
Storage Expansion:2 x 3.5/2.5 Combo & 2 x 2.5
Graphics:Gigabyte Nvidia GeForce RTX 3050 8GB Dual Fan Graphics Card with 2 x HDMI 2.1 & 2 x DisplayPort 1.4 ports
Motherboard:Gigabyte H610M K V2 DDR5
Case:Deep Cool micro tower
Connections:
Front –
2 x USB 3.0
1 x HD Mic/Audio
Back:
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
2 x DisplayPort
2 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x RJ-45 port
3 x audio jacks

Networking:
Wired:Realtek 1Gbps GbE LAN + 1GB LAN TP Link
Peripherals:Logitech MK120 Wired Keyboard (with waterproof silicone cover) & Mouse
Warranty:3 years - parts and collection included (UK mainland only)


Processor
Intel Core i5 12400F 6 Core Processor 12 Threads 2.5GHz up to 4.4Ghz Turbo Alder Lake Socket LGA 1700 18MB Cache

Processor Cores
6

Processor Threads
12

Core Clock Speed
2.50GHz

Core Boost Speed
4.40GHz

Security & Reliability
Intel Standard Manageability (ISM) : Yes
Intel Control-Flow Enforcement Technology : Yes
Intel AES New Instructions : Yes
Secure Key : Yes
Intel OS Guard : Yes
Intel Trusted Execution Technology : Yes
Execute Disable Bit : Yes
Intel Boot Guard : Yes
Mode-based Execute Control (MBEC) : Yes
Intel Virtualization Technology : Yes

Memory
Kingston 16GB (1 x 16GB) 5600MTs DDR5 DIMM System Memory Black Heatsink
Voltage: 1.1V
Latency Timing: CL46
Speed: 5600MTs
1 x 16GB DIMM Memory
Intel XMP Profile Support

Memory Configuration
1 x 16GB
2 Lanes (1 occupied)

SSD Drive
Kingston NV3 (SNV3S/500G) 500GB NVMe M.2 Interface PCIe Gen4 x4 2280 SSD Read 3000 MB/s Write 1300 MB/s
Data storage life
320 TBW
MTBF
1 500 000 hours
Interfaces/Ports
PCIe Gen4 x4 NVMe

Format
Gen4 x4 NVMe

Max Read/Write Speeds
Read: Up to 6000MB/S
Write: Up to 2200MB/S

Hard Drive
No Additional Drive Fitted
2 x 2.5 or 3.5 Drive Bays Available For Expansion

Optical Drive
No Optical Drive Fitted

Graphics
Gigabyte NVIDIA GeForce RTX 3050 WINDFORCE OC V2 8GB GDDR6 Graphics Card 2560 CUDA Cores 1792 MHz Core Clock Dual Fan 2x DisplayPorts / 2x HDMI

Core Clock
1792 MHz (Reference Card: 1777 MHz)
CUDA Cores
2560
Memory Clock
14000 MHz
Memory Size
8 GB
Memory Type
GDDR6
Memory Bus
128 bit
Card Bus
PCI-E 4.0
Digital max resolution
7680 x 4320
Multi-view
4

Graphics Card I/O
DisplayPort 1.4a x 2
HDMI 2.1 x 2

Operating System
Microsoft Windows 11 Pro 64bit English OEI DVD Operating Software - installed and up to Date

Card Reader
No Card Reader Fitted

Networking
1 x Realtek GbE LAN chip (1 Gbps/100 Mbps) on motherboard
1 x TP-Link TG-3468 Gigabit PCI Express Network Adapter

Power Supply
DeepCool PF500 500W PSU 120mm Silent Hydraulic Bearing Fan 80 PLUS White Non Modular UK Plug Flat Black Cables Efficient & Affordable
1 x Main Power Connector 24-Pin (20+4)
1 x EPS 12V Connector 8-Pin (4+4)
2 x PCIE 6+2 Pin (x1)
6 x SATA (x2)
2 x 4-Pin Peripheral (x2)

Motherboard
Gigabyte H610M K V2 DDR5 Intel Socket 1700 Micro ATX Motherboard PCIe 4.0 Design Gen3 x4 M.2 GbE LAN Anti-Sulfur Resistor Smart Fan 6

Expansion Slot
CPU:
1 x PCI Express x16 slot supporting PCIe 4.0 and running at x16
Chipset:
1 x PCI Express x1 slot supporting PCIe 3.0 and running at x1

Storage
Chipset:
1 x M.2 connector (Socket 3 M key type 2280/2260 PCIe 3.0 x4/x2 SSD support)
2 x SATA 6Gb/s connectors

Rear I/O
1 x HDMI port
1 x DisplayPort
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x Clear CMOS jumper

Chassis
DeepCool MACUBE 110 Case Home & Business Black Micro Tower 2 x USB 3.0 Solid Side

Drive Bays
Internal 3.5: 2
Internal 2.5: 2
External 3.5: 0
External 5.25: 0

IO Ports
2 x USB 3.0
1 x Audio
Power
Reset

Cooling
Front: 3 x 120mm / 2 x 140mm
Top: 2 x 120mm / 2 x 140mm
Rear: 1 x 120mm DC fan (Pre-installed)

Dimensions
400mm x 225mm x 431mm

Package Weight
6.9 kg

Warranty
3 Years Parts & Labour Including Collect and Return (UK mainland only)
