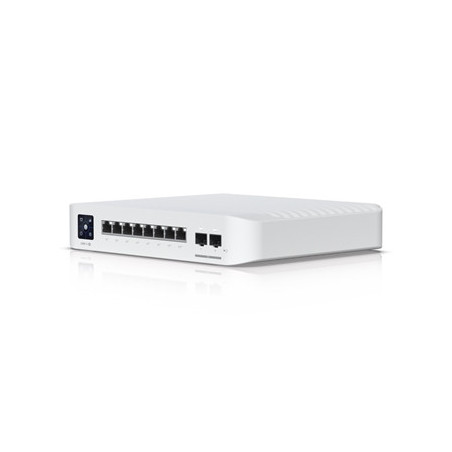

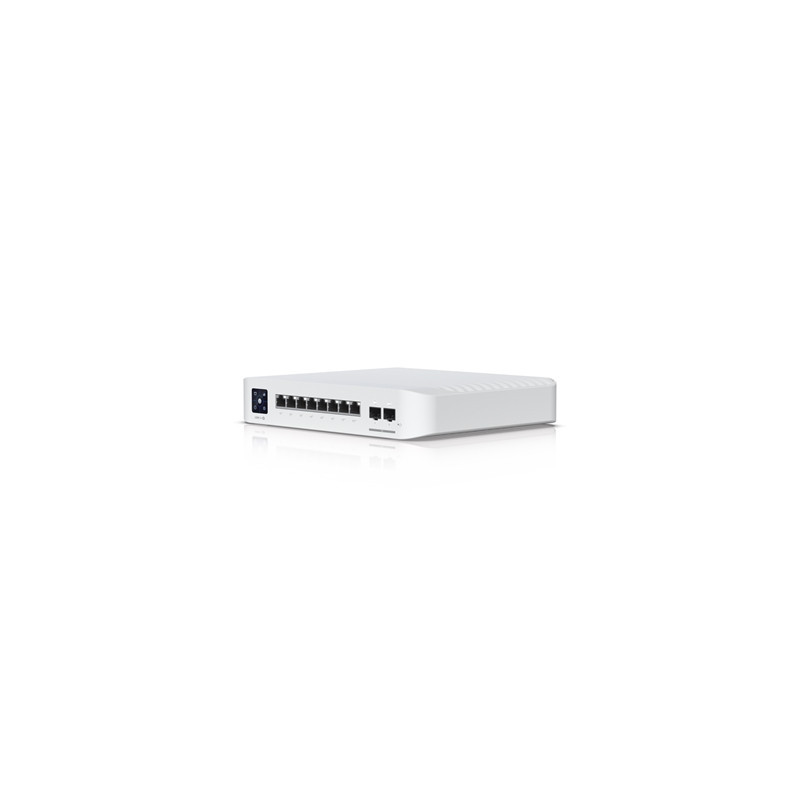

Ubiquiti USW-PRO-8-POE UniFi Switch Pro 8 Port Layer 3 POE++ Managed Switch
£301.72
VAT included
Ubiquiti USW-PRO-8-POE UniFi Switch Pro 8 Port Layer 3 POE++ Managed Switch
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Ubiquiti UniFi USW-Pro-8-PoE Professional 8 Port PoE Switch
Key Features
An 8-port Layer 3 switch
6 x GbE PoE+ ports
2 x GbE PoE++ ports
2 x 10G SFP+ ports
120W total PoE availability
The Ubiquiti UniFi USW-Pro-8-PoE is an advanced 8-port Layer 3 switch that offers both PoE+ and PoE++ outputs. This switch is equipped with six Gigabit Ethernet (GbE) PoE+ ports and two GbE PoE++ ports along with two 10G SFP+ ports providing versatile connectivity options. It offers a total Power over Ethernet (PoE) availability of 120W.
The USW-Pro-8-PoE's enclosure is made from a combination of plastic and metal ensuring durability. The device features an Ethernet In-Band management interface and a 1.3 touchscreen LCM display for easy control and monitoring. It supports a total non-blocking throughput of 28 Gbps and a switching capacity of 56 Gbps.
USW-Pro-8-PoE uses a universal input of 100–240V AC with a maximum power consumption of 30W (excluding PoE output). The switch provides a maximum PoE wattage per port of 15W for PoE 30W for PoE+ and 60W for PoE++.
The USW-Pro-8-PoE is certified by CE FCC and IC and is managed with UniFi Network Application version 7.5.176 or later????.
Specifications
Mechanical
Weight & Dimensions
200 x 248 x 44 mm
2.1 kg
Enclosure materials
Polycarbonate metal
Mount material
Polycarbonate
Hardware
Management interface
Ethernet In-Band
Networking interface
(8) GbE RJ45 ports
(2) 10G SFP+ ports
PoE interface
(6) PoE/PoE+ (Pins 1 2+; 3 6-)
(2) 60W PoE++ (Pair A 1 2+; 3 6-) (Pair B 4 5+; 7 8-)
Total non-blocking throughput
28 Gbps
Switching capacity
56 Gbps
Power method
Universal input 100—240V AC 2A Max.
Power supply
AC/DC internal
Supported voltage range
100—240V AC
Max. power consumption
30W (Excluding PoE output)
Total available PoE
120W
Max. PoE wattage per port by PSE
PoE: 15W
PoE+: 30W
PoE++: 60W
Voltage range PoE mode
PoE: 44—57V
PoE+: 50—57V
PoE++: 50—57V
LCM display
(1) 1.3 touchscreen
LEDs
RJ45 ports: link/activity
Button
Factory reset
Operating temperature
-5 to 45° C (23 to 113° F)
Operating humidity
10 to 90% noncondensing
Certifications
CE FCC IC
Application Requirements
UniFi Network
Version 7.5.176 and later
Key Features
An 8-port Layer 3 switch
6 x GbE PoE+ ports
2 x GbE PoE++ ports
2 x 10G SFP+ ports
120W total PoE availability
The Ubiquiti UniFi USW-Pro-8-PoE is an advanced 8-port Layer 3 switch that offers both PoE+ and PoE++ outputs. This switch is equipped with six Gigabit Ethernet (GbE) PoE+ ports and two GbE PoE++ ports along with two 10G SFP+ ports providing versatile connectivity options. It offers a total Power over Ethernet (PoE) availability of 120W.
The USW-Pro-8-PoE's enclosure is made from a combination of plastic and metal ensuring durability. The device features an Ethernet In-Band management interface and a 1.3 touchscreen LCM display for easy control and monitoring. It supports a total non-blocking throughput of 28 Gbps and a switching capacity of 56 Gbps.
USW-Pro-8-PoE uses a universal input of 100–240V AC with a maximum power consumption of 30W (excluding PoE output). The switch provides a maximum PoE wattage per port of 15W for PoE 30W for PoE+ and 60W for PoE++.
The USW-Pro-8-PoE is certified by CE FCC and IC and is managed with UniFi Network Application version 7.5.176 or later????.
Specifications
Mechanical
Weight & Dimensions
200 x 248 x 44 mm
2.1 kg
Enclosure materials
Polycarbonate metal
Mount material
Polycarbonate
Hardware
Management interface
Ethernet In-Band
Networking interface
(8) GbE RJ45 ports
(2) 10G SFP+ ports
PoE interface
(6) PoE/PoE+ (Pins 1 2+; 3 6-)
(2) 60W PoE++ (Pair A 1 2+; 3 6-) (Pair B 4 5+; 7 8-)
Total non-blocking throughput
28 Gbps
Switching capacity
56 Gbps
Power method
Universal input 100—240V AC 2A Max.
Power supply
AC/DC internal
Supported voltage range
100—240V AC
Max. power consumption
30W (Excluding PoE output)
Total available PoE
120W
Max. PoE wattage per port by PSE
PoE: 15W
PoE+: 30W
PoE++: 60W
Voltage range PoE mode
PoE: 44—57V
PoE+: 50—57V
PoE++: 50—57V
LCM display
(1) 1.3 touchscreen
LEDs
RJ45 ports: link/activity
Button
Factory reset
Operating temperature
-5 to 45° C (23 to 113° F)
Operating humidity
10 to 90% noncondensing
Certifications
CE FCC IC
Application Requirements
UniFi Network
Version 7.5.176 and later
