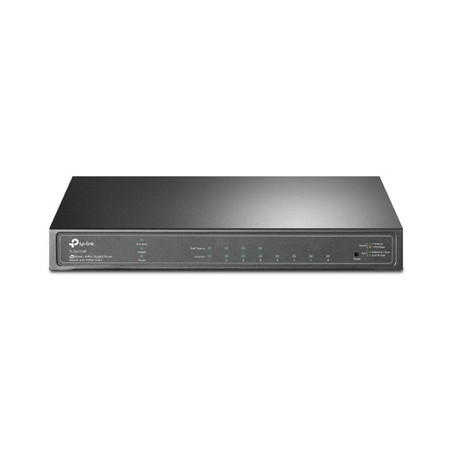

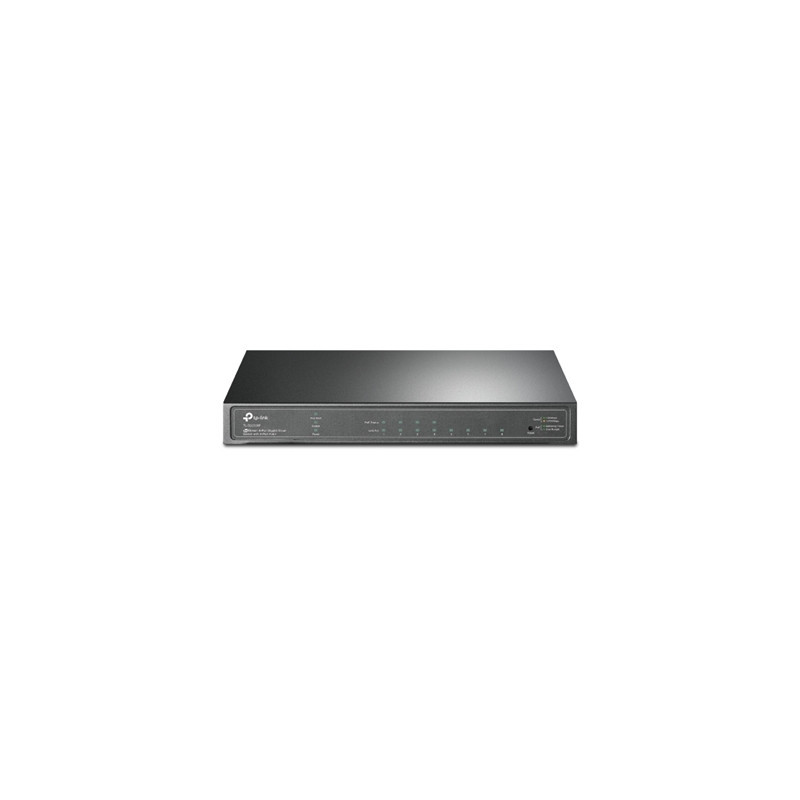

TP-Link JetStream TL-SG2008P 8-Port Metal Gigabit Smart Switch with 4-Port PoE+ (62W)

JetStream 8-Port Gigabit Smart Switch with 4-Port PoE+

Key Features
62 W PoE Budget: 4 x 802.3at/af-compliant PoE+ ports with a total power supply of 62 W*.
Full Gigabit Ports: 4 x gigabit PoE+ ports and 4 x gigabit non-PoE ports provide high-speed connections.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)** Centralized Cloud Management and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Robust Security Strategies: IP-MAC-Port Binding ACL Port Security DoS Defend Storm control DHCP Snooping 802.1X Radius Authentication and more.
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

Smarter Switching for Smarter Results
JetStream 8-Port Gigabit Smart Switch with 4-Port PoE+

Multiple Application Scenarios
The TL-SG2008P is fully compatible with PoE devices such as IP cameras access points and IP phones. It also works with non-PoE wired devices to provide gigabit connections such as PCs printers and IPTV.

Power over Ethernet for Simplified Network Deployment
Features four 802.3af/at compliant PoE+ ports the switch supports up to 62 W total PoE power budget.* Designed to use a single Ethernet cable for both data and power transmission it offers flexible deployment for PoE-supported devices such as wireless access points IP cameras and IP phones lowering infrastructure costs for small businesses.

Access Control List (ACL)
ACL serves as a virtual admin allowing all connected devices to obtain data in accordance with user-defined network rules and help you create the network regulations you need.

QoS for Lag-Free Experience
Designate the priority of traffic based on QoS ensuring latency sensitive applications like voice and video remain clear and lag-free.

VLAN for Security
Use VLAN to achieve logical grouping management of devices in different physical LANs improve information security and reduce data congestion.

Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points switches and gateways guaranteeing powerful business network with higher efficiency higher security and higher reliability.

Hassle-Free Centralized Cloud Management:
100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere anytime.

Specifications

HARDWARE FEATURES

Standards and Protocols
IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3ad IEEE 802.3af IEEE 802.3at IEEE 802.3x IEEE 802.1d IEEE 802.1s IEEE 802.1w IEEE 802.1q IEEE 802.1p IEEE 802.1x

Interface
8 x 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at/af PoE+)
Auto-Negotiation/Auto MDI/MDIX

Network Media
10BASE-T: UTP category 3 4 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5 5e or above cable (maximum 100m)

Fan Quantity
Fanless

Power Supply
External Power Adapter (Output: 53.5 VDC/ 1.31 A)

Power Consumption
7.9 W (220 V/50 Hz) (no PD connected)
79.2 W (220 V/50 Hz) (with 62 W PD connected)

PoE Ports (RJ45)
Standard: 802.3af/at compliant
PoE Ports: 4 Ports
Power Supply: 62 W*

Dimensions ( W x D x H )
8.2 x 4.9 x 1.0 in (209 x 126 x 26mm)

Max Power Consumption
V1: 69.7 W (220 V/50 Hz) (with 62 W PD connected); 7.9 W (220 V/50 Hz) (no PD connected)
V2: 73.8 W (220 V/50 Hz) (with 62 W PD connected)
V3: 77.3 W (110 V/60 Hz) (with 62 W PD connected)

Max Heat Dissipation
V1: 237.82 BTU/hr (220 V/50 Hz) (with 62 W PD connected); 26.95 BTU/hr (220 V/50 Hz) (no PD connected)
V2: 251.84 BTU/hr (220 V/50 Hz) (with 62 W PD connected)
V3: 263.6 BTU/hr (110 V/60 Hz) (with 62 W PD connected)

PERFORMANCE

Bandwidth/Backplane
16 Gbps

MAC Address Table
8k

Packet Buffer Memory
4.1 Mbit

Jumbo Frame
9 KB

SOFTWARE FEATURES

Quality of Service
802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode
SP (Strict Priority)
WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
Port/Flow-based Rating Limit
Smoother Performance
Storm Control
Multiple Control Modes(kbps/ratio)
Broadcast/Multicast/Unknown-Unicast Control

L2 and L2+ Features
DHCP Relay
DHCP VLAN Relay
DHCP L2 Relay
Link Aggregation
Static link aggregation
802.3ad LACP
Up to 8 aggregation groups and up to 8 ports per group
Spanning Tree Protocol
802.1D STP
802.1w RSTP
802.1s MSTP
STP Security: TC Protect BPDU Filter/Protect
Root Protect
Loopback Detection
Flow Control
802.3x Flow Control
Mirroring
Port Mirroring
CPU Mirroring
One-to-One
Many-to-One
Flow-Based
Ingress/Egress/Both
Device Link Detect Protocol (DLDP)
802.1ab LLDP/ LLDP-MED

L2 Multicast
511 IPv4 IPv6 shared multicast groups
IGMP Snooping
IGMP v1/v2/v3 Snooping
Fast Leave
IGMP Snooping Querier
Static Group Config
Multicast VLAN Registration (MVR)
Multicast Filtering
MLD Snooping
MLD v1/v2 Snooping
Fast Leave
MLD Snooping Querier
Static Group Config
Limited IP Multicast (256 profiles and 16 entries per profile)

Advanced Features
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule

IPv6 Support
IPv6 Dual IPv4/IPv6
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP)
version 6
TCPv6/UDPv6
IPv6 applications
DHCPv6 Client
Ping6
Tracert6
Telnet (v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP

VLAN
VLAN Group
Max. 4K VLAN Groups
802.1Q tag VLAN
MAC VLAN
Protocol VLAN
GVRP
Voice VLAN

Access Control List
Support up to 230 entries
Time-Range
Time Slice
Week Time-Range
Absolute Time-Range
Holiday
Time-based ACL
MAC ACL
Source MAC
Destination MAC
VLAN ID
User Priority
Ether Type
IP ACL
Source IP
Destination IP
IP Protocol
TCP Flag
TCP/UDP Source Port
TCP/UDP Destination Port
DSCP/IP TOS
IPv6 ACL
Combined ACL
Rule Operation
Permit/Deny
Policy Action
Mirror
Rate Limit
Redirect
QoS Remark
ACL Rules Binding
Port Binding
VLAN Binding
Actions for flows
Mirror (to supported interface)
Redirect (to supported interface)
Rate Limit
QoS Remark

Security
AAA
802.1X
Port-based authentication
MAC (Host) based authentication
Authentication Method includes PAP/EAP-MD5
MAB
Guest VLAN
Support Radius authentication and
accountability
IP/IPv6-MAC Binding
512 Binding Entries
DHCP Snooping
DHCPv6 Snooping
ARP Inspection
ND Detection
IP Source Guard
253 Entries
Source IP+Source MAC
IPv6 Source Guard
183 Entries
Source IPv6 Address+Source MAC
DoS Defend
Static/Dynamic/Permanent Port Security
Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
kbps/ratio control mode
Port Isolation
Secure web management through HTTPS with
SSLv3/TLS 1.2
Secure Command Line Interface (CLI)
management with SSHv1/SSHv2
IP/Port/MAC-based access control

MIBs
MIB II (RFC1213)
Bridge MIB (RFC1493)
P/Q-Bridge MIB (RFC2674)
Radius Accounting Client MIB (RFC2620)
Radius Authentication Client MIB (RFC2618)
Remote Ping Traceroute MIB (RFC2925)
Support TP-Link private MIBs
RMON MIB(RFC1757 rmon 1 2 3 9)

MANAGEMENT

Omada App
Yes

Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller

Cloud Access
Yes (Through OC300 OC200 Omada Cloud-Based Controller or Omada Software Controller)

Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2008P v1 v3 and above while is not supported by TL-SG2008P v2)

Management Features
Web-based GUI
Command Line Interface (CLI) through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
RMON (1 2 3 9 groups)
SDM Template
DHCP/BOOTP Client
Dual Image Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log

OTHERS

Certification
CE FCC RoHS

Package Contents
TL-SG2008P
Power Adapter
Installation Guide
Rubber Feet

System Requirements
Microsoft Windows 98SE NT 2000 XP Vista or Windows 7/8/10 MAC OS NetWare UNIX or Linux.

Environment
Operating Temperature: 0–40 ? (32–104 ?);
Storage Temperature: -40–70 ? (-40–158 ?)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
