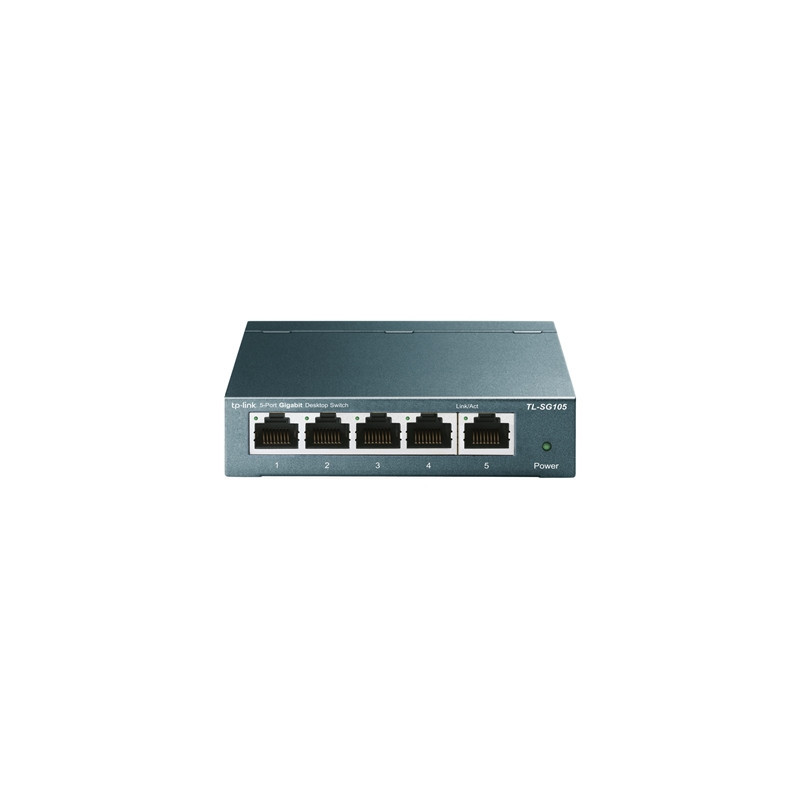

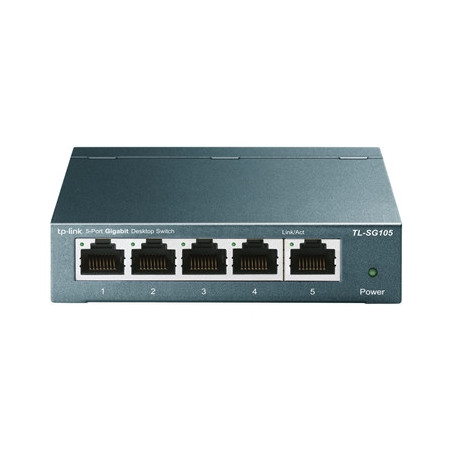

TP-Link TL-SG105 5-Port 10/100/1000Mbps Metal Gigabit Desktop Switch
£19.67
VAT included
TP-Link TL-SG105 5-Port 10/100/1000Mbps Metal Gigabit Desktop Switch
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Conveniently Conduct Business
The TL-SG105 Desktop Switch provides an easy way to increase the speed of your network server and backbone connections. Whether you are at home or in the office the TL-SG105 helps you deal with your business quickly and easily any time.
Plug and Play No Configuration Required
A plug-and-play design makes for easy deployment no technician needed. Auto-negotiation on each port senses the link speed of a network device and intelligently adjusts to ensure full compatibility and optimal performance.
Five Gigabit Ports for Faster Speeds
Increase the speed of your network with the TL-SG105 5-port Gigabit desktop switch. 5 non-blocking 10/100/1000 Mbps ports enable instant transferring of large bandwidth intensive files without interference.
Key Features
5x 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Plug and play no configuration needed
Supports 802.1p/DSCP QoS and IGMP Snooping functions
Durable metal casing desktop/wall-mounting options and a fanless design
IEEE 802.3x flow control provides reliable data transfer
Green Ethernet technology reduces power consumption
Specifications
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i/802.3u/ 802.3ab/802.3x IEEE 802.1p
Interface
5x 10/100/1000 Mbps Auto-Negotiation Auto-MDI/MDIX Ports
Fan Quantity
Fanless
External Power Supply
External Power Adapter (Output: 5 V DC / 0.6A)
LED Indicator
System Power
Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H )
3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)
Max Power Consumption
2.3 W (220 V/ 50 Hz)
Max Heat Dissipation
7.83 BTU/h
PERFORMANCE
Packet Forwarding Rate
7.4 Mpps
MAC Address Table
2K
Packet Buffer Memory
1 Mb
Jumbo Frame
16 KB
SOFTWARE FEATURES
Advanced Features
Green Technology
802.3X Flow Control
802.1P/DSCP QoS (for V2 and later version)
IGMP Snooping
Transfer Method
Store and Forward
OTHERS
Certification
CE FCC RoHS
Package Contents
5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Environment
Operating Temperature: 0 – 40
Storage Temperature: -40 – 70
Operating Humidity: 10 – 90% RH non-condensing
Storage Humidity: 5 – 90% RH non-condensing
The TL-SG105 Desktop Switch provides an easy way to increase the speed of your network server and backbone connections. Whether you are at home or in the office the TL-SG105 helps you deal with your business quickly and easily any time.
Plug and Play No Configuration Required
A plug-and-play design makes for easy deployment no technician needed. Auto-negotiation on each port senses the link speed of a network device and intelligently adjusts to ensure full compatibility and optimal performance.
Five Gigabit Ports for Faster Speeds
Increase the speed of your network with the TL-SG105 5-port Gigabit desktop switch. 5 non-blocking 10/100/1000 Mbps ports enable instant transferring of large bandwidth intensive files without interference.
Key Features
5x 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Plug and play no configuration needed
Supports 802.1p/DSCP QoS and IGMP Snooping functions
Durable metal casing desktop/wall-mounting options and a fanless design
IEEE 802.3x flow control provides reliable data transfer
Green Ethernet technology reduces power consumption
Specifications
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i/802.3u/ 802.3ab/802.3x IEEE 802.1p
Interface
5x 10/100/1000 Mbps Auto-Negotiation Auto-MDI/MDIX Ports
Fan Quantity
Fanless
External Power Supply
External Power Adapter (Output: 5 V DC / 0.6A)
LED Indicator
System Power
Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H )
3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)
Max Power Consumption
2.3 W (220 V/ 50 Hz)
Max Heat Dissipation
7.83 BTU/h
PERFORMANCE
Packet Forwarding Rate
7.4 Mpps
MAC Address Table
2K
Packet Buffer Memory
1 Mb
Jumbo Frame
16 KB
SOFTWARE FEATURES
Advanced Features
Green Technology
802.3X Flow Control
802.1P/DSCP QoS (for V2 and later version)
IGMP Snooping
Transfer Method
Store and Forward
OTHERS
Certification
CE FCC RoHS
Package Contents
5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide
Environment
Operating Temperature: 0 – 40
Storage Temperature: -40 – 70
Operating Humidity: 10 – 90% RH non-condensing
Storage Humidity: 5 – 90% RH non-condensing
NPTPL-TLSG105-TL01
