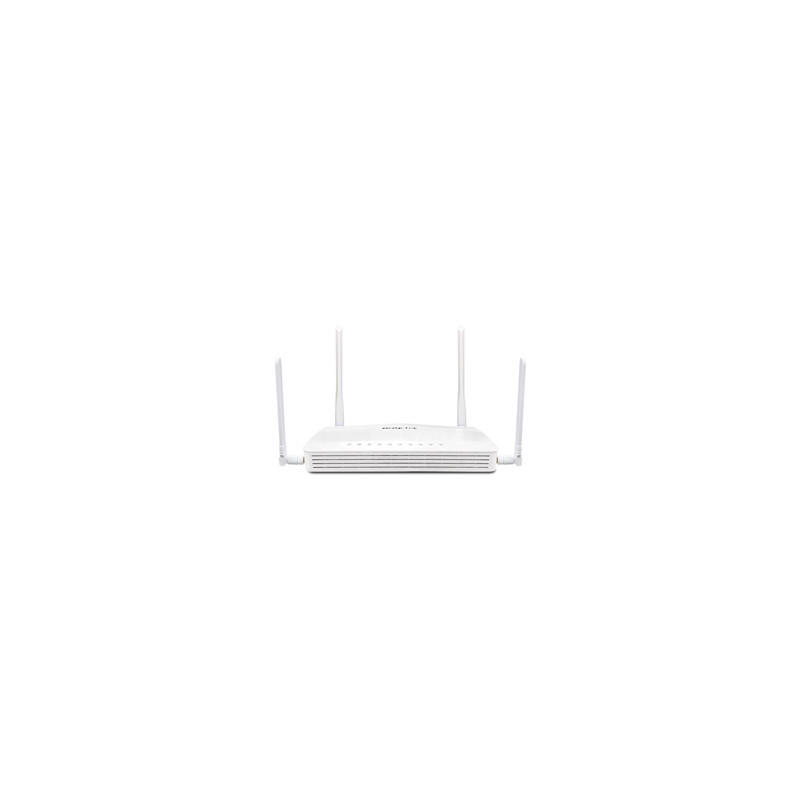

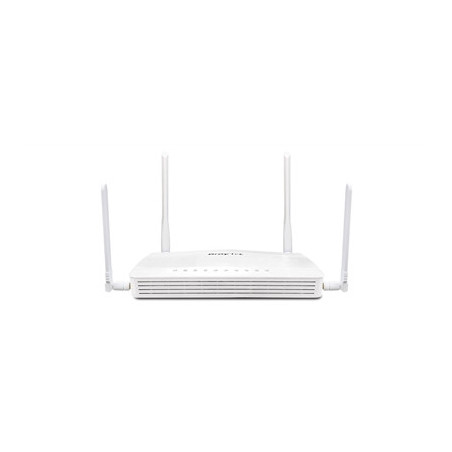

DrayTek VC510AX-K Vigor C510ax 5G Mobile Broadband Wireless AX3000 SOHO Ethernet Router
£525.82
VAT included
DrayTek VC510AX-K Vigor C510ax 5G Mobile Broadband Wireless AX3000 SOHO Ethernet Router
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The Ideal Branch-Office 5G Networking Gateway. The DrayTek Vigor C510ax is a low-cost firewall VPN router with the 5G/4G
mobile Internet connection method. In addition it can use any one of the three methods for its primary WAN (Internet)
connectivity falling back to one of the others in case of service interruption. It has a Dual-SIM cellular 5G/4G modem
Ethernet (RJ45 – which can connect to many other WAN delivery sources) and wireless WAN (‘ax’ models can fall back to a
wireless hotspot such as phone’s tethering a web café someone else’s office etc.).
The Wi-Fi 6 module can provide Internet access and support local wireless LAN at the same time. The Vigor C510ax routers
also offer extensive Firewall features Content Filtering VPN client/server and Quality of Service controls. The latest DrayTek
DrayOS 5 system enhance security-focused capabilities of the router.
Key Features
Multi-WAN Router with Failover
5G / 4G built-in modem with dual SIM slot for second backup telco
1x Gigabit Ethernet WAN (RJ45)
1x Gigabit Ethernet WAN (RJ45) / LAN switchable
3x Gigabit RJ-45 LAN Ports
Wireless WAN backup (‘ax’ models)
Up to 940Mbps Firewall Throughput
Up to 370Mbps IPsec VPN Throughput
4x LAN-to-LAN & Remote Teleworker VPN Tunnels
AX3000 – Wi-Fi 6 Dual Band Wireless
4 LAN Subnets with VLANs (Port-based / 802.1q)
SPI Firewall and Content Filtering
Optional VigorCare Available
Compatible with VigorACS central management platform
Technical Specification (UK Hardware Spec.)
Physical Interfaces
WAN Ports: 1x Gigabit Ethernet (1G/100M/10M) RJ-45
WAN/LAN Switchable Port: 1x Gigabit Ethernet (1G/100M/10M)
RJ-45
LAN Ports: 3x Gigabit Ethernet (1G/100M/10M) RJ-45
2x Removable Wireless LAN antennas
2x Removable 5G Cellular antennas
Wireless On / Off / WPS button
Recessed Factory Reset button
SIM Slot: 2x Nano-SIM (1 Active SIM)
Performance
NAT Performance:
Up to 940 Mb/s NAT Throughput
50 000 NAT Sessions
VPN Performance:
370 Mb/s IPsec VPN Performance
Max. 4 Concurrent VPN Tunnels
WAN Interfaces
WAN1: Gigabit Ethernet
WAN2: Gigabit Ethernet (LAN switchable)
WAN3: 2.4GHz Wireless WAN
WAN4: 5GHz Wireless WAN
WAN5: Integrated 5G/4G Modem
Internet Connection
Hardware Acceleration (Always On)
802.1p/q Multi-VLAN Tagging
Multi-VLAN/PVC
2.4GHz or 5GHz Wireless WAN
WAN Active on Demand: Link Failure Traffic Threshold
Connection Detection: ARP Detect Ping Detect
WAN Data Budget
Dynamic DNS
DrayDDNS – with automated LetsEncrypt Certificates
IPv4 Connection Types: PPPoE DHCP Static IP
IPv6 Connection Types:
Ethernet: PPP DHCPv6 Static IPv6 TSPC 6rd 6in4 Static Tunnel
Wireless Features
AX3000 Wi-Fi 6 Wireless:
802.11ax 2x2 wireless access point
Compatible with 802.11a/b/g/n/ac wireless
Dual-band (2.4/5Ghz) simultaneous wireless
Up to 2402Mbps PHY rate at 160MHz with 5GHz
Up to 574Mbps PHY rate at 40MHz with 2.4GHz
Channel Bandwidth: 20/40MHz for 2.4GHz 20/40/80/160MHz for 5GHz
OFDMA
MU-MIMO
Tx Beamforming
1024-QAM
Mesh Root support with DrayTek VigorAP Mesh Nodes^
Up to 8 SSIDs per radio band
Extended 5Ghz Band - Channels 36-48 52-64 100-140
Wireless Optimisation: Assisted Client Roaming Band Steering
WMM (Wireless MultiMedia)
WPS - WiFi Protected Setup
Wireless Security
OWE
WEP
WPA
WPA2/WPA
WPA3
Pre-Shared Key authentication
Enterprise 802.1x authentication
Identity Access Policies (MAC address Login Guest Hotspot)
Antenna Specifications
Wireless LAN Antennas:
2x External Dipole
5GHz Gain: 2.8 dBi
2.4GHz Gain: 2.1 dBi
RP-SMA fitting antenna connectors
5G/4G Cellular Antennas:
2x External Dipole
2x Internal PIFA
Gain: 4 dBi
SMA fitting antenna connectors
Integrated 5G Modem Features
Dual-SIM Failover
5G Modem / LTE Category 19 Modem
Unlocked to any network (EE 3 O2 Vodafone Eircom)
5G Max Data Rates:
Please note that the maximum real-world throughput speed
is estimated to be approximately 600Mbps. Below are the
theoretical maximum data link rates for 5G New Radio Standalone
(NR SA) and 5G New Radio Non-standalone (NR NSA) for the
device.
5G NR SA
2.4Gbps Downlink
900Mbps Uplink
5G NR NSA
3.4Gbps Downlink
550Mbps Uplink
5G NR Sub-6 SA Bands: 1 3 7 8 20 28 38 40 77 78
5G NR Sub-6 NSA Bands: 1 3 7 8 20 28 38 40 77 78
4G LTE (FDD) Bands: 1 3 7 8 20 28
4G LTE (TDD) Bands: 38 40
3G (WCDMA) Bands: 1 8
2x Internal 4G/5G PIFA Antennas
2x External 4G/5G Antennas included
Per-SIM-Card WAN Data Budget
2x Nano-Size SIM-Card Slots
Removable SIM slot cover
SMS Inbox - Send & Receive SMS text messages
Firewall & Content Filtering
IP-based Firewall Policy
DoS Attack Defence
Spoofing Defence
Content Filtering:
Application Content Filter
URL Content Filter
DNS Keyword Filter
Web Features
Web Category Filter*
NAT Features
NAT Port Redirection
Open Ports
Port Triggering
DMZ Host
UPnP
ALG (Application Layer Gateway): SIP RTSP
LAN Management
802.1q Tag-based Port-based VLAN
Up to 4 LAN Subnets (NAT or Routing mode selectable per LANinterface)
Up to 8 VLANs
DHCP Server:
Multiple IP Subnet
Custom DHCP Options
Bind-IP-to-MAC
DHCP Pool Count up to 253 addresses for LANs 1-4
DHCP Relay per LAN
Wired 802.1x Port Authentication
Local DNS Server
Conditional DNS Forwarding
Hotspot Web Portal
Hotspot Authentication: Click-Through External Portal Server
Networking Features
Policy-based Routing: Protocol IP Address Port
DNS Security (DNSSEC)
Local RADIUS server
Multicast: IGMP Proxy IGMP Snooping & Fast Leave
Routing Features: IPv4 & IPv6 Static Routing Inter-VLAN
Routing RIP v1/v2/ng BGP OSPF
VPN Features
Up to 4 active VPN tunnels
Up to 370Mb/s IPsec
LAN-to-LAN - Dial-In VPN Server & Dial-Out VPN Client
Teleworker-to-LAN – Dial-In VPN Server
User Authentication: Local RADIUS TACACS+ mOTP TOTP
KE Authentication: Pre-Shared Key and Digital Signature (X.509)
Encryption: DES 3DES AES (128/192/256)
Authentication: SHA-256 SHA-1
Dead Peer Detection (DPD)
IPsec NAT-Traversal (NAT-T)
VPN Protocols:
IPsec IKEv1 IKEv2 IKEv2 EAP
IPsec-XAuth
OpenVPN
WireGuard
Bandwidth Management
IP-based Bandwidth Limit
IP-based Session Limit
QoS (Quality of Service):
4 Priority Queues
App QoS
VoIP Prioritization
Management
Local Service: HTTP HTTPS Telnet SSH FTP TR-069
Config File Export & Import
Firmware Upgrade via TFTP HTTP TR-069
Access Control Features: Access List Brute Force Protection
Syslog
SMS E-mail Notification Alert
SNMP: v1 v2c v3
Managed by VigorACS
Router-based Central Management Features
AP Management: Up to 20 VigorAP access points
Switch Management: Up to 5 VigorSwitch network switches
DrayTek Mesh: Up to 7 VigorAP access points^
Operating Requirements
Power Requirements: 100-240VAC
Power Consumption (Watts maximum): 16W
Temperature Operating: 0 °C ~ 45 °C
Storage: -25 °C ~ 70 °C
Humidity 10% ~ 90% (non-condensing)
Operating Power: DC 12V @ 1.4A (via external PSU supplied)
Wall Mountable
Physical Specifications
Dimensions
207mm Width
131mm Depth
42mm Height
Weight: 840g
Box Contents
Vigor C510ax series router
Quick Start Guide
Cat-5e RJ-45 Network Cable
2x Detachable Wireless LAN Antennas
2x Detachable Cellular Antennas
DC 12V Power Supply with UK Plug
ROHS UKCA & CE Compliant
Warranty
Standard: Two (2) Year RTB
Software security updates:
5 years after the EOL notification. Please note that this only
applies to products sold in the UK
VigorCare Extended Warranty
VigorCare A3 3 Year Subscription: VCARE-A3
VigorCare A5 5 Year Subscription: VCARE-A5
