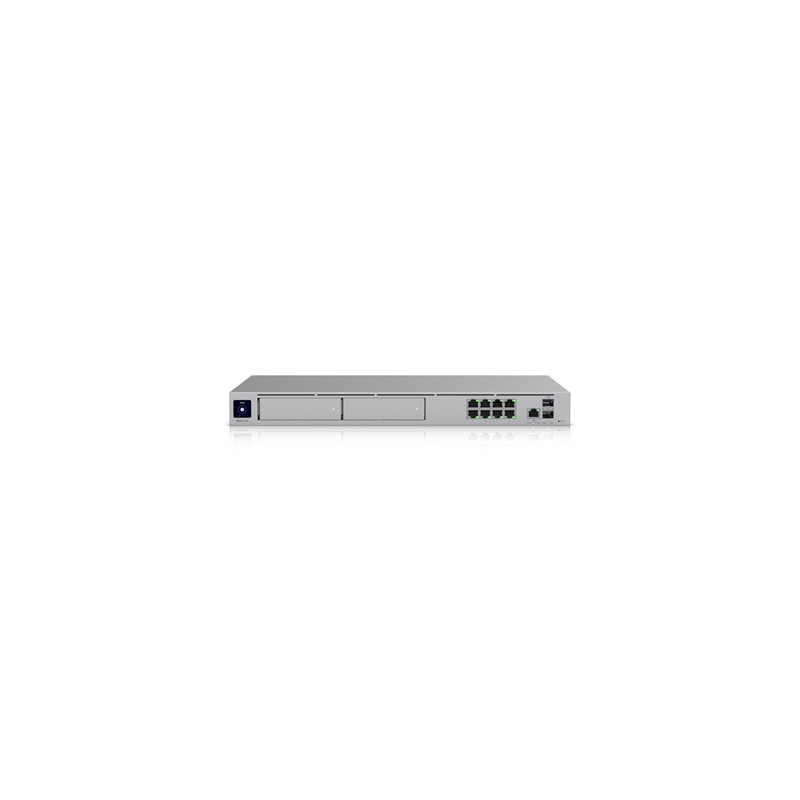

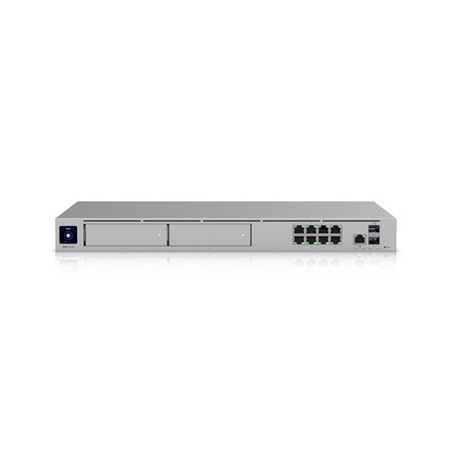

Ubiquiti UDM-PRO-MAX UniFi Dream Machine Pro Max - Combined Switch / Security Gateway / Controller / UniFi Protect NVR
£590.14
VAT included
Ubiquiti UDM-PRO-MAX UniFi Dream Machine Pro Max - Combined Switch / Security Gateway / Controller / UniFi Protect NVR
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
10G Cloud Gateway with 200+ UniFi device / 2 000+ client support 5 Gbps IPS routing and redundant NVR storage.
Enhanced computing power and memory for 2x the UniFi device and client capacity of Dream Machine Pro/SE
Includes full UniFi application suite for device management
5 Gbps routing with IDS/IPS
(1) 10G SFP+ (8) GbE RJ45 LAN ports
(1) 10G SFP+ (1) 2.5 GbE RJ45 WAN ports
(2) 3.5 NVR HDD bays with RAID data protection
Built-in 128 GB SSD for NVR detection recordings
UniFi Power Backup ready
1.3 touchscreen
Dimensions
442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2)
Weight
4.7kg
Enclosure Material
Aluminium CNC SGCC steel
Mount Material
SGCC steel
Processor
Quad-core ARM Cortex-A57 at 2.0 GHz
System Memory
8 GB DDR4
Onboard Storage
32 GB eMMC
Integrated 128 GB SSD
Management Interface
Ethernet
Bluetooth
Networking Interface
LAN:
(8) GbE RJ45 ports
(1) 10G SFP+ port
WAN:
(1) 2.5 GbE RJ45 port
(1) 10G SFP+ port
IDS/IPS Throughput
5 Gbps*
*Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation.
Power Method
(1) Universal AC input 100—240V AC 2A Max. 50/60 Hz
(1) USP-RPS DC input 11.5V DC 8.7A
Power Supply
AC/DC internal 100W
Supported Voltage Range
100—240V AC
Max Power Consumption
100W
Performance
Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application domain and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting
Next Generation Security
Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content country domain and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced Networking
License-free SD-WAN
WireGuard L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support
Enhanced computing power and memory for 2x the UniFi device and client capacity of Dream Machine Pro/SE
Includes full UniFi application suite for device management
5 Gbps routing with IDS/IPS
(1) 10G SFP+ (8) GbE RJ45 LAN ports
(1) 10G SFP+ (1) 2.5 GbE RJ45 WAN ports
(2) 3.5 NVR HDD bays with RAID data protection
Built-in 128 GB SSD for NVR detection recordings
UniFi Power Backup ready
1.3 touchscreen
Dimensions
442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2)
Weight
4.7kg
Enclosure Material
Aluminium CNC SGCC steel
Mount Material
SGCC steel
Processor
Quad-core ARM Cortex-A57 at 2.0 GHz
System Memory
8 GB DDR4
Onboard Storage
32 GB eMMC
Integrated 128 GB SSD
Management Interface
Ethernet
Bluetooth
Networking Interface
LAN:
(8) GbE RJ45 ports
(1) 10G SFP+ port
WAN:
(1) 2.5 GbE RJ45 port
(1) 10G SFP+ port
IDS/IPS Throughput
5 Gbps*
*Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation.
Power Method
(1) Universal AC input 100—240V AC 2A Max. 50/60 Hz
(1) USP-RPS DC input 11.5V DC 8.7A
Power Supply
AC/DC internal 100W
Supported Voltage Range
100—240V AC
Max Power Consumption
100W
Performance
Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application domain and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting
Next Generation Security
Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content country domain and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced Networking
License-free SD-WAN
WireGuard L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support
