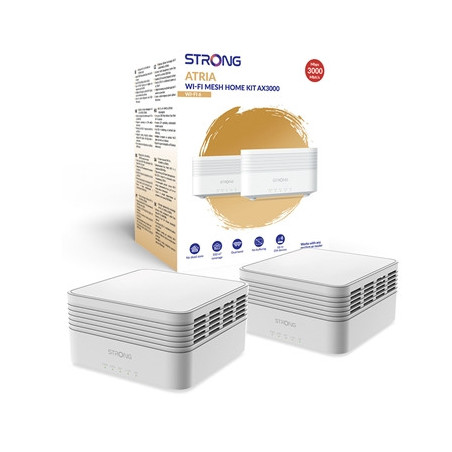

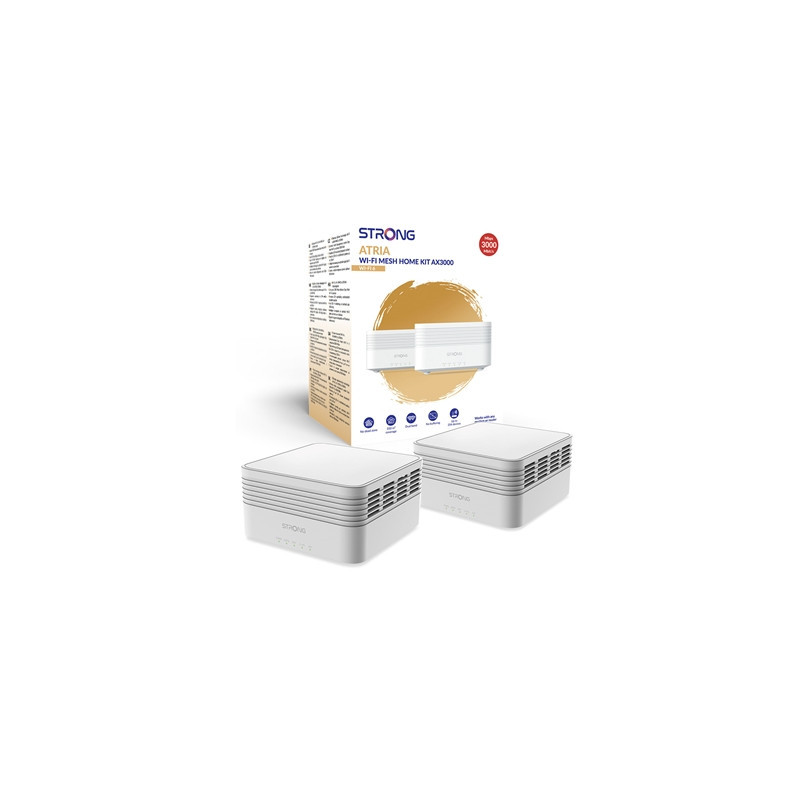

Strong MESHKITAX3000UK AX3000 Whole Home Wi-Fi 6 Mesh System (2 Pack) - 3 300sq.ft Coverage

Using state-of-the-art Easy Mesh solution STRONG’s Wi-Fi Mesh Home Kit AX3000 combines Mesh technology with powerful Wi-Fi 6 MU-MIMO and OFDMA technologies for ultimate speed and coverage at home. Atria Meshkit AX3000 is the perfect solution to manage the fast-growing numbers of Wi-Fi devices at your home. This package of 2 ATRIA Mesh AX3000 replaces your current Wi-Fi network without changing your modem or router. It brings a super-fast and seamless roaming Wi-Fi network at a speed up to 3000 Mbit/s with coverage up to 350 m². Depending on the size of your house you can add up to 4x additional ATRIA Mesh AX3000 (up to 6x ATRIA Mesh AX3000 cover an area of up to 1050 m²). Manage your Wi-Fi Mesh network at a finger touch with the ATRIA Mesh App available for Android and iOS devices.

Technical specifications

WIFI

Frequency
2412 MHz-2462 MHz & 5180 MHz-5240 MHz & 5250 MHz-5350 MHz & 5470 MHz-5580 MHz

Standards
Wi-Fi 6 - IEEE 802.11ax/ac/n/g/b/a

Signal Rate
5 GHz: Up to 2402 Mbps
2.4 GHz: Up to 574 Mbps

Security
WPA™/WPA-PSK™ & WPA2™/ WPA2-PSK™ & WPA3- SAE™

Antenna
4* Internal Antennas (3dBi)

Transmit Power
Europe:<20 dBm (2.4 GHz) <23 dBm (5 GHz)

Supported Channels
5 GHz: 36 40 44 48 52 56 60 64 100 104 108 112
2.4 GHz: 1 2 3 4 5 6 7 8 9 10 11 12 13

HARDWARE

CPU
Dual-core CPU 900MHz

Ethernet Ports
2x 10/100/1000M LAN ports (Auto MDI/MDIX)
1x 10/100/1000M WAN ports (Auto MDI/MDIX)

Buttons
Connect & Secure (WPS) Reset ON/OFF button

LEDs
Power Internet Pairing 2.4 GHz and 5 GHz Wi-Fi

Power
External power supply 12 V/2 A DC

Standards
IEEE 802.3 IEEE 802.3u IEEE 802.3ab

SOFTWARE

Multiple SSID
4x2.4 GHz + 4x 5 GHz

Basic Network
DHCP client IGMP v1/v2 IPv4/v6 WDS WPS WMM

Router Features
DHCP server DNS relay/proxy NAT/NAPT IGMP proxy Firewall VPN passthrough DMZ URL/IP/MAC Filtering Port Forwarding

UPnP
Universal Plug & Play Internet Gateway Device

Management
TR069/TR098/TR181 Web User Interface Time Settings Configuration Backup/Restore Firmware Upgrade System Log

ATRIA Mesh app
Android and iOS downloadable app to manage the Wi-Fi Mesh network

Easy Mesh Network
Automatically Organized Network
Intelligent Roaming (client band steering)
Auto Configuration
Seamless Roaming
Auto MESH Routing
User Load Balancing
Auto Healing (Redundancy and Fail-over)

OTHER SPECIFICATIONS

Certification
CE

Package contents
2x ATRIA Mesh AX3000
2x Power Supply Units (12 V/2 A DC)
1x CAT5E Ethernet Cable
1x Installation Instructions Warranty Card Safety Instructions

System requirements
Internet Browser

ENVIRONMENT

Operating Temperature
0° C ~ +45° C

Storage temperature
-20° C~+70° C

Operating humidity
10%~90% non-condensing

Storage humidity
0%~90% non-condensing

Dimensions (WxDxH) per unit
12812873 mm

Weight per unit
320 g
