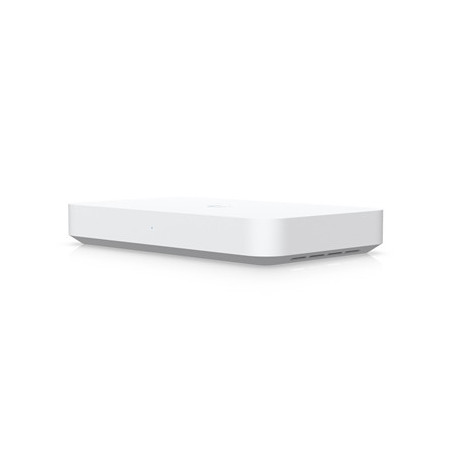

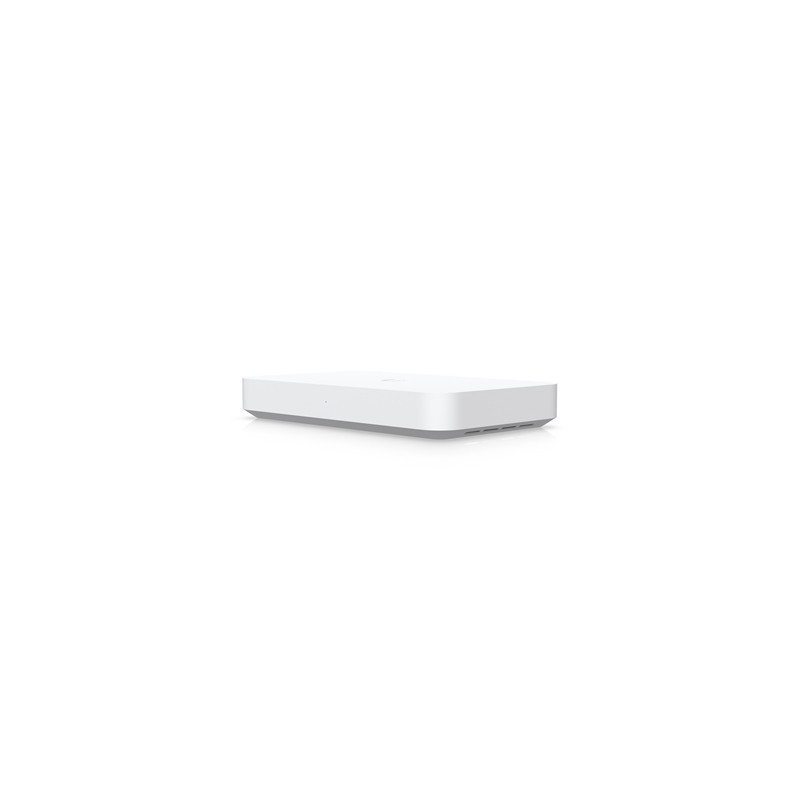

Ubiquiti UXG-FIBER UniFi Gateway Fiber 10G Independent Gateway Router with 2.5 GBE Switch

Desktop 10G independent gateway with integrated 4-port 2.5 GbE switch.

Managed with a CloudKey Official UniFi Hosting or UniFi Network Server
5 Gbps routing with IDS/IPS
(1) 10G SFP+ and (1) 10 GbE RJ45 WAN port
(1) 10G SFP+ LAN port
Integrated 4-port switch with (1) PoE+ port

Dimensions
212.8 x 127.6 x 30 mm
(8.4 x 5 x 1.2)

Default WAN Ports
(1) 10G SFP+
(1) 10 GbE RJ45

LAN Ports
(1) 10G SFP+
(4) 2.5 GbE RJ45

IDS/IPS Throughput
5 Gbps

Form Factor
Compact desktop

Stateful Firewall
Yes

Application-Aware Layer 7 Firewall
Yes

DPI and Traffic Identification
Yes

Zone-Based Firewall Advanced Filtering (Regions Domains Apps)
Yes

Content Filtering
Yes

Intrusion Prevention (IPS/IDS)
Yes

Ad Blocking
Yes

IDS/IPS Signatures
55 000+ With CyberSecure

License-Free SD-WAN
Yes

Site to Site VPN
Site Magic
Yes

IPsec
Yes

OpenVPN
Yes

VPN Server
Teleport Zero-Configuration VPN
Yes

WireGuard
Yes

OpenVPN
Yes

L2TP
Yes

VPN Client
OpenVPN
Yes

WireGuard
Yes

Multi-WAN Load Balancing
Yes

Dynamic Routing - OSPF
Yes

Advanced QoS
Yes

Multicast DNS (mDNS)
Yes

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Yes

Integrated RADIUS Server
Yes

RADIUS over TLS (RadSec)
Yes

Additional Internet Failover with UniFi LTE Backup
Yes

Internet Quality and Outage Reporting
Yes

MAC Address Table Size
4000

PoE Budget
30W

Voltage Range PoE Mode
50—57V

Max. Power Consumption
25W (Excluding PoE output)

Power Method
DC jack (54V DC/1.1A)

Power Supply
54V DC/1.1A
(Adapter included)

Supported Voltage Range
100—240V AC

Processor
Quad-core ARM Cortex-A73 at 2.2 GHz

System Memory
2 GB

Weight
605 g (1.3 lb)

Enclosure Material
Polycarbonate

Management
Ethernet
Bluetooth

System LEDs
Ethernet
SFP+
System

Certifications
CE FCC IC
