Ubiquiti UC-Display UniFi Connect 21.5“ Full HD PoE++ Powered Touchscreen Monitor and Digital Signage

Ubiquiti UniFi Connect 21.5 Full HD PoE++ Touchscreen - UC-Display

Key Features
Ultra-bright 21.5 touch display
Display media web pages and Android apps with UniFi Connect
Included VESA mount adapter
Multiple mounting options
PoE++ in

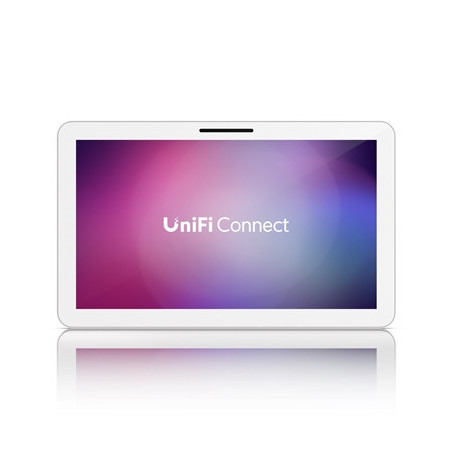

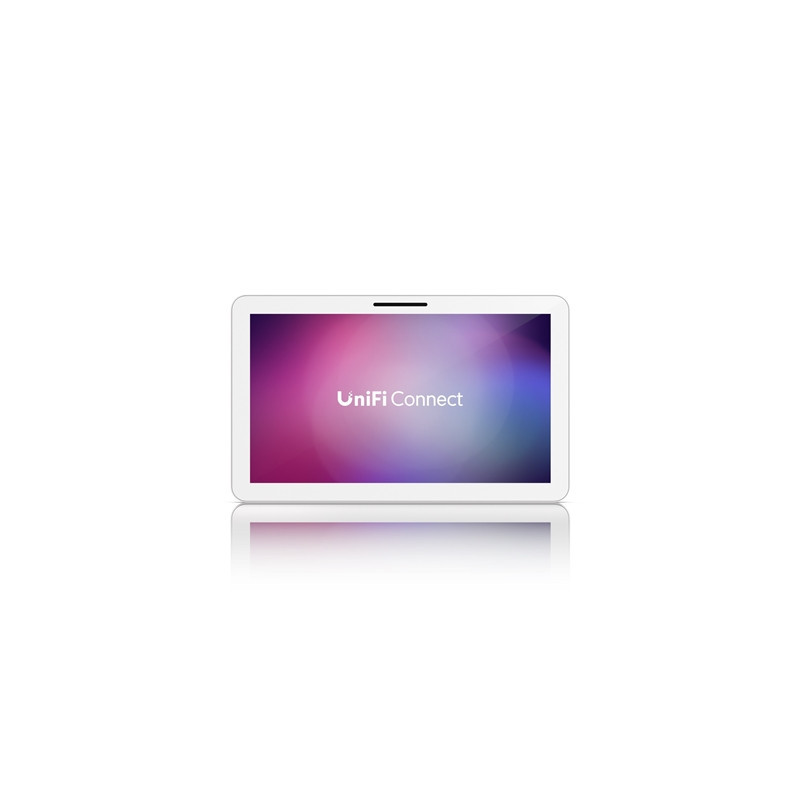

The Ubiquiti UniFi Connect Display (UC-Display) is a 21.5 Full HD PoE++ touchscreen designed for UniFi Connect.

UniFi Connect Display features an ultra-bright touch display capable of displaying media web pages and Android apps.

The UC-Display offers multiple mounting options including a VESA mount adapter (included) and is powered by PoE++.

The UC-Display is an ideal solution for a range of professional UniFi applications.

Specifications

Mechanical

Weight & Dimensions
538.3 x 330 x 37 mm (21.2 x 13 x 1.5)
4.9 kg (10.8 lb)

Enclosure material
Plastic aluminum

Mounting
VESA mount adapter (included)
Table stand (optional)
Surface mount (optional)
Arm mount (optional)
Flush mount (optional)

Hardware

Display size
546 mm (21.5) diagonal

Resolution
1920 x 1080 FHD (16:9)

Display luminance
250 nits (typical)

Touch screen technology
Capacitive multi-touch

Screen orientation
Portrait/landscape

Processor
Octa-core ARM Cortex-A53 at 2.2 GHz

Memory Storage
32 GB

RAM
3 GB

Power input
PoE++

Power supply
UniFi PoE++ switch

Max. power consumption
27W

Connectivity
(1) GbE RJ45 port
(1) USB-C port (Reserved feature for future function update)
Bluetooth 4.2

Button
Factory reset

Microphone
Yes

Speaker
Yes

Operating temperature
0 to 40° C (32 to 104° F)

Operating humidity
20 to 90% noncondensing

Certifications
CE FCC IC

Software

Management application
UniFi Connect web: Version 2.1.14 and later
UniFi Connect iOS and Android: Version 1.0.0 and later
