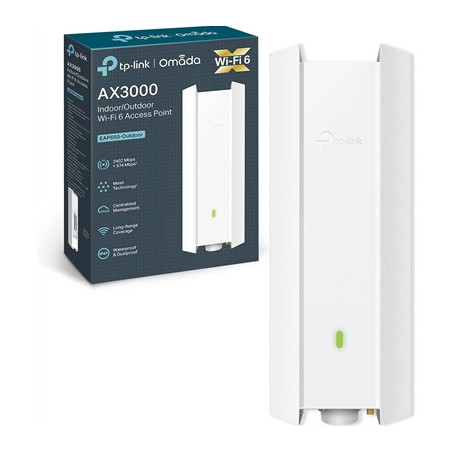

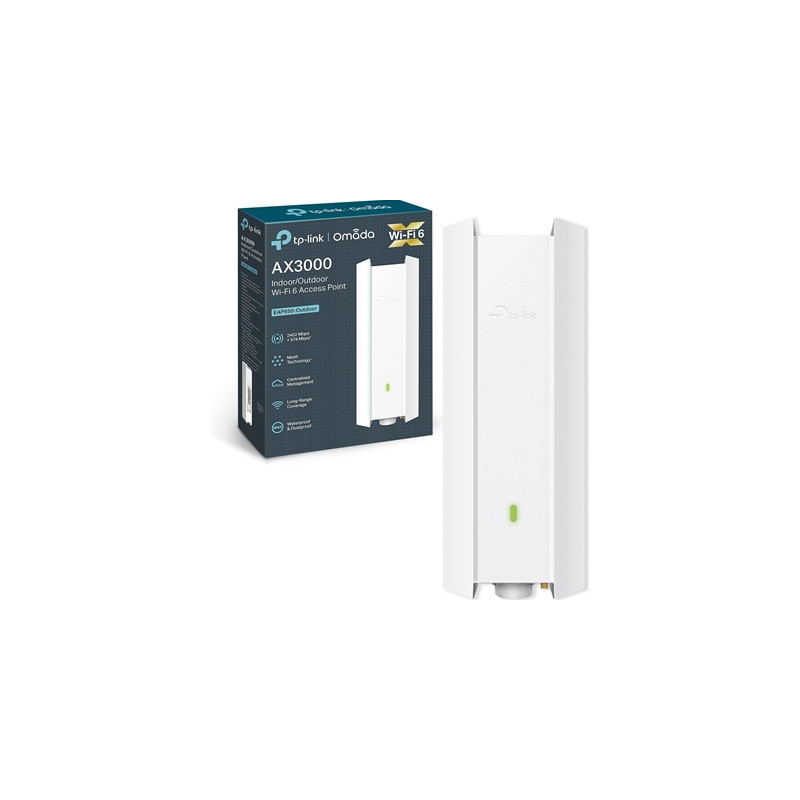

TP-Link Omada EAP650-Outdoor AX3000 Indoor/Outdoor WiFi 6 Access Point

Superior WiFi 6 Speeds
Delivers dual band speeds of up to 3 Gbps powered by the latest WiFi 6 technology.

Higher Network Efficiency
Enjoy faster speeds on more devices with less lag with OFDMA and MU-MIMO.

160 MHz Bandwidth Channel
Double the data at peak transmission times on a single stream with HE160.

Long-Range Coverage
Dedicated high-power amplifier and professional antennas with an IP67 weatherproof enclosure.

Omada Mesh Technology
Enables wireless connectivity between access points for extended range and flexible deployment.

Stay Smooth with Seamless Roaming
Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points.

PoE Powered
Supports both 802.3at PoE+ and Passive PoE (adapter included) power supply for flexible installation.

Centralized Cloud Management
Omada SDN integration manages the whole network locally or from the cloud via web UI or the Omada app.

Experience the Peak of WiFi 6 with Smart Antennas
TP-Link Smart Antenna technology brings lower interference longer coverage and higher performance. EAP650-Outdoor is equipped with horizontally polarized antennas and vertically polarized antennas while its intelligent algorithms automatically select the optimal antennas to ensure the peak WiFi experience ideal for outdoor applications.

Specifications

Interface
1x Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)

Button
Reset

Power Supply
802.3at PoE
48V Passive PoE (PoE Adapter Included)

Power Consumption
12.5W (802.3at PoE or Passive PoE)

Dimensions
280.4 x 106.5 x 56.8 mm (without antenna & mounting kit)

Antenna
2.4 GHz: 2x 4 dBi
5 GHz: 2x 5 dBi

Weatherproof Enclosure
IP67

Mounting
Pole/Wall Mounting (Kits included)

Wireless Client Capacity
250+

Concurrent Clients
250+

Wireless Standards
IEEE 802.11ax/ac/n/g/b/a

Frequency
2.4 GHz 5 GHz

Signal Rate
802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11 NSS = 1 to 2 HE20/40/80)
802.11ac: 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9 NSS = 1 to 2 VHT20/40/80)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15 HT20/40)
802.11g: 6 9 12 18 24 36 48 54 Mbps
802.11b: 1 2 5.5 11 Mbps
802.11a: 6 9 12 18 24 36 48 54 Mbps

Transmit Power
<20 dBm (2.4 GHz EIRP) <30 dBm(5 GHz EIRP)

Wireless Functions
1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS (WMM)
MU-MIMO
Omada Mesh
Seamless Roaming
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client

Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WEP WPA-Personal/Enterprise WPA2-Personal/Enterprise WPA3-Personal/Enterprise

Omada App
Yes

Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller

Cloud Access
Yes through
Omada Cloud-Based Controller
OC300
OC200
Omada Software Controller

Email Alerts
Yes

Management MAC Access Control
Yes

SNMP
v1 v2c

System Logging Local/Remote Syslog
Yes

SSH
Yes

Web-Based Management
Yes

L3 Management
Yes

Multi-Site Management
Yes

Management VLAN
Yes

Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller

Certification
CE FCC RoHS

Package Contents
Access Point EAP650-Outdoor
Passive PoE Adapter
Power Cord
Mounting Kits
Installation Guide
