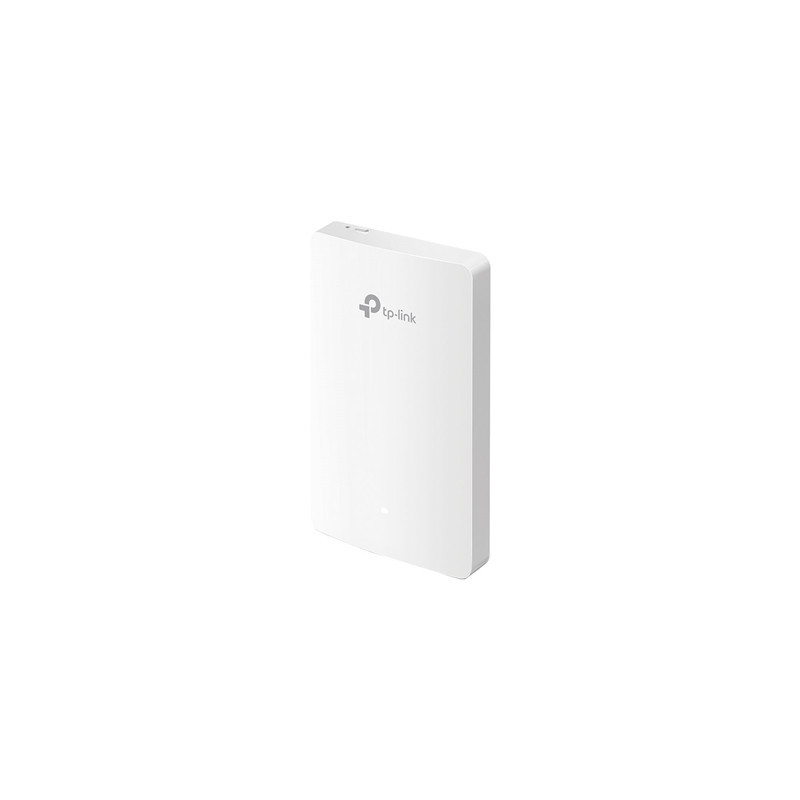

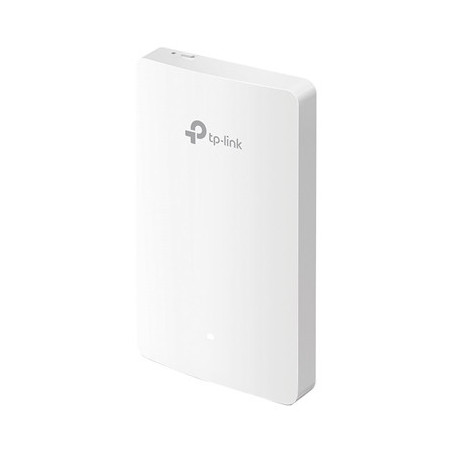

TP-Link Omada EAP615-Wall AX1800 Wall Plate WiFi 6 Access Point

AX1800 Wall Plate WiFi 6 Access Point

Key Features
Superior WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
High-Performance Connectivity: Guarantee higher network efficiency and lower latency.
Four Gigabit Ports: 4 Gigabit Ethernet ports (1 x uplink + 3 x downlink) with one downlink port supporting PoE pass-through to provide power for wired device.
Centralized Management: Integrates into Omada SDN for cloud access and remote management.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher etc.) and abundant wireless security technologies.
Easy Installation and PoE Support: Easy-to-install design compatible with 86 mm & EU & US standard junction box and 802.3af/at PoE support.

Easy-Mount Design
The Ceiling Mount EAP's elegant appearance and easy-mount design promote fast installation on any wall or ceiling surface and allow it to blend in seamlessly with most interior decorating styles. The slimline inconspicuous Wall Plate EAP can be easily installed into any standard EU/US wall junction box or 86mm wall junction box.

PoE Power Supply
With IEEE 802.3af/at PoE or Passive PoE you can use Ethernet cables to transfer both electrical power and network data making deployment more flexible and removing the need to install additional power cabling.


Business-Class Hardware Design
Enterprise-class chipsets offer outstanding performance and support longer running time higher client capacity and greater range. Dedicated high-power amplifiers specialised antennas and professionally designed RF shields ensure excellent wireless performance.

Advanced RF Management
MU-MIMO Airtime Fairness Beamforming and Band Steering Technologies guarantee optimal RF performance for business-level applications.


Easy Centralized Management
Configure and monitor hundreds of Omada EAPs with ease using the Omada controller.

- Speed: 2.4 GHz: 2*2 11ax 574Mbps. 5 GHz: 2*2 11ax 1201Mbps.
- Ethernet Port: 4 x Gigabit Ethernet Port.
- Power Supply: 802.3af/at PoE.

Specifications

Model
EAP615-Wall

Device Type
Wireless Access Point

Network Connectivity
10/100/1000

Network Ports
4 x RJ45 10/100/1000 (Gigabit) BaseT for LAN

Total LAN Connections
4

Wireless Protocols
IEEE 802.11a
IEEE 802.11ac
IEEE 802.11ax
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n

Wireless Band
Dual Band

Frequency
2.4 GHz
5 GHz

Wireless Transmitter Power
< 20 dBm (2.4 GHz EIRP); < 23 dBm (5 GHz EIRP)

Antenna
2.4 GHz: 2 x 3 dBi; 5 GHz: 2 x 4 dBi

Max. Power Consumption
10 W

PSU Type
Internal

Dimensions
143 x 20 x 86 mm (WxHxD)
