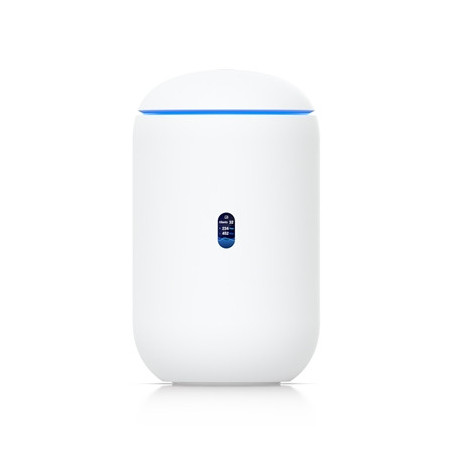

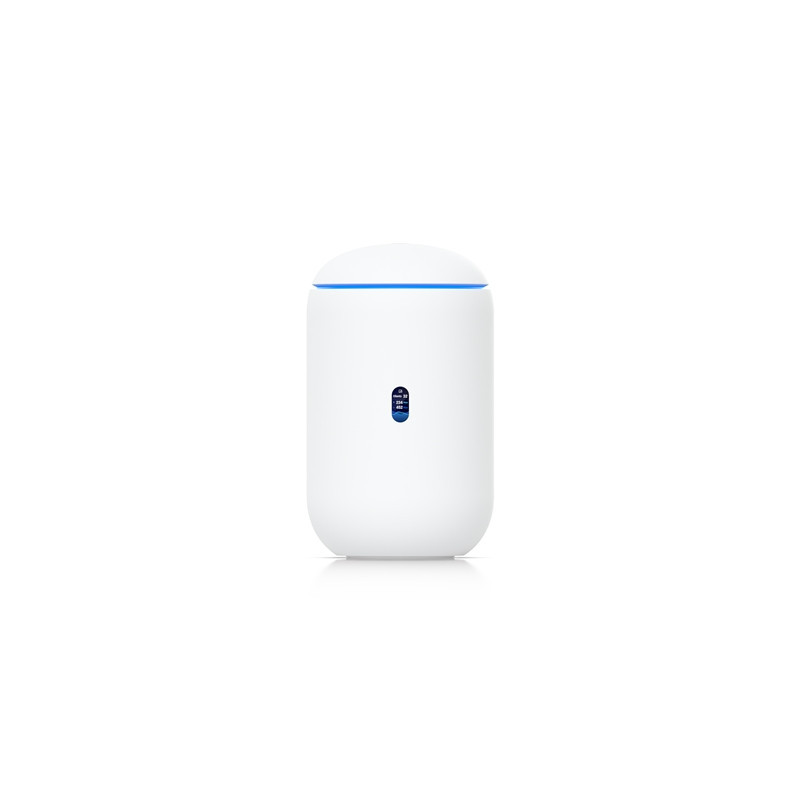

Ubiquiti UDR7 UniFi Dream Router 7 Combined 2.5 GBE Switch NVR Router WiFi 7 Access Point and Gateway

Desktop 10G Cloud Gateway with integrated WiFi 7 PoE switch microSD storage and full UniFi application support.

Dimensions
d110 x 184.1 mm
(d4.3 x 7.3)

UniFi Application Suite
Network
Yes

Protect
Yes

Access
Yes

Talk
Yes

Connect
Yes

Managed UniFi Devices
30+

Managed Cameras
(5) HD
(2) 2K
(1) 4K

Simultaneous Users Connected
300+

Default WAN Ports
(1) 10G SFP+
(1) 2.5 GbE RJ45

LAN Ports
(3) 2.5 GbE RJ45 including (1) PoE

IDS/IPS Throughput
2.3 Gbps

Form Factor
Compact desktop

Stateful Firewall
Yes

Application-Aware Layer 7 Firewall
Yes

DPI and Traffic Identification
Yes

Zone-Based Firewall Advanced Filtering (Regions Domains Apps)
Yes

Content Filtering
Yes

Intrusion Prevention (IPS/IDS)
Yes

Ad Blocking
Yes

IDS/IPS Signatures
20 000+ with CyberSecure

VLAN/Subnet-based Traffic Segmentation
Yes

License-Free SD-WAN
Yes

Site to Site VPN
Site Magic
Yes

IPsec
Yes

OpenVPN
Yes

VPN Server
Identity Endpoint One-Click VPN
Yes

Teleport Zero-Configuration VPN
Yes

WireGuard
Yes

OpenVPN
Yes

L2TP
Yes

VPN Client
OpenVPN
Yes

WireGuard
Yes

Multi-WAN Load Balancing
Yes

Dynamic Routing - OSPF
Yes

Advanced QoS
Yes

Multicast DNS (mDNS)
Yes

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Yes

Integrated RADIUS Server
Yes

RADIUS over TLS (RadSec)
Yes

Additional Internet Failover with UniFi LTE Backup
Yes

Internet Quality and Outage Reporting
Yes

MAC Address Table Size
2000

Policy-based WAN and VPN Routing
Yes

Customizable DHCP Server
Yes

IPv6 ISP Support
Yes

IGMP Proxy
Yes

WiFi Standard
802.11a/b/g/n/ac/ax/be (WiFi 6/6E WiFi 7)

Throughput
6 GHz
5.7 Gbps

5 GHz
4.3 Gbps

2.4 GHz
688 Mbps

MIMO
6 GHz
2 x 2 (DL/UL MU-MIMO)

5 GHz
2 x 2 (DL/UL MU-MIMO)

2.4 GHz
2 x 2 (DL/UL MU-MIMO)

Antenna Gain
6 GHz
6 dBi

5 GHz
7 dBi

2.4 GHz
5 dBi

Wireless Security
WPA-PSK WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

Max. BSSIDs
4 per Radio

Supported Data Rates
802.11a
6 9 12 18 24 36 48 54 Mbps

802.11b
1 2 5.5 11 Mbps

802.11g
6 9 12 18 24 36 48 54 Mbps

802.11n
6.5 Mbps to 600 Mbps (MCS0 - MCS31 HT 20/40)

802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4 VHT 20/40/80/160)

802.11ax (WiFi 6/6E)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2 HE 20/40/80/160)

802.11be (WiFi 7)
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2 EHT 20/40/80/160/240/320)

NVR Storage
Pre-installed 64GB microSD for NVR

Expansion Slot
MicroSD Card

PoE Budget
15.4W

Voltage Range POE Mode
44-57V

Max. Power Consumption
26W (Excluding PoE output)

Power Method
Universal AC input 100-240VAC 1.5A Max 50/60 Hz

Max. TX Power
6 GHz
24 dBm

5 GHz
26 dBm

2.4 GHz
23 dBm

Supported Voltage Range
100-240V AC

Processor
Quad-core ARM Cortex-A53 at 1.5 GHz

System Memory
3 GB

Weight
1.1 kg (2.4 lb)

Enclosure Material
Polycarbonate

LCM Display
0.96 status display

Management
Ethernet
Bluetooth

System LEDs
System

Certifications
CE FCC IC
