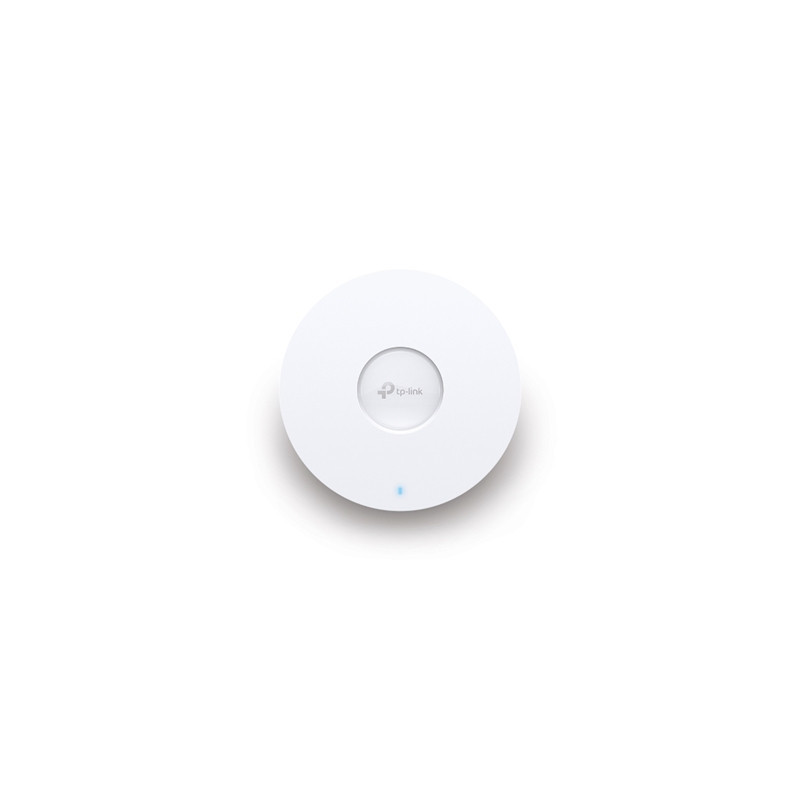

TP-Link Omada EAP653 AX3000 Ceiling Mount WiFi 6 Access Point

AX3000 Ceiling Mount WiFi 6 Access Point

Key Features
Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.
Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.
Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
PoE+ Powered: Supports both 802.3at PoE+ and DC (DC adapter sold separately) power supply for flexible installations.
Ultra-Slim Design: F160 mm x 33.6 mm elegant design brings more agility

Designed for Business Environments Requiring High-Performance WiFi
Hospitality - High-quality and full coverage Guest WiFi
Education - High-security WiFi to connect more devices
Shopping Mall - Seamless marketing WiFi coverage to boost business
Office - Stable seamless and high-security WiFi coverage
Meeting Room - Faster streaming downloading video conferencing and more

Power up Your Business with New-Era Business WiFi 6
WiFi 6 brings faster speeds lower lag less interference and higher capacity.

Lightning-Fast AX3000 WiFi 6 Speeds
New-era business WiFi 6 with speeds up to 2976 Mbps brings more than twice the speed of WiFi 5.† Every application feels more fluid with drastically improved WiFi speeds.

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points switches and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.

Auto Channel Selection and Power Adjustment to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

Easy Pairing Less Wiring
With Mesh technology Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

Always Stay Smooth with Fast Roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

Ultra-Slim Design Brings More Agility
Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP653 perfectly blend into any modern office hotel classroom or café.

Easy to Mount with Refined Industrial Design
1
Push up
2
Rotate to lock
Ceiling / Wall / Junction Box Mounting (Kits included)

Specifications

HARDWARE FEATURES

Interface
1 x Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)

Button
Reset

Power Supply
• 802.3at PoE
• 12V DC
(EU Version: 12 V / 1.0 A DC. US Version: 12 V / 1.5 A DC).
Note: DC adapter is not included in the package and is sold separately.

Power Consumption
• EU: 13.5 W
• US: 14.7 W

Dimensions ( W x D x H )
6.3 x 6.3 x 1.3 in (160 x 160 x 33.6 mm)

Antenna Type
Internal Omni
• 2.4 GHz: 2 x 4 dBi
• 5 GHz: 2 x 5 dBi

Mounting
• Ceiling /Wall Mounting (Kits included)
• Junction Box Mounting

WIRELESS FEATURES

Wireless Standards
IEEE 802.11ax/ac/n/g/b/a

Frequency
2.4 GHz and 5 GHz

Signal Rate
• 5 GHz: Up to 2402 Mbps
• 2.4 GHz: Up to 574 Mbps

Wireless Functions
• 1024-QAM
• 4 x Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• HE160 (160 MHz Bandwidth)
• Seamless Roaming
• Omada Mesh
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

Wireless Security
• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise WPA2-Personal/Enterprise WPA3-Personal/Enterprise

Transmission Power
• CE
<20 dBm(2.4 GHz EIRP)
<23 dBm(5 GHz Band1 & Band2 EIRP)
<27 dBm(5 GHz Band3 EIRP)

• FCC
<22 dBm (2.4 GHz)
<22 dBm (5 GHz)

MANAGEMENT


Yes

Centralized Management
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller

Cloud Access
Yes (Through OC300 OC200 Omada Software Controller or Omada Cloud-Based Controller)

Email Alerts
Yes

LED ON/OFF Control
Yes

Management MAC Access Control
Yes

SNMP
v1 v2c v3

System Logging Local/Remote Syslog
Local/Remote Syslog

SSH
Yes

Web-based Management
HTTP/HTTPS

L3 ManagementYes

Multi-site Management
Yes

Management VLAN
Yes

Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS

Certification
CE FCC RoHS

Package Contents
• EAP653
• Ceiling/Wall Mounting Kits
• Installation Guide
Note: DC adapter is not included in the package and is sold separately.

System Requirements
Microsoft Windows XP Vista Windows 7 Windows 8 Windows10 Windows 11 Linux

Environment
• Operating Temperature: 0–40 ? (32–104 ?)
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
