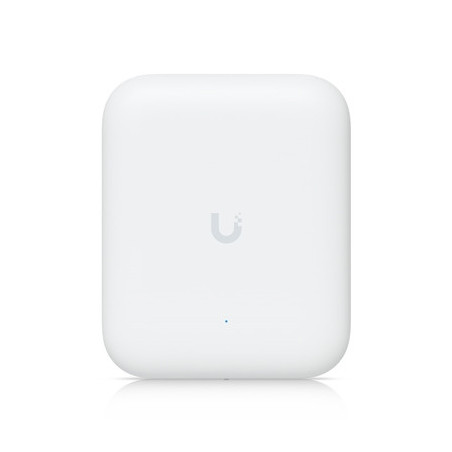

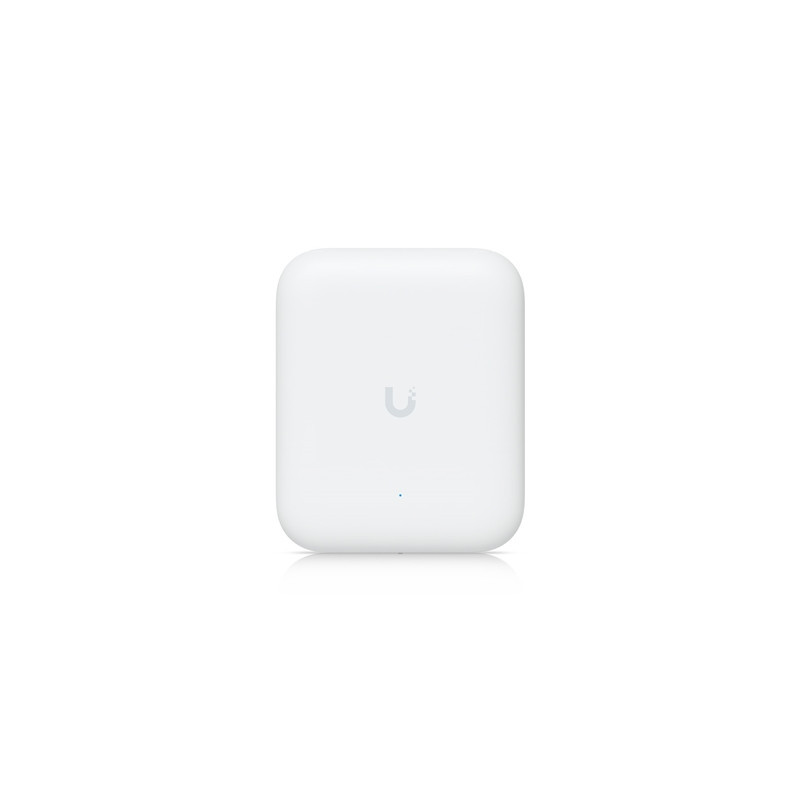

Ubiquiti U7-OUTDOOR UniFi U7 Outdoor WiFi 7 All Weather Access Point

Ubiquiti U7 Outdoor WiFi 7 Access Point

Key Features
WiFi 7
4 spatial streams
465 m² (5 000 ft²) open space coverage
Integrated directional super antenna
Software-adjustable antenna beamwidth
200+ connected devices
Powered using PoE+
2.5 GbE uplink
Versatile wall and pole mounting
IPX6 Weatherproof (outdoor exposed)

Introducing the Ubiquiti UniFi U7-Outdoor the ultimate solution for reliable outdoor WiFi 7 connectivity. Designed to withstand the elements this access point features a durable weather-resistant enclosure and delivers tri-band performance across the 2.4 GHz 5 GHz and 6 GHz bands.

The UniFi U7-Outdoor ensures seamless high-speed connectivity in outdoor environments. Advanced technologies like OFDMA and MU-MIMO enhance network efficiency making it ideal for campuses parks and large outdoor events. Easy to install and manage the U7-Outdoor is the perfect choice for extending your network outdoors.

Specifications

Mechanical

Dimensions
170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1)

Weight
1.2 kg (2.6 lb)

Enclosure Material
UV-stabilized polycarbonate aluminum alloy

Mount Material
Polycarbonate SGCC steel

Pole Mount Diameter
25–60 mm (1–2.36) on pipe outer diameter

Wind Survivability#
74.6 N at 200 km/h (16.8 lbf at 125 mph)

Weatherproofing
IPX6

Hardware

Networking Interface
(1) 1/2.5 GbE RJ45 port

Management Interface
Ethernet

Power method
PoE+

Power Supply
UniFi PoE Switch

Supported Voltage Range
42.5—57V DC

Max. Power Consumption
19W

Max. TX Power
2.4 GHz - 23 dBm
5 GHz - 26 dBm
6 GHz - No

MIMO
2.4 GHz - 2 x 2
5 GHz - 2 x 2
6 GHz - No

Throughput Rate
2.4 GHz - 688 Mbps
5 GHz - 4324 Mbps

Antenna Gain
2.4 GHz - Directional internal: 8 dBi / External omni: 3 dBi
5 GHz - Directional internal: 12.5 dBi / External omni: 4 dBi
6 GHz - No

Antenna Beamwidth
2.4 GHz - 90 degrees
5 GHz - 45 degrees
6 GHz - No

Antennas
(1) Directional internal antenna
(2) External omni antennas
(2) RP-SMA connectors for external antenna

LEDs
(1) Power: white/blue
(4) Mesh signal: blue

Button
Factory reset

Mounting
Wall ceiling pole (Included)

Ambient Operating Temperature
-30 to 60° C (-22 to 140° F)

Ambient Operating Humidity
5 to 95% noncondensing

Certifications
CE FCC IC

Software

WiFi Standards
802.11a/b/g/n/ac/ax/be

Wireless Security
WPA-PSK WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

BSSID
8 per radio

VLAN
802.1Q

Advanced QoS
Per-user rate limiting

Guest Traffic Isolation
Supported

Concurrent Clients
200+

Supported Data Rates

802.11a
6 9 12 18 24 36 48 54 Mbps

802.11b
1 2 5.5 11 Mbps

802.11g
6 9 12 18 24 36 48 54 Mbps

802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15 HT 20/40)

802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2 VHT 20/40/80/160)

802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2 HE 20/40/80/160)

802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2 EHT 20/40/80/160/240)

Box Contents
1 x U7-Pro-Wall
2 x External antennas
1 x Wall plate template level
1 x Wall plate mount
1 x Multipurpose mount
2 x Jubilee clips
All mounting hardware
