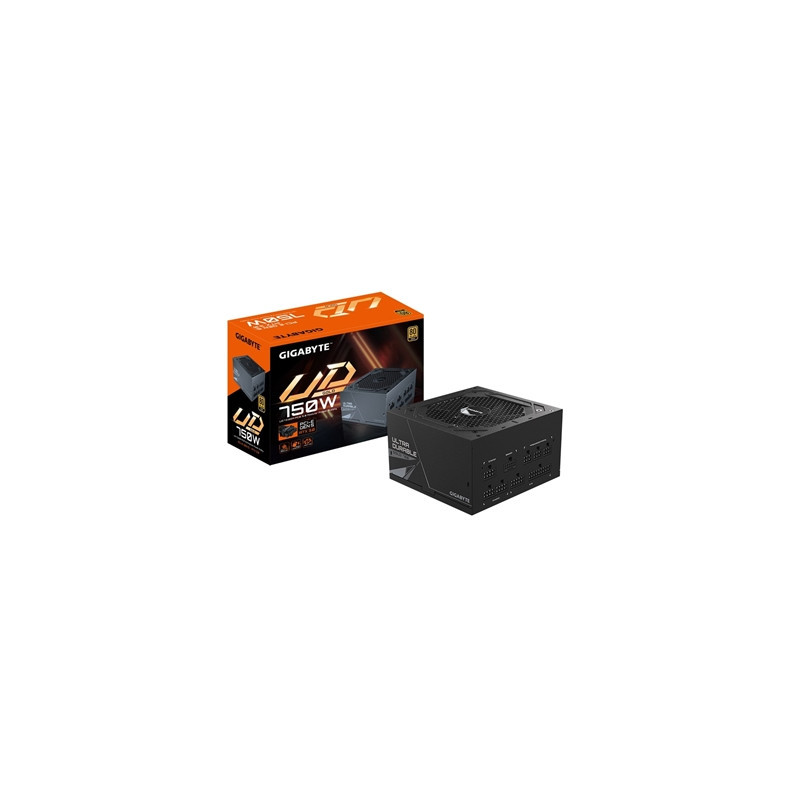

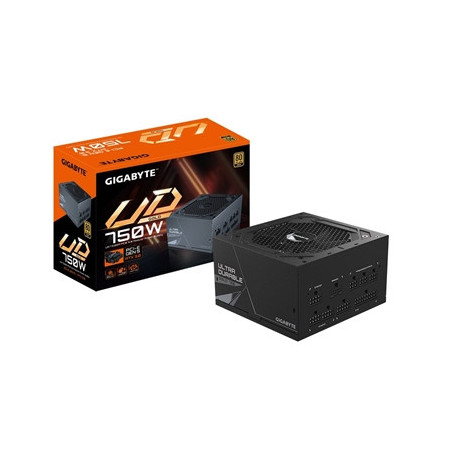

Gigabyte UD750GM PG5 750W Fully Modular 80 Plus Gold Certified PCIe Gen 5 & Intel ATX 3.0 Ready Ultra Durable with Smart Hyd

The Gigabyte GP-UD750GM PG5is a high-performance power supply unit designed to meet the needs of modern PC builds. It features a fully modular design 80 PLUS Gold certification and support for PCIe Gen 5.0 graphics cards making it ideal for high-end gaming and professional applications.

Key Features
Ultra Durable
Main Japanese capacitors
Enhanced thermal solution
120mm smart hydraulic bearing (HYB) fan
OVP/OPP/SCP/UVP/OCP/OTP protection
Support PCIe Gen 5.0 graphics cards
Support Intel ATX 3.0 standard
80 PLUS Gold certified
Fully modular design
Compact design
5 years warranty (Adjusted according to different regions)

Specifications

Type
Intel Form Factor ATX 12V v3.0

PFC
Active PFC (>0.9 typical)

Input Voltage
100-240 Vac (full range)

Input Current
12-6A

Input Frequency
60-50 Hz

Output Capacity
750W

Fan Type
120mm smart hydraulic bearing (HYB) fan

Efficiency
90% at typical load

MTBF
100 000 hours

Protection
OVP OPP SCP UVP OCP OTP

Certifications
80 PLUS Gold

Dimensions
150 x 140 x 86 mm

Power Good Signal
100-150ms

Hold Up Time
>16ms

Cable Type
Flat All black

Connectors
ATX/MB 20+4 Pin x 1: 610 mm x 1
CPU/EPS 4+4 Pin x 2: 600 mm + 200mm x 1
PCIe 16 Pin x 1: 700 mm x 1
PCIe 6+2 Pin x 4: 600 mm + 150 mm x 2
SATA x 8:
600 mm +150 mm +150 mm +150 mm x 2
4 Pin Peripheral x 3+4-Pin floppy x 1: 500 mm +120 mm +120 mm +150mm x 1
