- Out-of-Stock
be quiet! Power Zone 2 750W PSU - 80 PLUS Platinum Semi-Passive Cooling Pure Wings 3 Fan PCIe 5.1/ATX 3.1 Compatibility 10-Y
£110.50
VAT included

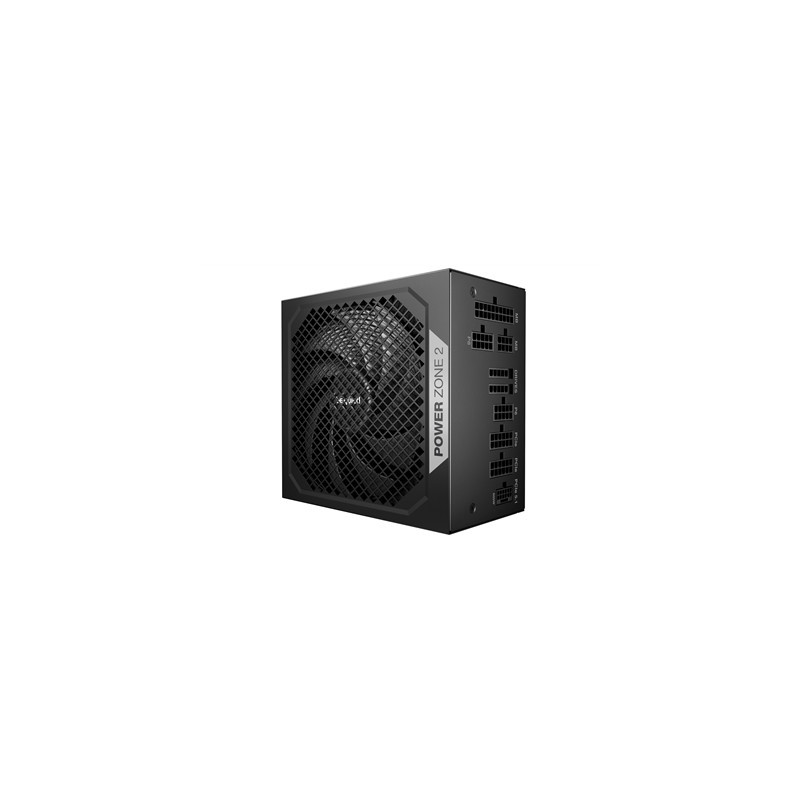

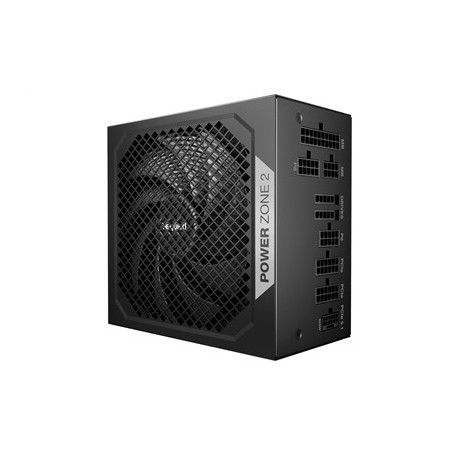

be quiet! Power Zone 2 750W PSU - 80 PLUS Platinum Semi-Passive Cooling Pure Wings 3 Fan PCIe 5.1/ATX 3.1 Compatibility 10-Year Warranty
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The be quiet! Power Zone 2 750W Power Supply Unit (PSU)is crafted for gamers who prioritize efficiency and quiet operation. Featuring cutting-edge technology and a sleek design this PSU ensures your system runs smoothly and efficiently making it perfect for high-end gaming systems overclocking rigs and quiet HTPCs.
Key Features:
80 PLUS® Platinum and Cybernetics Platinum Efficiency Rating: Up to 94.2% efficiency ensuring lower power consumption cooler operation and reduced noise.
Semi-Passive Zero-RPM Cooling: The fan turns off completely under low load ensuring silent operation. Post-ventilation cool-down period of 2-5 minutes prevents frequent starts and stops.
Pure Wings 3 140mm Fan: Specially designed for the Power Zone 2 providing reliable efficient and quiet cooling.
90° Angled 12V-2x6 Connector and PCIe 5.1/ATX 3.1 Compatibility: Ensures compatibility with next-generation graphics cards and current-gen GPUs making it a future-proof investment.
Advanced Voltage Regulation and Stability: Thanks to LLC technology it offers superior voltage regulation and efficiency.
Unique Mesh Design: Distinctive look with a newly designed mesh front and cable designations printed on the PSU's case.
One Massive High-Performance 12V Rail: Ensures reliable operation with high power excursions up to double its rated power.
10-Year Manufacturer’s Warranty: Providing peace of mind and long-term reliability.
Technical Data:
Model:
Power Zone 2 750W
Continuous Power (W):
750
Peak Power (W):
820
Form Factor:
Version 3.1
Form Factor EPS 12V:
Version 2.92
Voltage (Vac):
100 - 240
Frequency (Hz):
50 - 60
Input Current (A):
10 / 5
Power Factor at 100% Load:
>0.98
Modern Standby:
Yes
Power Consumption in Standby (W):
<0.18
Average Life Time (h / 25°C):
>100 000
Operating Temperature up to (°C):
40
Efficiency:
80 PLUS Certification:
Platinum
Efficiency (%) at 230V 100% Load:
92.5
Fan and Cooling Technology:
Cybenetics Noise Rating:
A++
Fan:
Pure Wings 3
Fan Size (mm):
140
Bearing Technology:
Rifle
Motor Technology:
4-pole fan motor
Max. Fan Speed (rpm):
1800
dB(A) at 100% Load:
15.8
Max. Combined Power 12V (W):
750
Max. Combined Power 12VHPWR (W):
600
Max. Combined Power 3.3V + 5V (W):
120
Hold-up Time at 100% Load (ms):
24.5
Hold-up Time at 80% Load (ms):
32.9
Cables and Connectors:
Maximum Cable Length (cm): 100
Cable Length to Motherboard (cm): 60
ATX-Motherboard (20+4-pin): 1
P4+4 (CPU): 1
P8 (CPU): 1
P4 (CPU): 1
12VHPWR Cables: 1
PCI-e 6+2-pin (GPU): 3
PCI-e 6-pin (GPU): None
SATA: 6
PATA: 1
FDD (Floppy): None
Dimensions:
Dimensions without Cable (L x W x H) (mm): 160 x 150 x 86
