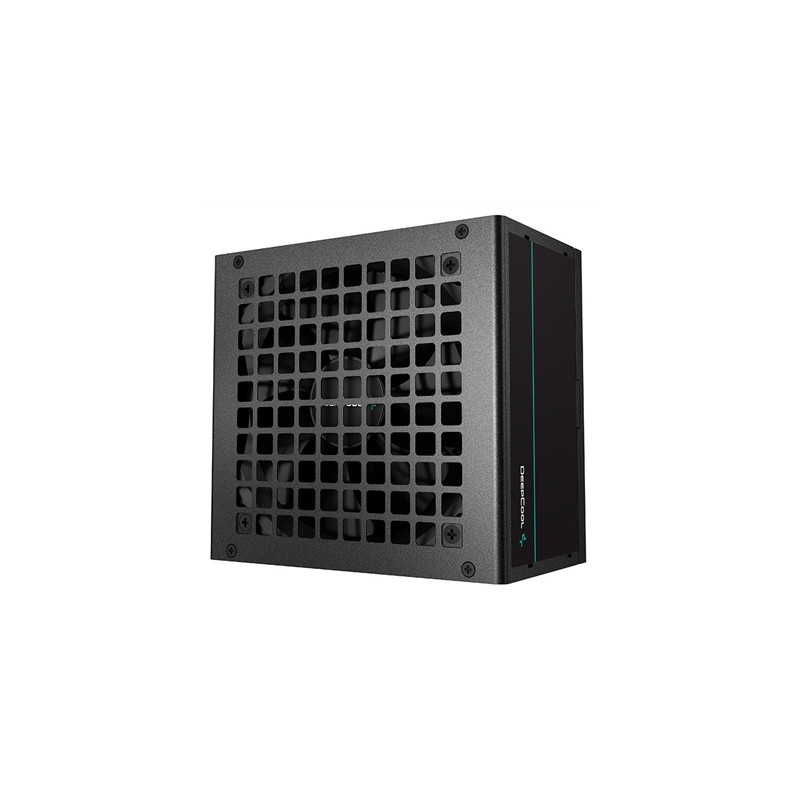

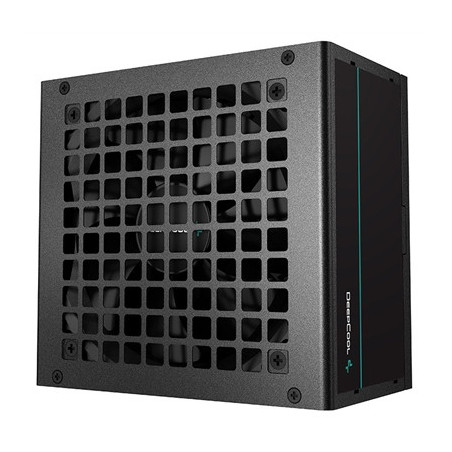

DeepCool PF400 80 PLUS Standard Power Supply 400W Silent Hydraulic Bearing Fan Reliable Protection Flat Black Cables 85% Eff

DeepCool PF400The DeepCool PF Series Power Supply Unit offers safe and stable power performance with reliable 80 PLUS Standard efficiency and affordable pricing.

To Higher StandardsCertified for 80 PLUS 230V EU Standard efficiency that ensures 85% efficiency under typical loading of 50%. Better efficiency translates into lower energy waste and lower temperatures for more cost savings.

Silent Hydraulic Bearing FanOptimally balanced for low-noise performance the 120mm fluid bearing fan improves overall life expectancy and reduces friction and vibration.

Flat Black CablesStealthy and flexible the fixed flat black cables are easy to maneuver for cable management while also taking up less space in your system.

Reliable ProtectionShield against potential risk and damage with overpower over voltage and short circuit power protection.

Over Power Protection Over Voltage Protection Short Circuit Protection

Specifications

Type:
ATX12V V2.4

Product Dimensions:
150x140x86mm (W x L x H)

Efficiency certification:
230V EU White

Fan Size:
120mm

Fan Bearing:
Hypro Bearing

Topology:
Active PFC + Double tube forward

Capacitors:
Taiwan bulk capacitor

Power Good Signal:
100-500ms

Hold Up Time:
=16ms (75% Load)

Efficiency:
=85% Under Typical Load (50% Loading)

Connections:
Main Power Connector 24 (20+4) Pin x 1
EPS 12V Connector 8 (4+4) Pin x 1
PCI-E (6+2) Pin x 2
SATA x 3
4 Pin Peripheral x 1

Protection:
OPP/OVP/SCP

Operation Temperature:
0-40°C

Regulatory:
CB/CCC/CE/UKCA/EAC/RCM

Erp Regulation:
ErP 2010

MTBF:
100 000 Hours
