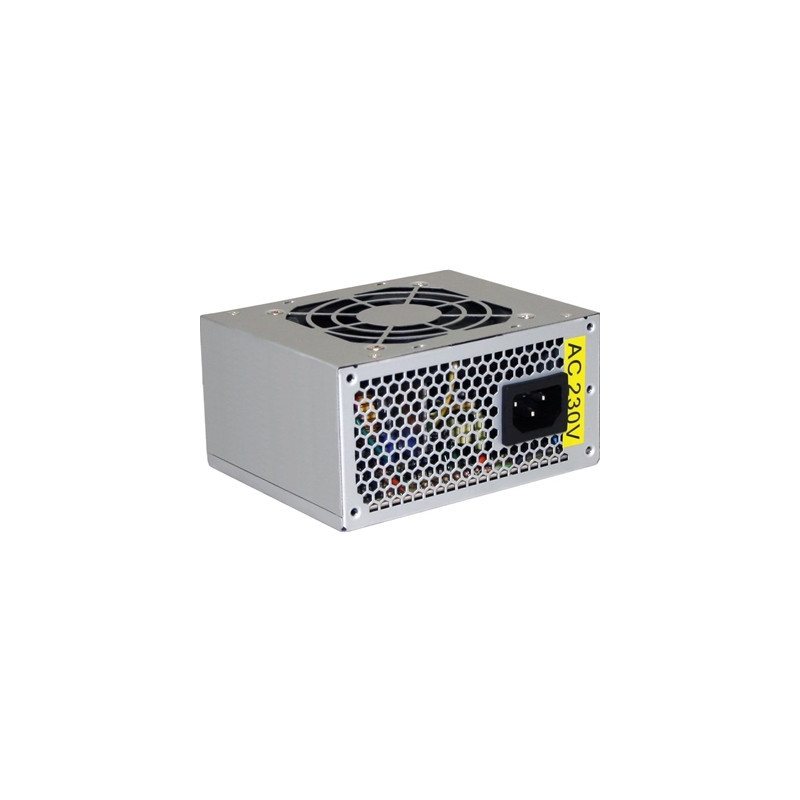

CIT 300W Micro Atx PSU M-300U Silent PSU with Temperature Control Fan
£21.30
VAT included
CIT 300W Micro Atx PSU M-300U Silent PSU with Temperature Control Fan
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Key Features
Small factor PSU
Silent PSU with Temperature Control Fan
Complies with Intel ATX12V 2.31VER
Fan Speed Control Function Inside
Passive PFC (Power Factor Correction)
Low noise with intelligent-thermal fan control technology
ATX 12V Compliant for all kinds of CPU and mainboard
MTBF 50 000 Hours @ 25 degrees C
PSU Specifications
AC INPUT: 230 VAC 5A 50-60Hz
DC Output:
+3.3V +5V +12V1 -12V +5VSB
16A 16A 14A 0.3A 2A
Max: 300W
Connectors
20+4 Pin Main Connectors: 1
4-Pin 12V Connectors: 1
SATA Connectors: 3
4-Pin Molex Connectors: 2
Floppy Drive Connectors:1
Detailed Specifications
Dimensions: 125mm x 65mm x 100mm (W x H x D)
Input Voltage: 230 VAC
Input Current: 5A
Input Frequency Range: 50-60Hz
PFC: Yes - Passive Power Factor Control
Power Good Signal: 150-450 ms
Hold Up Time: 1ms-40ms
Efficiency: 75%
MTBF: 100 000 Hours
Protection: OVP / UVP/ OPP
Power: 300W
Operation Temperature: 45°C
Safety: CE / ROHS
Cooling: 80mm fan
Noise:< 17 dBA
Small factor PSU
Silent PSU with Temperature Control Fan
Complies with Intel ATX12V 2.31VER
Fan Speed Control Function Inside
Passive PFC (Power Factor Correction)
Low noise with intelligent-thermal fan control technology
ATX 12V Compliant for all kinds of CPU and mainboard
MTBF 50 000 Hours @ 25 degrees C
PSU Specifications
AC INPUT: 230 VAC 5A 50-60Hz
DC Output:
+3.3V +5V +12V1 -12V +5VSB
16A 16A 14A 0.3A 2A
Max: 300W
Connectors
20+4 Pin Main Connectors: 1
4-Pin 12V Connectors: 1
SATA Connectors: 3
4-Pin Molex Connectors: 2
Floppy Drive Connectors:1
Detailed Specifications
Dimensions: 125mm x 65mm x 100mm (W x H x D)
Input Voltage: 230 VAC
Input Current: 5A
Input Frequency Range: 50-60Hz
PFC: Yes - Passive Power Factor Control
Power Good Signal: 150-450 ms
Hold Up Time: 1ms-40ms
Efficiency: 75%
MTBF: 100 000 Hours
Protection: OVP / UVP/ OPP
Power: 300W
Operation Temperature: 45°C
Safety: CE / ROHS
Cooling: 80mm fan
Noise:< 17 dBA
PSCIT-M300U-TL01
