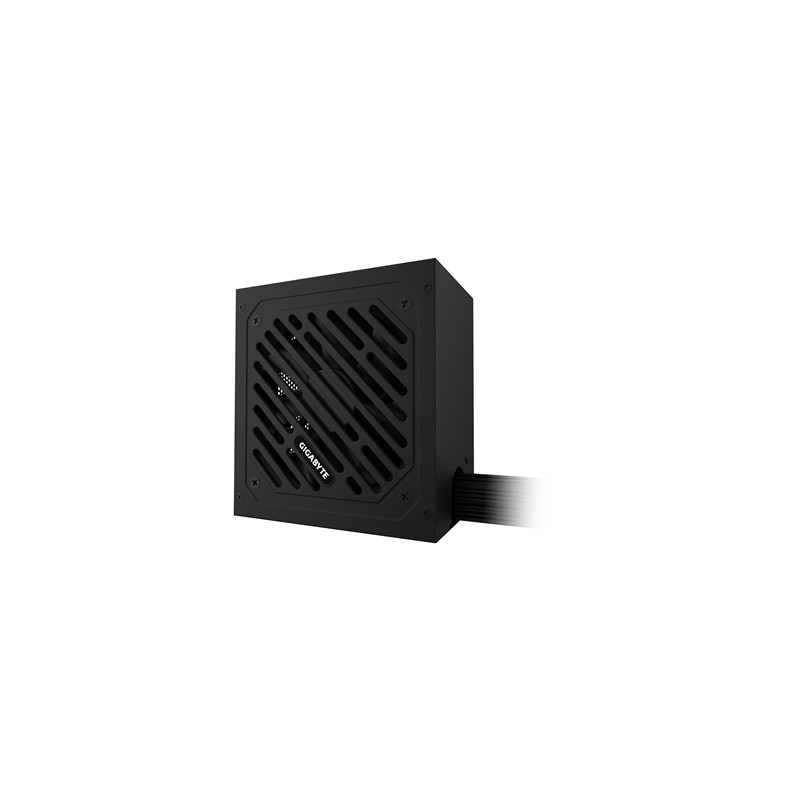

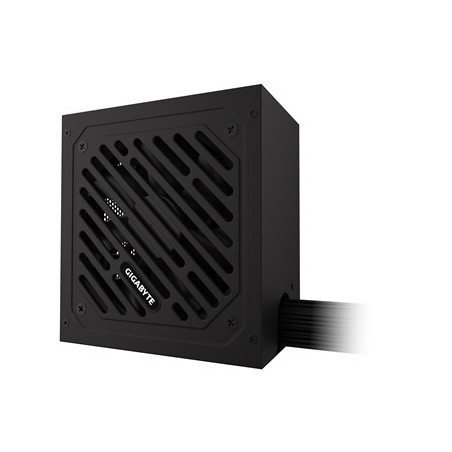

GIGABYTE GP-P550SS 550W 80 PLUS Silver Certified Power Supply - ATX 3.0 Standard Quiet 120mm Fan Flat Cable Design BULK PACK

The GIGABYTE GP-P550SSis a high-performance power supply unit designed for desktop PCs. It is80 PLUS Silver certified ensuring high energy efficiency with a 90% efficiency rate at 50% load. This power supply is built to support the Intel ATX 3.0 standard making it compatible with ATX 3.1 as well. It features a120mm Fluid Dynamic Bearing (FDB) fanfor quieter operation and enhanced durability. The unit also includes a flat cable design for better airflow and reduced clutter inside the chassis. With a powerful single +12V rail it provides stable power output and is suitable for overclocking. The GP-P550SS comes with comprehensive protection features and a 3-year warranty.

Specification
Model:
GP-P550SS

Form Factor:
ATX 12V v3.0

Input Voltage:
155-240 Vac

Input Current:
6.3A

Input Frequency:
50-60 Hz

Output Capacity:
550W

Efficiency:
80 PLUS Silver certified (90% at typical load 230V EU)

Dimension:
150 x 140 x 86 mm

Fan Type:
120mm Fluid Dynamic Bearing (FDB) fan

MTBF:>
100 000 hours

Protection:
OVP/OPP/SCP/UVP/OCP/OTP

Hold Up Time:
100-150ms

Cable Type:
Flat All black

Connectors:
ATX/MB 20+4 Pin x 1 : 600mm
CPU/EPS 4+4 Pin x 1 : 650mm
PCI-e 6+2 Pin x 2 : 600mm+120mm
SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm
SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm
