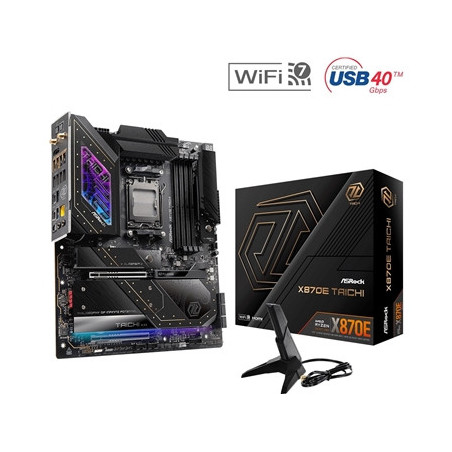

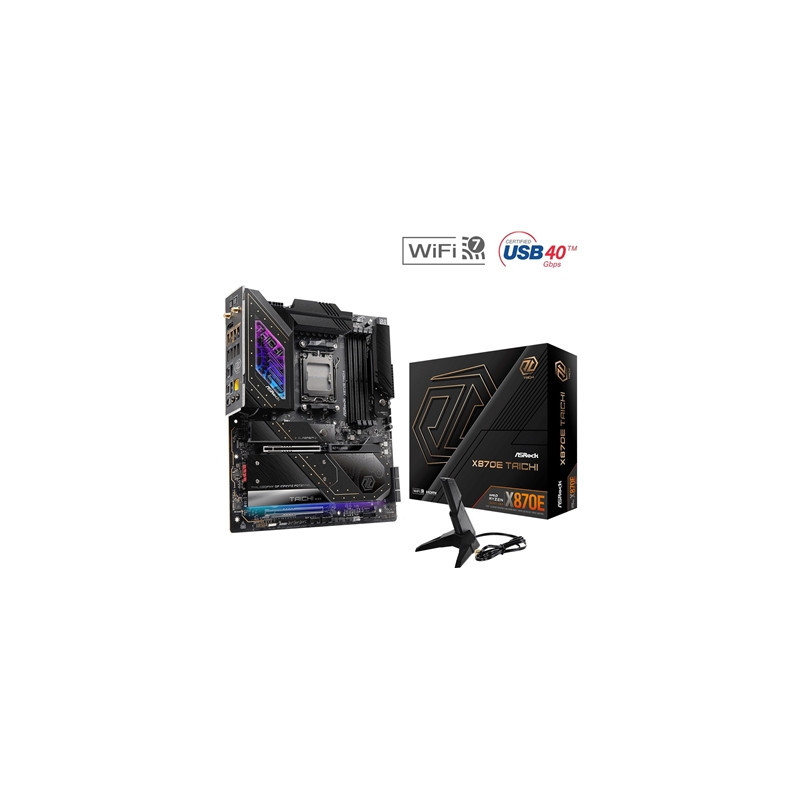

ASRock X870E TAICHI AMD AM5 Socket Motherboard E-ATX 4x DDR5 Slots 4x M.2 Sockets 3x USB-C Port Fitted I/O Shield 5GbE LAN
£461.59
VAT included
ASRock X870E TAICHI AMD AM5 Socket Motherboard E-ATX 4x DDR5 Slots 4x M.2 Sockets 3x USB-C Port Fitted I/O Shield 5GbE LAN Wi-Fi 7 1x HDMI Port / 2x USB-C (USB4)
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
X870E Taichi
KEYFEATURES:
Supports AMD Ryzen™ 9000 8000 and 7000 Series Processors
24+2+1 Phase Power Design 110A SPS
4 x DDR5 DIMMs
Supports Dual Channel up to 8200+ (OC)
2 PCIe 5.0 x16
Graphics Output Options: 2 USB4 Type-C 1 HDMI
Realtek ALC4082 5.1 CH HD Audio Codec
ESS SABRE9219 DAC WIMA Audio Caps
1 Blazing M.2 (PCIe Gen5x4)
3 Hyper M.2 (PCIe Gen4x4)
6 SATA3
2 USB4 Type-C (Rear)
1 USB 3.2 Gen2x2 Type-C (Front)
5 USB 3.2 Gen2 Type-A (Rear)
7 USB 3.2 Gen1 (3 Rear 4 Front)
5G LAN
802.11be Wi-Fi 7 + Bluetooth
Supports Graphics Card EZ Release Toolless Multi-Layer M.2 Heatsink M.2 Bottom Heatsink
Unique Feature
Superb Productivity
PCIe Gen5 (Graphics M.2)
Dual Channel DDR5
USB4 Type-C Ports (40 Gb/s)
Rock-Solid Durability
Server-Grade Low-Loss PCB
24+2+1 Power Phase 110A SPS for VCore+SOC with Enlarged Heatsink Armor
Flexible Integrated I/O Shield
20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
Ultrafast Connectivity
5G LAN 802.11be Wi-Fi 7 Module
ASRock Lightning Gaming Ports
EZ Update
BIOS Flashback Button
ASRock Auto Driver Installer
CPU
Supports AMD Socket AM5 Ryzen™ 9000 8000 and 7000 Series Processors*
Supports ASRock Hyper BCLK Engine
*The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
Chipset
AMD X870E
Memory
Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 ECC/non-ECC un-buffered memory up to 8200+(OC)*
Max. capacity of system memory: 256GB
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules*
*Please refer to Memory Support List on ASRock's website for more information.
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Graphics
Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
1 x HDMI 2.1 TMDS/FRL 8G Compatible supports HDR HDCP 2.3 and max. resolution up to 4K 120Hz
2 x USB4 support HDCP 2.3 and max. resolution up to 8K 30Hz*
* Only the CPU's embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor please use AM5 Ryzen™ 9000 8000 and 7000 processors with embedded graphics.
Audio
5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
WIMA Audio Capacitors (For Rear Outputs)
ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR)
Individual PCB Layers for R/L Audio Channel
Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets)
Nahimic Audio
LAN
5 Gigabit LAN 10/100/1000/2500/5000 Mb/s
Realtek RTL8126
Wireless LAN
802.11be 2x2 Wi-Fi 7 Module
Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
Supports 2.4GHz/5GHz/6GHz* frequency band
Supports 160MHz channel bandwidth with 6GHz* frequency band
1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth 5.4
Supports MU-MIMO
*The Wi-Fi 7 module is supported by Microsoft Windows® 11 only. There is no driver available for Windows® 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
Slots
CPU:
2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2) support x16 or x8/x8 modes*
Chipset:
1 x Vertical M.2 Socket (Key E) supports type 2230 WiFi/BT PCIe WiFi module
- Supports AMD CrossFire™
*PCIE1 will run at Gen5x16 with 9000 and 7000 series processors Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
Supports NVMe SSD as boot disks
Storage
CPU:
1 x Blazing M.2 Socket (M2_1 Key M) supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
1 x Hyper M.2 Socket (M2_2 Key M) supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
1 x Hyper M.2 Socket (M2_3 Key M) supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
1 x Hyper M.2 Socket (M2_4 Key M) supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
6 x SATA3 6.0 Gb/s Connectors
* Supports NVMe SSD as boot disks
M2_1 is the first priority for M.2 installation.
M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.
RAID
Supports RAID 0 RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 RAID 1 and RAID 10 for M.2 NVMe storage devices
USB
CPU:
2 x USB4 Type-C (Rear)
2 x USB 3.2 Gen2 Type-A (Rear)
Chipset:
1 x USB 3.2 Gen2x2 Type-C (Front)
3 x USB 3.2 Gen2 Type-A (Rear)
7 x USB 3.2 Gen1 Type-A (3 Rear 4 Front)
6 x USB 2.0 (2 Rear 4 Front)
* All USB ports support ESD Protection
Connector
3 x Thermistor Cable Headers
1 x Power LED and Speaker Header
1 x RGB LED Header*
3 x Addressable LED Headers**
2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***
4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x Front Panel Audio Connector (15µ Gold Audio Connector)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button with LED
* Supports in total up to 12V/3A 36W LED Strip
** Support in total up to 5V/3A 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
CPU_FAN2 CHA_FAN1~4 AIO_PUMP and W_PUMP support the fan power up to 3A (36W).
CPU_FAN2 CHA_FAN1~4 AIO_PUMP and W_PUMP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O
2 x Antenna Ports
1 x HDMI Port
1 x Optical SPDIF Out Port
2 x USB4 Type-C Ports (40 Gb/s)*
5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.)
3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.)
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x Clear CMOS Button
1 x BIOS Flashback Button
1 x Line Out Jack (Gold Audio Jack)
1 x Microphone Input Jack (Gold Audio Jack)
* Supports USB PD 3.0 up to 5V@3A (15W) charging
Software and UEFI
Software
ASRock Motherboard Utility (A-Tuning)
ASRock Polychrome SYNC*
UEFI
ASRock EZ Mode
ASRock Full HD UEFI
ASRock Auto Driver Installer
ASRock Instant Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories
4 x SATA Data Cables
1 x ASRock WiFi 2.4/5/6 GHz Antenna
1 x ARGB Splitter Cable
3 x Thermistor Cables
Form Factor
EATX Form Factor: 12.0-in x 10.5-in 30.5 cm x 26.7 cm
8 Layer PCB
2oz Copper PCB
OS
Microsoft Windows® 10 64-bit / 11 64-bit
Certifications
FCC CE
ErP/EuP ready (ErP/EuP ready power supply is required)
