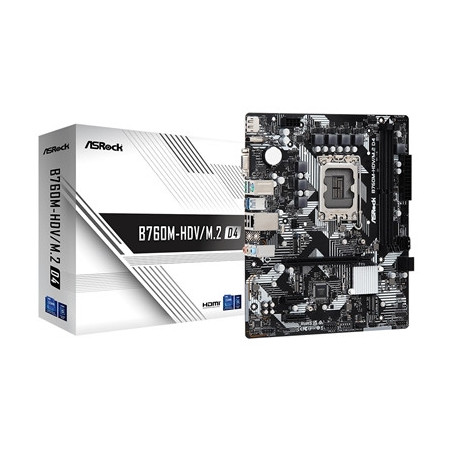

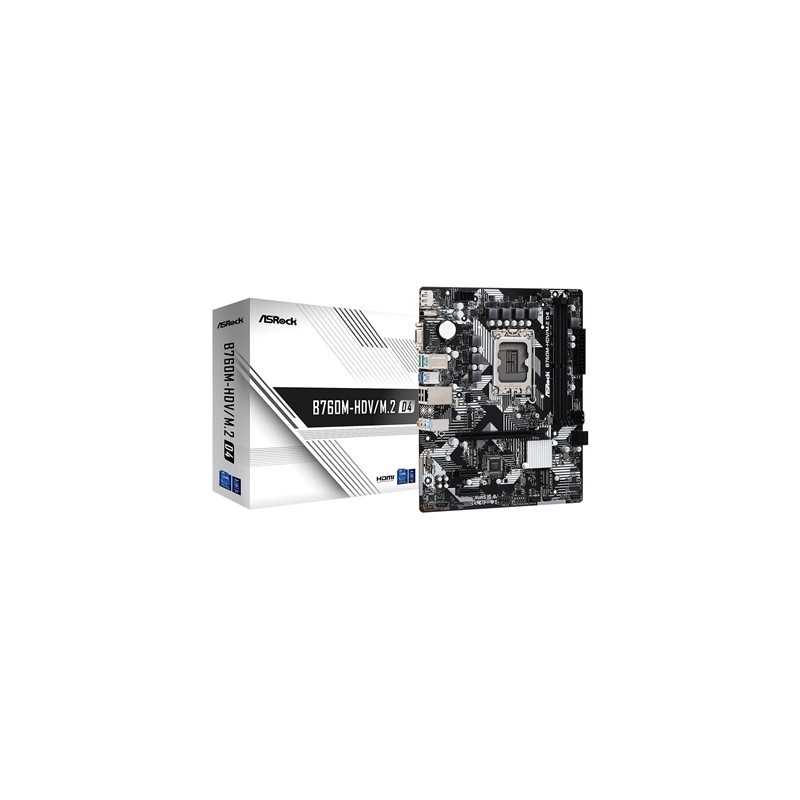

Asrock B760M-HDV/M.2 D4 Intel B760 1700 Micro ATX 2 DDR4 VGA HDMI DP GB LAN PCIe4 2x M.2
£86.09
VAT included
Asrock B760M-HDV/M.2 D4 Intel B760 1700 Micro ATX 2 DDR4 VGA HDMI DP GB LAN PCIe4 2x M.2
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700)
5+1+1 Power Phase
Supports DDR4 5333MHz (OC)
1 PCIe 4.0 x16 2 PCIe 3.0 x1 1 M.2 Key E for WiFi
Graphics Output Options: HDMI DisplayPort D-Sub
Realtek ALC887/897 7.1 CH HD Audio Codec
4 SATA3 1 Hyper M.2 (PCIe Gen4x4)
1 Ultra M.2 (PCIe Gen3x4 & SATA)
1 USB 3.2 Gen1 Type-C (Rear)
5 USB 3.2 Gen1 Type-A (3 Rear 2 Front)
5 USB 2.0 (2 Rear 3 Front)
Realtek 1G LAN
Supports ASRock Auto Driver Installer
Shape The Universe
HDMI
Polychrhome S Y N C
WiFi 6E
5+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU offering enhanced performance for gamers.
High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs it is capable of perform twice the speed compared to previous 3rd generation giving a lightning fast data transferring experience.
M.2 (KEY E) For WiFi
Besides the onboard LAN port users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!
Unique Feature
Rock-Solid Durability
5+1+1 Power Phase
EZ Update
ASRock Auto Driver Installer
CPU
Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700)
Supports Intel® Hybrid Technology
Supports Intel® Turbo Boost Max 3.0 Technology
Supports Intel® Thermal Velocity Boost (TVB)
Supports Intel® Adaptive Boost Technology (ABT)
Chipset
Intel B760
Memory
Dual Channel DDR4 Memory Technology
2 x DDR4 DIMM Slots
Supports DDR4 non-ECC un-buffered memory up to 5333+(OC)
Supports ECC UDIMM memory modules (operate in non-ECC mode)
Max. capacity of system memory: 64GB
Supports Intel Extreme Memory Profile (XMP) 2.0
BIOS
128Mb AMI UEFI Legal BIOS with GUI support
Graphics
Intel Xe Graphics Architecture (Gen 12)
1 x HDMI 2.1 TMDS Compatible supports HDCP 2.3 and max. resolution up to 4K 60Hz
1 x DisplayPort 1.4 with DSC (compressed) supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
1 x D-Sub supports max. resolution up to Full HD (1920x1080) 60Hz
Audio
7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
LAN
Gigabit LAN 10/100/1000 Mb/s
Realtek 8111H
Slots
CPU:
1 x PCIe 4.0 x16 Slot (PCIE1) supports x16 mode
Chipset:
2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)
1 x M.2 Socket (Key E) supports type 2230 WiFi/BT PCIe WiFi module
Storage
CPU:
1 x Hyper M.2 Socket (M2_1 Key M) supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
Chipset:
1 x Ultra M.2 Socket (M2_2 Key M) supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
4 x SATA3 6.0 Gb/s Connectors
RAID
Supports RAID 0 RAID 1 RAID 5 and RAID 10 for SATA storage devices
USB
1 x USB 3.2 Gen1 Type-C (Rear)
5 x USB 3.2 Gen1 Type-A (3 Rear 2 Front)
5 x USB 2.0 (2 Rear 3 Front)
All USB ports support ESD Protection
Connector
1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Rear Panel I/O
2 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C Port
3 x USB 3.2 Gen1 Type-A Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
ASRock Motherboard Utility (A-Tuning)
ASRock XFast LAN
UEFI
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Auto Driver Installer
ASRock Instant Flash
ASRock Easy RAID Installer
Accessories
1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
3 x Screws for M.2 Sockets
Form Factor
Micro ATX Form Factor: 9.6-in x 7.9-in 24.4 cm x 20.1 cm
OS
Microsoft Windows 10 64-bit / 11 64-bit
Certifications
FCC CE
ErP/EuP ready (ErP/EuP ready power supply is required)
5+1+1 Power Phase
Supports DDR4 5333MHz (OC)
1 PCIe 4.0 x16 2 PCIe 3.0 x1 1 M.2 Key E for WiFi
Graphics Output Options: HDMI DisplayPort D-Sub
Realtek ALC887/897 7.1 CH HD Audio Codec
4 SATA3 1 Hyper M.2 (PCIe Gen4x4)
1 Ultra M.2 (PCIe Gen3x4 & SATA)
1 USB 3.2 Gen1 Type-C (Rear)
5 USB 3.2 Gen1 Type-A (3 Rear 2 Front)
5 USB 2.0 (2 Rear 3 Front)
Realtek 1G LAN
Supports ASRock Auto Driver Installer
Shape The Universe
HDMI
Polychrhome S Y N C
WiFi 6E
5+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU offering enhanced performance for gamers.
High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs it is capable of perform twice the speed compared to previous 3rd generation giving a lightning fast data transferring experience.
M.2 (KEY E) For WiFi
Besides the onboard LAN port users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!
Unique Feature
Rock-Solid Durability
5+1+1 Power Phase
EZ Update
ASRock Auto Driver Installer
CPU
Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700)
Supports Intel® Hybrid Technology
Supports Intel® Turbo Boost Max 3.0 Technology
Supports Intel® Thermal Velocity Boost (TVB)
Supports Intel® Adaptive Boost Technology (ABT)
Chipset
Intel B760
Memory
Dual Channel DDR4 Memory Technology
2 x DDR4 DIMM Slots
Supports DDR4 non-ECC un-buffered memory up to 5333+(OC)
Supports ECC UDIMM memory modules (operate in non-ECC mode)
Max. capacity of system memory: 64GB
Supports Intel Extreme Memory Profile (XMP) 2.0
BIOS
128Mb AMI UEFI Legal BIOS with GUI support
Graphics
Intel Xe Graphics Architecture (Gen 12)
1 x HDMI 2.1 TMDS Compatible supports HDCP 2.3 and max. resolution up to 4K 60Hz
1 x DisplayPort 1.4 with DSC (compressed) supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
1 x D-Sub supports max. resolution up to Full HD (1920x1080) 60Hz
Audio
7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
LAN
Gigabit LAN 10/100/1000 Mb/s
Realtek 8111H
Slots
CPU:
1 x PCIe 4.0 x16 Slot (PCIE1) supports x16 mode
Chipset:
2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)
1 x M.2 Socket (Key E) supports type 2230 WiFi/BT PCIe WiFi module
Storage
CPU:
1 x Hyper M.2 Socket (M2_1 Key M) supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
Chipset:
1 x Ultra M.2 Socket (M2_2 Key M) supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
4 x SATA3 6.0 Gb/s Connectors
RAID
Supports RAID 0 RAID 1 RAID 5 and RAID 10 for SATA storage devices
USB
1 x USB 3.2 Gen1 Type-C (Rear)
5 x USB 3.2 Gen1 Type-A (3 Rear 2 Front)
5 x USB 2.0 (2 Rear 3 Front)
All USB ports support ESD Protection
Connector
1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Rear Panel I/O
2 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C Port
3 x USB 3.2 Gen1 Type-A Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
ASRock Motherboard Utility (A-Tuning)
ASRock XFast LAN
UEFI
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Auto Driver Installer
ASRock Instant Flash
ASRock Easy RAID Installer
Accessories
1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
3 x Screws for M.2 Sockets
Form Factor
Micro ATX Form Factor: 9.6-in x 7.9-in 24.4 cm x 20.1 cm
OS
Microsoft Windows 10 64-bit / 11 64-bit
Certifications
FCC CE
ErP/EuP ready (ErP/EuP ready power supply is required)
MBASR-B760MHDVMD-TL01
