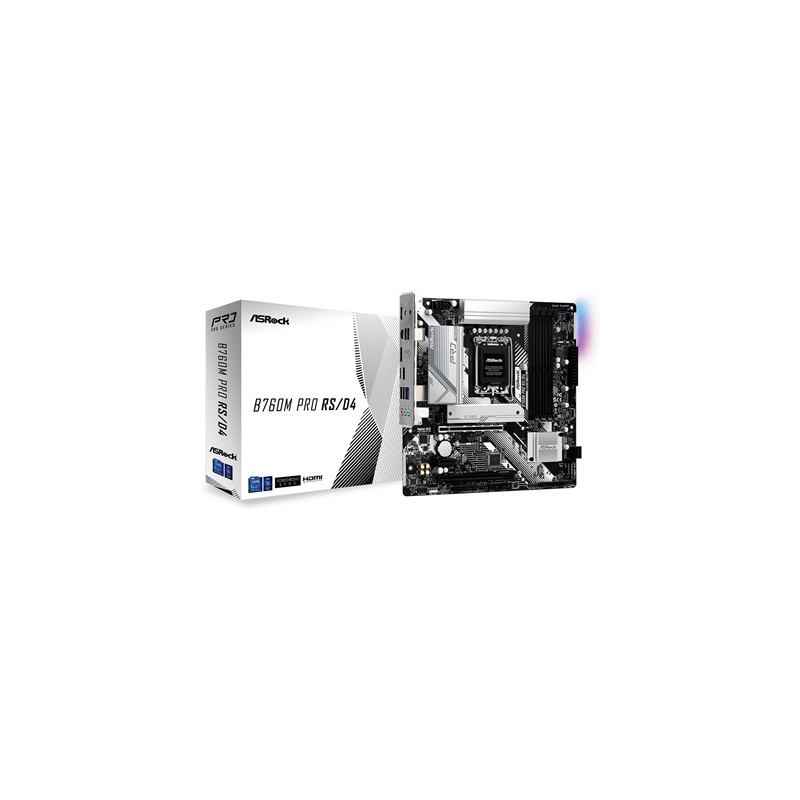

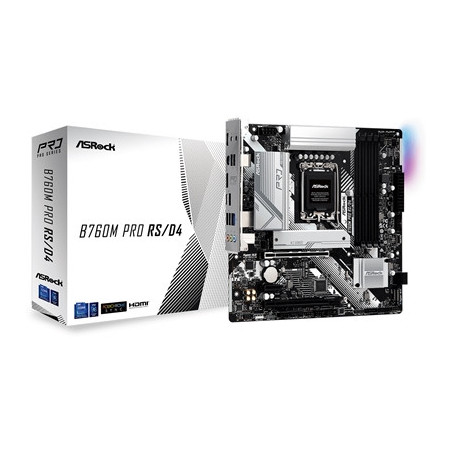

ASRock B760M Pro RS/D4 WiFi Intel 1700 Socket Motherboard Micro-ATX 4x DDR4 Slots 3x M.2 Sockets 2x USB-C Port Fitted I/O S

Modern and futuristic with the attractive specifications and perfect balance the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.

Its unique path takes aim at mainstream DIYers that drives an undeniable performance and trustable computing experience without a pricey upgrade.

RaceSport edition your all-rounder motherboard that fulfills every task and light-loading gaming – with style and speed!

Optimized VRM Design
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs it intelligently delivers higher current for each phase thus providing improved thermal result and superior performance.

Nahimic Audio
Whether you are using headphones a headset external or internal speakers via USB Wi-Fi analog output or even HDMI Nahimic Audio offers you the most engaging listening experience vibrant and rich with details.

POLYCHROME RGB
In addition to the built-in RGB illumination it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip CPU fans coolers chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.


Key Features
Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
7+1+1 Power Phase Dr.MOS for VCore+GT
Supports DDR4 5333MHz (OC)
2 PCIe 4.0 x16 1 PCIe 4.0 x1
Graphics Output Options: HDMI DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec Nahimic Audio
4 SATA3 2 Hyper M.2 (PCIe Gen4x4)
2 USB 3.2 Gen1 Type-C (1 Rear 1 Front)
5 USB 3.2 Gen1 Type-A (3 Rear 2 Front)
6 USB 2.0 (2 Rear 4 Front)
Dragon 2.5G LAN
Supports ASRock Auto Driver Installer


Specifications

CPU
Supports 13th Gen & 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
Supports Intel® Hybrid Technology
Supports Intel® Turbo Boost Max 3.0 Technology
Supports Intel® Thermal Velocity Boost (TVB)
Supports Intel® Adaptive Boost Technology (ABT)

Chipset
Intel® B760

Memory
Dual Channel DDR4 Memory Technology
4 x DDR4 DIMM Slots
Supports DDR4 non-ECC un-buffered memory up to 5333+(OC)*
Supports ECC UDIMM memory modules (operate in non-ECC mode)
Max. capacity of system memory: 128GB
Supports Intel® Extreme Memory Profile (XMP) 2.0

BIOS
128Mb AMI UEFI Legal BIOS with GUI support

Graphics
Intel® Xe Graphics Architecture (Gen 12)
1 x HDMI 2.1 TMDS Compatible supports HDCP 2.3 and max. resolution up to 4K 60Hz
1 x DisplayPort 1.4 with DSC (compressed) supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio

LAN
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game Browser and Streaming Modes
User Customized Priority Control

Slots
CPU:
1 x PCIe 4.0 x16 Slot (PCIE1) supports x16 mode
Chipset:
1 x PCIe 4.0 x16 Slot (PCIE3) supports x4 mode*
1 x PCIe 4.0 x1 Slot (PCIE2)*
1 x M.2 Socket (Key E) supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
Supports AMD CrossFire™

Storage
CPU:
1 x Hyper M.2 Socket (M2_1 Key M) supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
1 x Hyper M.2 Socket (M2_2 Key M) supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
4 x SATA3 6.0 Gb/s Connectors
Supports NVMe SSD as boot disks

RAID
Supports RAID 0 RAID 1 RAID 5 and RAID 10 for SATA storage devices

USB
2 x USB 3.2 Gen1 Type-C (1 Rear 1 Front)
5 x USB 3.2 Gen1 Type-A (3 Rear 2 Front)
6 x USB 2.0 (2 Rear 4 Front)
All USB ports support ESD Protection

Connector
1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector
1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header

Rear Panel I/O
2 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C Port
3 x USB 3.2 Gen1 Type-A Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone

Software
ASRock Motherboard Utility (A-Tuning)
ASRock Dragon 2.5G LAN Software
ASRock Polychrome SYNC

UEFI
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Auto Driver Installer
ASRock Instant Flash
ASRock Easy RAID Installer

Accessories
1 x User Manual
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
2 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket

Form Factor
Micro ATX Form Factor: 9.6-in x 9.6-in 24.4 cm x 24.4 cm

OS
Microsoft® Windows® 10 64-bit / 11 64-bit
*Windows® 10 only supports version 21H2 or later

Certifications
FCC CE
ErP/EuP ready (ErP/EuP ready power supply is required)
