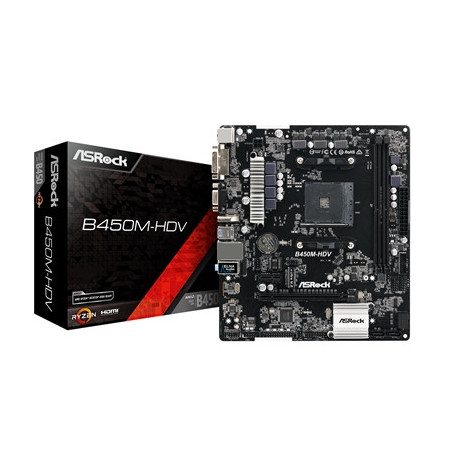

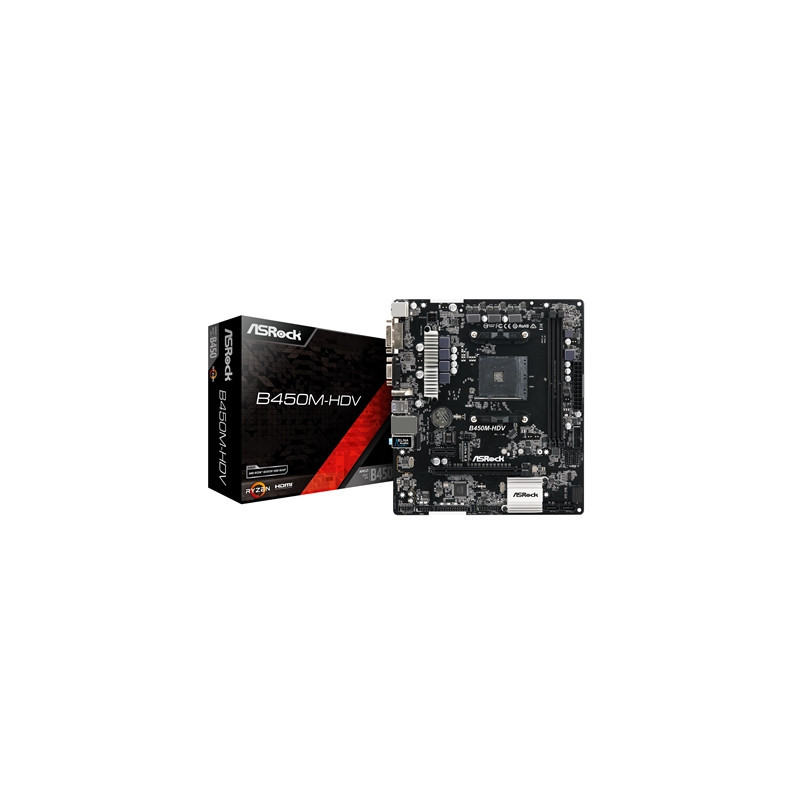

ASRock B450M-HDV R4.0 Super Alloy AMD AM4 Socket Motherboard Micro-ATX 2x DDR4 Slots 1x M.2 Socket GbE LAN 1x D-Sub / 1x DV
£50.28
VAT included
ASRock B450M-HDV R4.0 Super Alloy AMD AM4 Socket Motherboard Micro-ATX 2x DDR4 Slots 1x M.2 Socket GbE LAN 1x D-Sub / 1x DVI-D / 1x HDMI Port
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
B450M-HDV R4.0
KEY FEATURES:
Supports AMD AM4 Socket Ryzen™ 2000 3000 4000 G-Series 5000 and 5000 G-Series Desktop Processors
2 DIMMs Supports DDR4 3200+(OC)*
1 PCIe 3.0 x16 1 PCIe 2.0 x1
Graphics Output : HDMI DVI-D D-Sub
7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
4 SATA3 1 Ultra M.2 (PCIe Gen3x4 & SATA3)*
6 USB 3.1 Gen1 (2 Front 4 Rear)
Realtek Gigabit LAN
*Actual support may vary by CPU
SPECIFICATION:
Unique Feature
ASRock Super Alloy
High Density Glass Fabric PCB
Sapphire Black PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB Audio LAN Ports)
ASRock Live Update & APP Shop
CPU
Supports AMD AM4 Socket Ryzen™ 2000 3000 4000 G-Series 5000 and 5000 G-Series Desktop Processors
6 Power Phase design
Supports CPU up to 105W
Chipset
AMD Promontory B450
Memory
Dual Channel DDR4 Memory Technology
2 x DDR4 DIMM Slots
AMD Ryzen series CPUs (Vermeer) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC un-buffered memory*
AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC un-buffered memory*
AMD Ryzen series APUs (Cezanne) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC un-buffered memory*
AMD Ryzen series APUs (Renoir) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC un-buffered memory*
AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC un-buffered memory*
AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC un-buffered memory*
AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC un-buffered memory*
AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC un-buffered memory*
Max. capacity of system memory: 64GB*
Supports Extreme Memory Profile (XMP)
Memory modules
15µ Gold Contact in DIMM Slots
*For Ryzen Series APUs (Picasso Cezanne Renoir and Raven Ridge) ECC is only supported with PRO CPUs.
Please refer to below table for AMD non-XMP memory frequency support.
SR: Single rank DIMM 1Rx4 or 1Rx8 on DIMM module label
DR: Dual rank DIMM 2Rx4 or 2Rx8 on DIMM module label
**Due to the operating system limitation the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU there is no such limitation.
BIOS
128Mb AMI UEFI Legal BIOS with GUI support
Supports Plug and Play
ACPI 5.1 compliance wake up events
Supports jumperfree
SMBIOS 2.3 support
DRAM Voltage multi-adjustment
Graphics
Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
DirectX 12 Pixel Shader 5.0
Shared memory default 2GB. Max Shared memory supports up to 16GB.**
Three graphics output options: D-Sub DVI-D and HDMi
Supports Triple Monitor
Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz
Supports Auto Lip Sync Deep Color (12bpc) xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
Supports HDCP 1.4 with DVI-D and HDMI Ports
Supports 4K Ultra HD (UHD) playback with HDMI Port
*Actual support may vary by CPU
**The Max shared memory 16GB requires 32GB system memory installed.
Audio
7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
Supports Surge Protection
LAN
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111H
Supports Wake-On-LAN
Supports Lightning/ESD Protection
Supports Energy Efficient Ethernet 802.3az
Supports PXE
Slots
AMD Ryzen series CPUs (Vermeer Matisse Cezanne Renoir Summit Ridge and Pinnacle Ridge)
1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
AMD Ryzen series CPUs (Picasso Raven Ridge)
1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*
AMD Athlon series CPUs
1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)*
1 x PCI Express 2.0 x1 Slot
*Supports NVMe SSD as boot disks
Storage
4 x SATA3 6.0 Gb/s Connectors support RAID (RAID 0 RAID 1 and RAID 10) NCQ AHCI and Hot Plug
1 x Ultra M.2 Socket supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Vermeer Matisse Cezanne Renoir Picasso Summit Ridge Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon series APU)*
*Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
Connector
1 x COM Port Header
1 x TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)*
2 x Chassis Fan Connectors (1 x 3-pin 1 x 4-pin)**
1 x 24 pin ATX Power Connector
1 x 4 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.
Rear Panel I/O
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
2 x USB 2.0 Ports (Supports ESD Protection)
4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
ASRock A-Tuning
UEFI
ASRock Full HD UEFI
ASRock Instant Flash
ASRock Easy RAID Installer
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD
Drivers Utilities AntiVirus Software (Trial Version) Google Chrome Browser and Toolbar
Accessories
I/O Shield
2 x SATA Data Cables
1 x Screw for M.2 Socket
Hardware Monitor
CPU/Chassis temperature sensing
CPU/Chassis Fan Tachometer
CPU/Chassis Quiet Fan
CPU/Chassis Fan multi-speed control
CASE OPEN detection
Voltage monitoring: +12V +5V +3.3V Vcore
Form Factor
Micro ATX Form Factor: 9.0-in x 7.9-in 23.0 cm x 20.1 cm
Solid Capacitor design
OS
Microsoft Windows® 10 64-bit / 11 64-bit*
*Summit Ridge do not officially support Windows® 11.
Certifications
FCC CE
ErP/EuP ready (ErP/EuP ready power supply is required)
