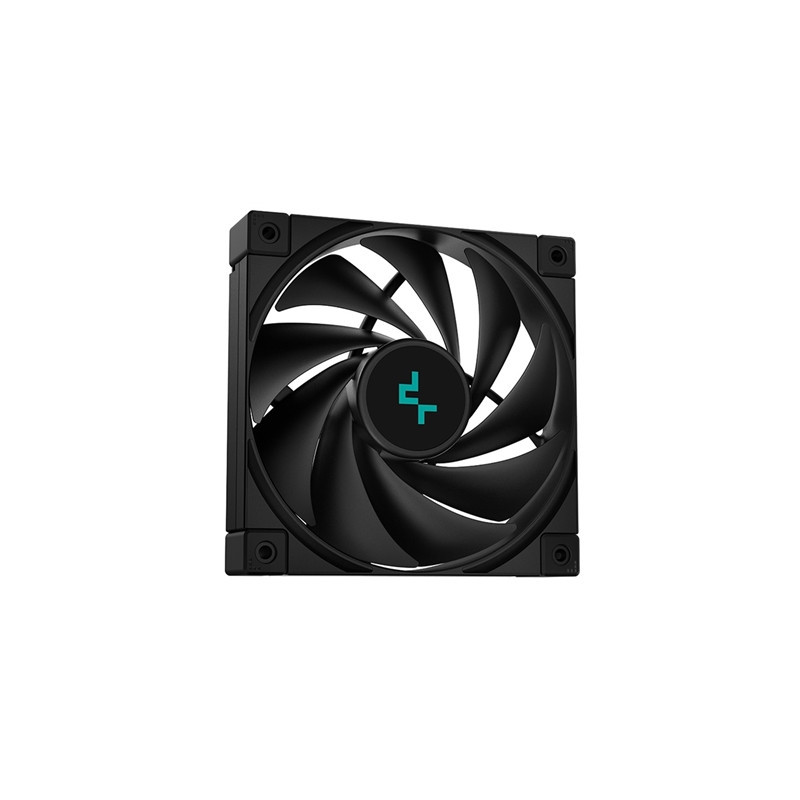

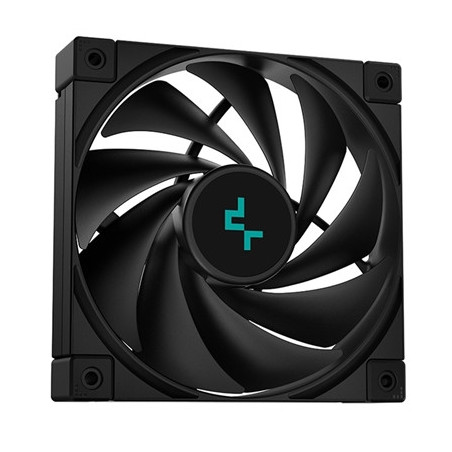

DeepCool FK120 120mm PWM Cooling Fan - High Performance Silent Operation Fluid Dynamic Bearing Black

DESIGNED WITH PRECISION
Carefully constructed and tested to enhance static pressure and concentrate airflow for outstanding cooling performance on any mounting application including cooler heat sinks radiators and case fan configurations. The narrow frame bezel and wide fan blade provides increased surface area to deliver higher efficiency.

ELITE COOLING
Extremely efficient with a PWM range up to 1850RPM that maximizes air pressure and airflow for impressive cooling results while offering dynamic balance between high performance and low-noise operation.

SUPER SILENT
Maxing out at just 28dbA under full load the extremely silent FK120 fan is exceptionally designed for quiet noise levels. The fluid dynamic bearing provides superior performance and reliable long-term stability.

OUTSTANDING DETAILS
High-quality polybutylene terephthalate (PBT) material is used to ensure increased durability and wear resistance allowing the fan blades to maintain high tensile strength. Shock-absorbing rubber pads shield the screw mounts to reduce unnecessary vibrations for stable operation.

Technical Spec

Fan Dimensions
120 x 120 x 25 mm(L x W x H)

Net Weight
170 g

Fan Speed
500~1850 RPM±10%

Fan Airflow
68.99 CFM

Fan Air Pressure
2.19 mmAq

Fan Noise
28 dB(A)

Fan Connector
4-pin PWM

Bearing Type
Fluid Dynamic Bearing

Fan Rated Voltage
12 VDC

Fan Rated Current
0.12 A

Fan Power Consumption
1.44 W

EAN
6933412710622

P/N
R-FK120-BKNPF1-G-1
