be quiet! Shadow Rock TF 2 Fan CPU Cooler Universal Socket Silence-Optimized 135mm PWM Black Cooling Fan 1400RPM 5 Heat Pipe

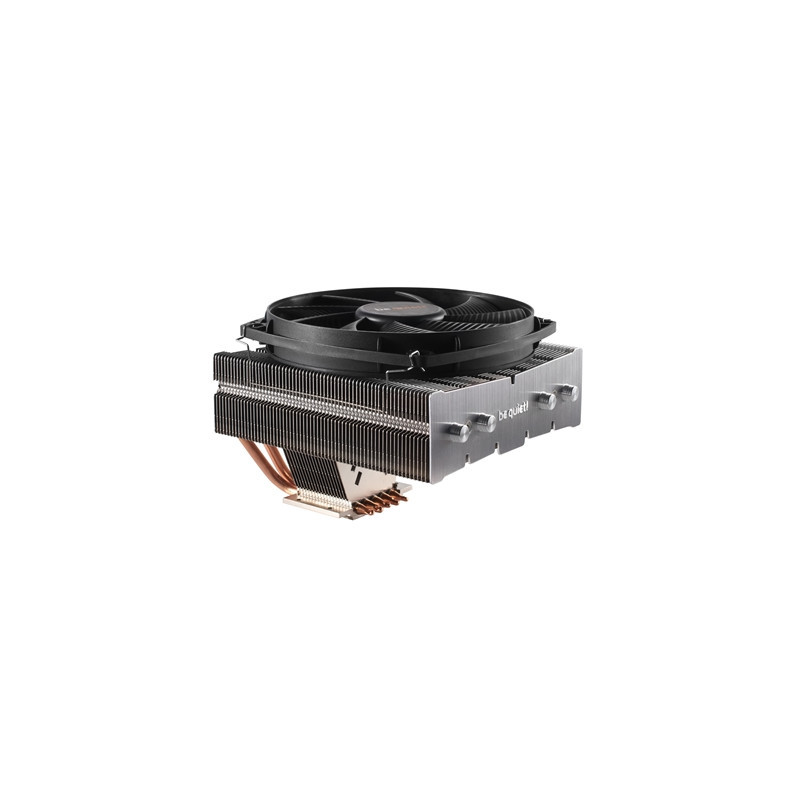

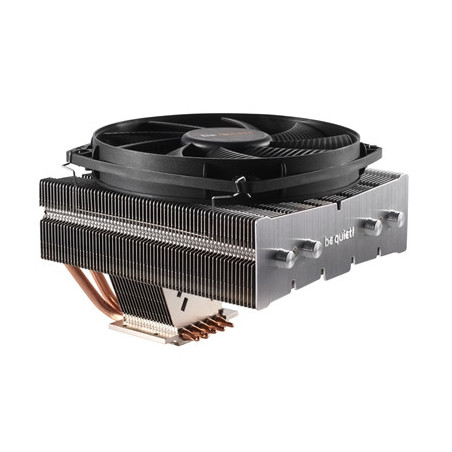

SHADOW ROCK TF 2
COMPACT COOLING SIGNIFICANTLY QUIET
Shadow Rock TF 2 is the perfect cooler for PC systems with restricted space. It offers the best mix of performance and price in the premium compact CPU cooler segment.

- Space-saving top-flow construction
- Very high cooling capacity of 160W TDP
- Direct connection of baseplate to cooling fins for fast heat transfer
- Small diagonally arranged fins create an airflow that ensures perfect cooling for components near to the socket
- Silence-optimized 135mm be quiet! fan (max. 24.4dB(A)) with durable rifle-bearing technology
- 5 high-performance 6mm heat pipes
- Compatibility with Intel and AMD sockets
- 3-year manufacturer’s warranty

HIGH-PERFORMANCE HEAT PIPES
Offering the system an impressive cooling performance
Shadow Rock TF 2 is equipped with five 6mm heat pipes. They carry the heat straight to optimal locations on the cooling fins and provide the system with a remarkable compact cooling capacity of 160W TDP.

DIRECT CONNECTION OF BASEPLATE AND FINS
For highly effective cooling power
An ingenious cooling concept: The baseplate and the cooling fins of Shadow Rock TF 2 are directly connected. This ensures fast heat transfer and optimum cooling efficiency.

EXTREMELY SILENCE-OPTIMIZED OPERATION
Even at 100% fan speed the overall noise is merely 24.4dB(A)
Silent operation typical for be quiet! products is achieved by the silence-optimized 135mm be quiet! fan. Delivering the best balance between cooling performance and quietness its smooth operation is thanks to the 9 airflow-optimized fan blades and durable rifle-bearing technology.

SMALL DIAGONALLY ARRANGED FINS
Produce the perfect airflow
The small diagonal fins on the back of the cooler direct the airflow to guarantee efficient cooling for the CPU as well as components around the Intel or AMD socket.

SPACE-SAVING TOP-FLOW DESIGN
Benefit from this highly functional concept
The top-flow design is perfect for anyone who has to cope with limited space restrictions when building a system. Shadow Rock TF 2 more than solves this problem.

General Data
Model: Shadow Rock TF 2
TDP (W): 160
Color option: Silver
Overall dimensions without mounting material (L x W x H) (mm): 137 x 165 x 87
Total weight (kg): 0.68
Socket compatibility Intel: 775 / 115x / 1200 / 1366 / 2011(-3) Square ILM / 2066
Socket compatibility AMD: AM2(+) / AM3(+) / AM4 / FM1 / FM2(+)
Overall noise level (dB(A)) @ 50/75/100% (rpm): 11.9 / 19.3 / 24.4
Number of fans: 1
Decoupled fan mounting: -

Heatsink Specifications
Dimensions (L x W x H) (mm): 137 x 165 x 112
Fin material: Aluminum
Surface treatment: Brushed
Base material: Copper
CPU contact surface: CNC machined
Heatpipe number / Diameter (mm): 5 / 6

Fan Specifications
Fan model: silence-optimized be quiet! fan
Fan dimensions (mm): 135 x 135 x 22
Speed @ 100% PWM /12V (rpm): 1400
Bearing technology: Rifle
Motor technology: 4-pole fan motor
Rated Voltage (V): 12
Input current (A): 0.11
Input power (W): 1.32
Connector: 4-pin PWM
Lighting connector: -
Cable length (mm): 200
Lifespan (h / 25°C): 80 000

Accessories
Thermal grease (Type): Applied
Mounting set: Intel & AMD
Y-Cable: -
User manual languages: DE EN ES FR PL RU

Safety certification
Approvals: -

Environmental directives
RoHs: -
Triman: -

Logistics Data
Article number: BK003
Dimensions package (L x W x H) (mm): 203 x 178 x 130
Gross weight package (kg): 1.09
