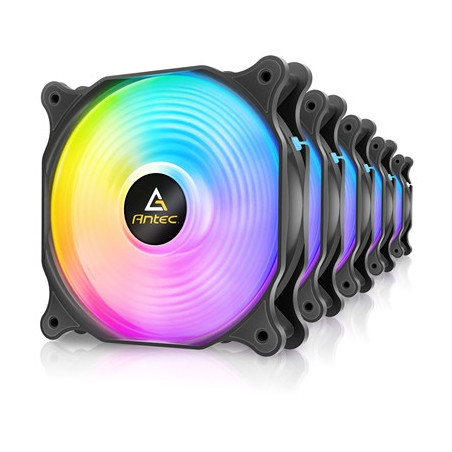

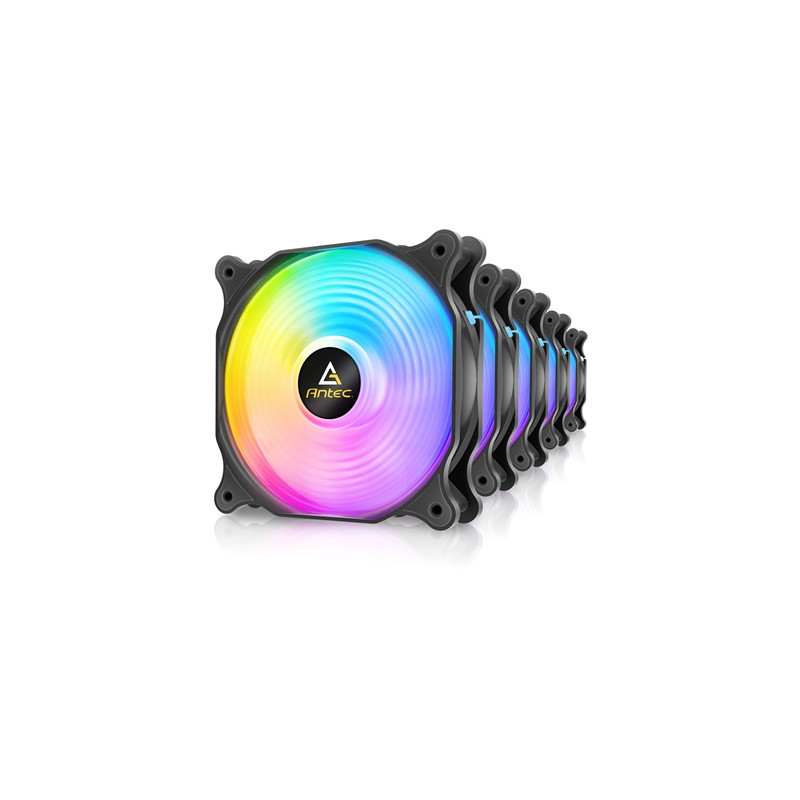

Antec F12 Racing ARGB 120mm PWM Case Fan 3 Pack Hydraulic Bearing 1500 RPM Black

F12 RACING ARGB 120mm PWM Case Fan 3PK With ARGB & PWM Controller

Enhanced Visual Appeal
Under operation the F12 Racing ARGB exhibits a concentric circular lighting effect enhancing the overall visual appeal with its sleek and layered illumination.

Bright ARGB
Full-spectrum ARGB lighting to meet the individual needs of most players and you can enjoy a distinctive vision after powering on.

Superior Heat Dissipation
The seven semi-transparent fan blades feature three-dimensional grooves achieving superior cooling performance.

Hydraulic Bearing Fan
Durable hydraulic bearing with a lifespan of over 40 000 hours.

Quiet & Stable
Equipped with 8 rubber pads which can greatly reduce operating noise and improve efficiency.

ARGB/PWM Controller
FAN: PWM Port (4pin)
LED: ARGB port (3pin)
DC-IN: SATA Power Connector
LED CTRL: External LED Connector (Connect to the reset button of the chassis to turn it into LED control)
LED SPEED: Control the speed of lighting effects (Low/Mid/High)
PWM LED: External Signal Connector (Connect to the Motherboard for ARGB & PWM functions)
MODE: Switch the lighting effects

Specifications

Model Name
F12 R ARGB

Fan Type
ARGB Fan

Dimensions
120 x 120 x 25 mm

Bearing Type
Hydro Bearing

Fan Speed
500 ± 200 - 1500 ± 10% RPM

Airflow
52.75 CFM (max.)

Air Pressure
1.76 mmH2O (max.)

Fan Noise Level
28 dB(A)

Lifespan
40 000 hrs 25°C

Connector
4-pin PWM | 3-pin ARGB

Rated Voltage
FAN: DC 12 V | LED: DC 5 V

Operation Voltage
FAN: DC6.0-13.8V | LED: DC4.5-5.3V

Rated Current
FAN: = 0.15 A | LED: = 0.288 A

Warranty
1 Year
