be quiet! Pure Rock 2 Fan CPU Cooler Universal Socket Pure Wings 2 120mm PWM Black Cooling Fan 1500RPM 4 Heat Pipes 150W TD

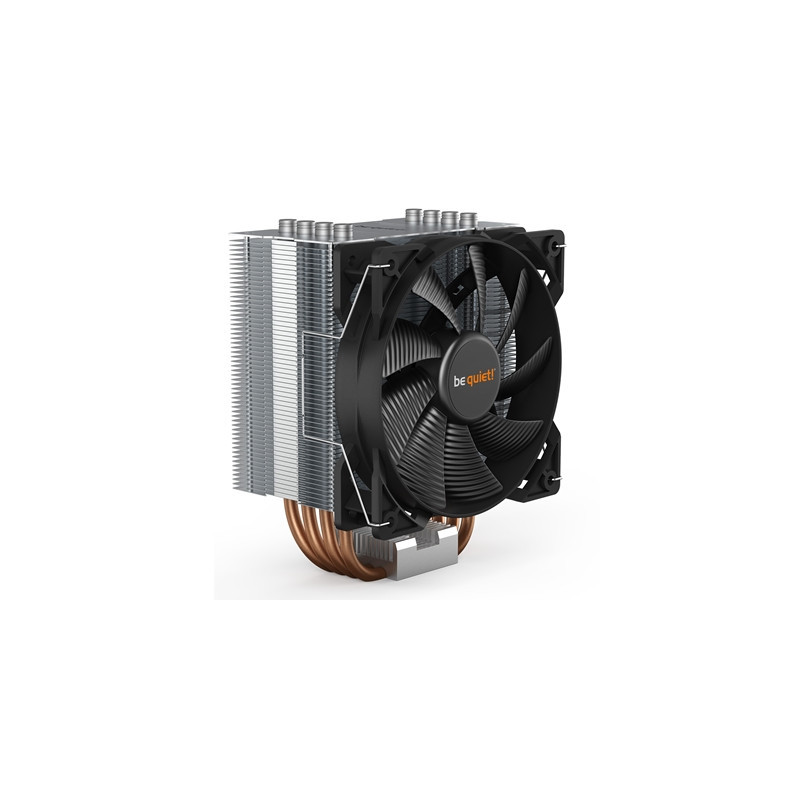

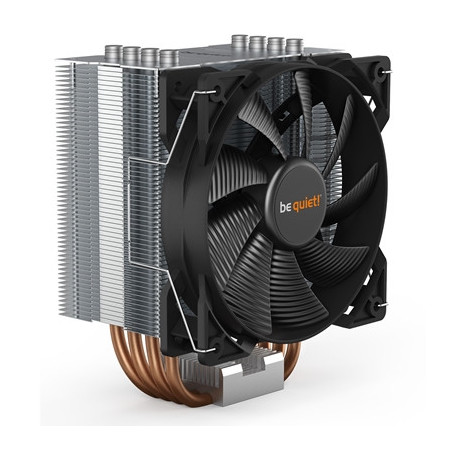

PURE ROCK 2
QUIET AND EFFECTIVE COOLING
Pure Rock 2 is be quiet!’s CPU cooler for silent multimedia and graphics systems. It provides an excellent price-to-performance ratio with 150W TDP cooling efficiency four 6mm heat pipes a Pure Wings 2 120mm PWM fan and convenient design for mounting from atop the motherboard.

- A high 150W TDP cooling efficiency
- 4 high-performance 6mm heat pipes with HDT technology
- Asymmetrical construction avoids blocking memory slots
- Pure Wings 2 120mm PWM fan for silent operation of max. 26.8 dB(A)
- Brushed aluminum finish
- Easily installable installation kit can be mounted from atop the mainboard
- 3-year manufacturer’s warranty

EXCELLENT COOLING EFFICIENCY
An exceptional price-to-performance ratio
Pure Rock 2 is aimed at the essential category of PC systems. With 150W TDP it offers an excellent cooling capacity for multimedia and graphics systems as well as entry level computers of all types.

HIGH-PERFORMANCE HEAT PIPES
Ensuring perfect heat transfer
Pure Rock 2 is equipped with four 6mm heat pipes that have aluminum caps. This is key to its great cooling performance because they transport the heat to optimum locations on the cooling fins.

SILENCE-OPTIMIZED OPERATION
Only 26.8dB(A) even at 100% PWM function
The Pure Wings 2 120mm PWM fan with high-quality rifle bearing facilitates the best balance between cooling performance and silent operation. The 9 blades of the fan are airflow-optimized to reduce noise-generating turbulence.

HIGHLY COMPATIBLE COMPACT DESIGN
Fits well into tight spaces
The asymmetrical construction does not block memory slots saves space and makes Pure Rock 2 compatible with a full set of RAM modules. It is also very convenient to install thanks to the fact you can mount it from above the motherboard.

BRUSHED ALUMINUM FINISH
Great visual appearance at first glance
A high-grade brushed aluminum finish and the aluminum caps guarantee a nice appearance and make the Pure Rock 2 look right in any case.

General Data
Model: Pure Rock 2
TDP (W): 150
Color option: Silver
Overall dimensions without mounting material (L x W x H) (mm): 62 x 121 x 155
Total weight (kg): 0.58
Socket compatibility Intel: 1700 / 1200 / 2066 / 1150 / 1151 / 1155 / 2011(-3) Square ILM
Socket compatibility AMD: AM5 / AM4
Overall noise level (dB(A)) @ 50/75/100% (rpm): 19.1 / 22.1 / 26.8
Number of fans: 1
Decoupled fan mounting: -

Heatsink Specifications
Dimensions (L x W x H) (mm): 87 x 121 x 155
Fin material: Aluminum
Surface treatment: Brushed
Base material: Aluminum / Copper
CPU contact surface: Heat pipe direct touch
Heatpipe number / Diameter (mm): 4 / 6

Fan Specifications
Fan model: Pure Wings 2 120mm PWM
Fan dimensions (mm): 120 x 120 x 25
Speed @ 100% PWM /12V (rpm): 1500
Bearing technology: Rifle
Motor technology: 4-pole fan motor
Rated Voltage (V): 12
Input current (A): 0.12
Input power (W): 1.44
Connector: 4-pin PWM
Lighting connector: -
Cable length (mm): 220
Lifespan (h / 25°C): 80 000

Accessories
Thermal grease (Type): Applied
Mounting set: Intel & AMD
Y-Cable: -
User manual languages: CN DE EN ES FR PL RU TW

Safety certification
Approvals: -

Environmental directives
RoHs: -
Triman: -

Logistics Data
Article number: BK006
Dimensions package (L x W x H) (mm): 180 x 130 x 180
Gross weight package (kg): 0.98
