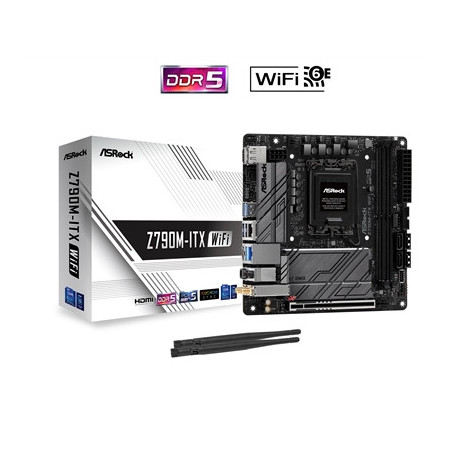

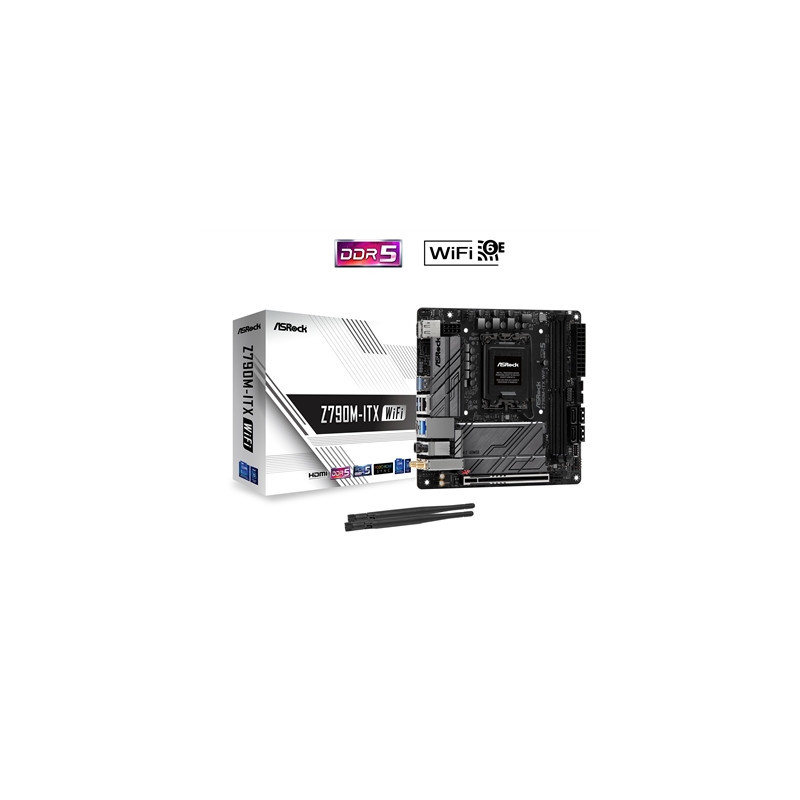

ASRock Z790M-ITX WiFi Intel 1700 Socket Motherboard Mini-ITX 2x DDR5 Slots 2x M.2 Sockets 2.5GbE + 1GbE LAN Wi-Fi 6E 1x DisplayPort / 1x HDMI Port

Z790M-ITX WiFi

Unique Feature
Superb Productivity
- PCIe Gen5 (Graphic)
- Dual Channel DDR5
Rock-Solid Durability
- 7+1+1 Power Phase 50A Dr.MOS for VCore+GT
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
Ultrafast Connectivity
- 2.5G LAN 802.11ax Wi-Fi 6E Module
EZ Update
- ASRock Auto Driver Installer

CPU
- Supports 14th 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- Supports Intel® Hybrid Technology
- Supports Intel® Turbo Boost Max 3.0 Technology
- Supports Intel® Thermal Velocity Boost (TVB)
- Supports Intel® Adaptive Boost Technology (ABT)

Chipset
- Intel® Z790

Memory
- Dual Channel DDR5 Memory Technology
- 2 x DDR5 DIMM Slots
- Supports DDR5 non-ECC un-buffered memory up to 7000+(OC)*
- Max. capacity of system memory: 128GB
- Supports Intel® Extreme Memory Profile (XMP) 3.0

BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support

Graphics
- Intel® Xe Graphics Architecture (Gen 12)
- 1 x eDP 1.4 supports max. resolution up to Full HD 60Hz
- 1 x HDMI 2.1 TMDS Compatible supports HDCP 2.3 and max. resolution up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed) supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio

LAN
- 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Intel® I226V)
- 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V)

Wireless LAN
- 802.11ax Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ac/ax
- Supports Dual-Band 2x2 with extended 6GHz band support*
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.3 + High speed class II
- Supports MU-MIMO

Slots
CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1) supports x16 mode*
Chipset:
- 1 x Vertical M.2 Socket (Key E) supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

Storage
CPU:
- 1 x Hyper M.2 Socket (M2_1 Key M) supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_2 Key M) supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connectors

RAID
- Supports RAID 0 RAID 1 RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0 RAID 1 and RAID 5 for M.2 NVMe storage devices*

USB
- 1 x USB 3.2 Gen2x2 Type-C (Rear)
- 1 x USB 3.2 Gen2x2 Type-C (Front)
- 4 x USB 3.2 Gen2 Type-A (Rear)
- 2 x USB 3.2 Gen1 (Front)
- 3 x USB 2.0 (1 Rear 2 Front)

Connector
- 1 x eDP Signal Connector
- 1 x RGB LED Header*
- 1 x Addressable LED Header**
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
- 2 x Chassis Fan Connectors (4-pin)****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

Rear Panel I/O
- 2 x Antenna Ports
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x Optical SPDIF Out Port
- 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
- 1 x USB 2.0 Port
- 2 x RJ-45 LAN Ports
- 1 x Line Out Jack (Gold Audio Jack)
- 1 x Microphone Input Jack (Gold Audio Jack)

Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Polychrome SYNC
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Easy RAID Installer

Accessories
- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- 2 x Screws for M.2 Sockets

Form Factor
- Mini-ITX Form Factor: 6.7-in x 6.7-in 17.0 cm x 17.0 cm
- 8 Layer PCB

OS
- Microsoft Windows® 10 64-bit / 11 64-bit

Certifications
- FCC CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
