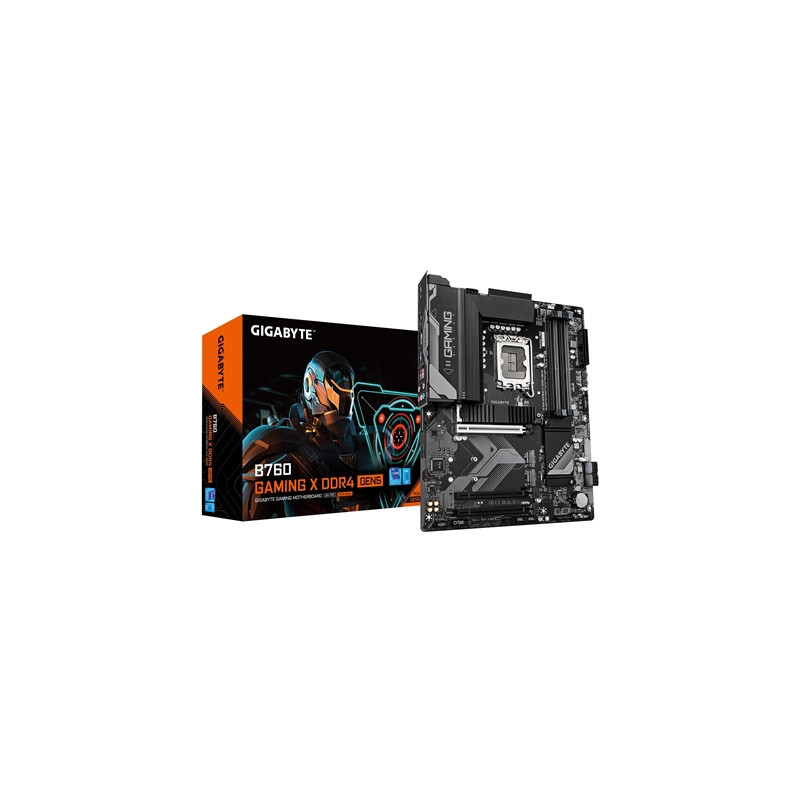

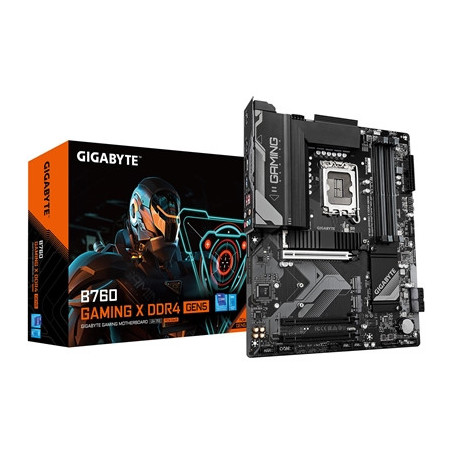

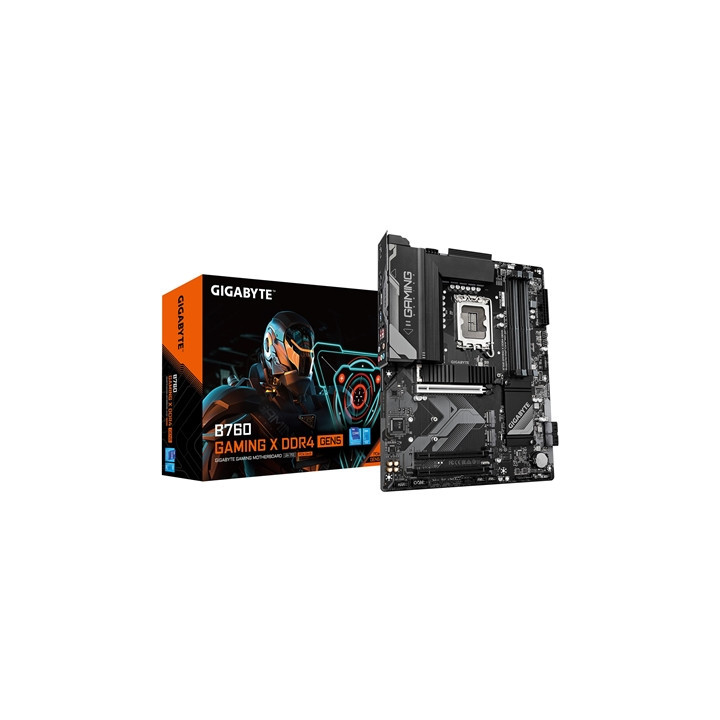

Gigabyte B760 GAMING X DDR4 GEN5 Intel 1700 Socket Motherboard ATX 4x DDR4 Slots 3x M.2 Sockets Fitted I/O Shield 2.5GbE LAN 1x DisplayPort / 1x HDMI Port

B760 GAMING X DDR4 GEN5

KEY FEATURES:
PCIe Gen5 Performance : Perfect Sync to Win
Supports Intel® Core™ 14th/ 13th/12 processors
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design
PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support
Unparalleled Performance : Hybrid 8+1+1 Phases VRM Solution
Dual Channel DDR4 : 4*DIMMs with XMP Memory Module Support
Fast Networks : 2.5GbE LAN
Extended Connectivity : Front USB-C® 10Gb/s DP HDMI
Next Generation Storage : 3*PCIe 4.0 x4 M.2 Connectors
Smart Fan 6 : Features Multiple Temperature Sensors Hybrid Fan Headers with FAN STOP
Q-Flash Plus : Update BIOS Without Installing the CPU Memory and Graphics Card

SPECIFICATION:

CPU
LGA1700 socket: Support for the 14th 13th and 12th Generation Intel® Core™ Pentium® Gold and Celeron® Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU

Chipset
Intel® B760 Express Chipset

Memory
Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer Memory Support List for more information.)

BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a DMI 2.7 WfM 2.0 SM BIOS 2.7 ACPI 5.0

Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x DisplayPort supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3


- 1 x HDMI port supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.

Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio access the audio software for audio settings.

Support for S/PDIF Out

LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless LAN
N/A

Slots
CPU:
- 1 x PCI Express x16 slot supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed be sure to install it in the PCIEX16 slot.

Chipset:
- 2 x PCI Express x16 slots supporting PCIe 3.0 and running at x1 (PCIEX1_1 PCIEX1_2)

Storage
CPU:
- 1 x M.2 connector (Socket 3 M key type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 2 x M.2 connectors (Socket 3 M key type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB M2M_SB)
- 4 x SATA 6Gb/s connectors

RAID
RAID 0 RAID 1 RAID 5 and RAID 10 support for SATA storage devices

USB
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2 support available through the internal USB header
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 1 x USB Type-C® port on the back panel with USB 3.2 Gen 1 support
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel 2 ports available through the internal USB header)
- 1 x USB 2.0/1.1 port on the back panel
Chipset+2 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel 4 ports available through the internal USB headers)

Connector
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

Rear Panel I/O
1 x USB 3.2 Gen 2 Type-A port (red)
2 x USB 3.2 Gen 1 ports
5 x USB 2.0/1.1 ports
1 x DisplayPort*
1 x HDMI port*
1 x RJ-45 port
6 x audio jacks

Form Factor
ATX Form Factor; 30.5cm x 24.4cm

OS
Support for Windows 11 64-bit
Support for Windows 10 64-bit
