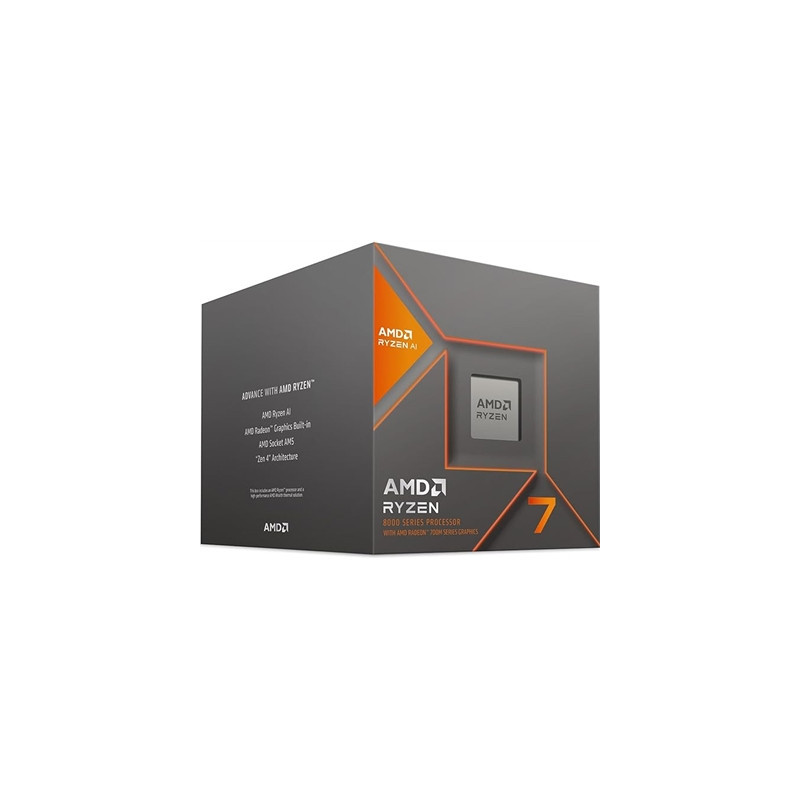

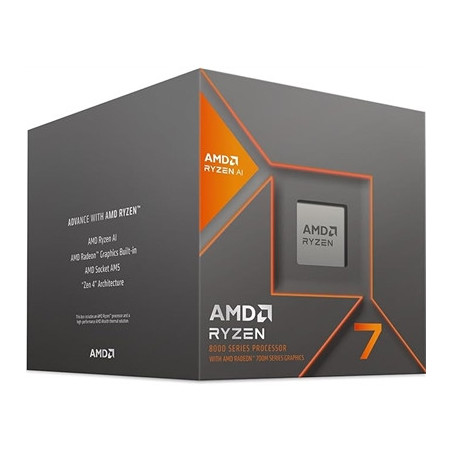

AMD Ryzen7 8700G 8 Core AM5 Processor 4.2GHz up to 5.1GHz Boost 24MB Cache 65W Radeon 780MGraphics

AMD Ryzen 7 8700G with AMD Ryzen AI is the ultimate all-in-one desktop processor with AMD Radeon 780M Graphics capabilities

Unrivaled Performance: AMD Ryzen 7 8700G 4.2GHz 8 Core AM5 Processor
Unlock the potential of your system with the latest generation AMD Ryzen 7 8700G processor. Boasting a formidable 4.2GHz base clock and an octa-core configuration this AM5 processor redefines performance standards. Say goodbye to lag and hello to seamless multitasking all powered by 12 threads and an impressive 5.1GHz boost clock.

Turbocharged Productivity: 12 Threads and 5.1GHz Boost
Experience the pinnacle of multitasking efficiency with 12 threads that effortlessly handle demanding workloads. The AMD Ryzen 7 8700G doesn't just stop there – enjoy a turbocharged 5.1GHz boost clock for accelerated performance in every task from content creation to resource-intensive applications.

Immersive Visuals: Radeon Graphics Redefined
Elevate your visual experience with the inbuilt AMD Radeon 780M graphics. The AMD Ryzen 7 8700G processor ensures stunning visuals and smooth gaming experiences all without the need for a dedicated graphics card. Immerse yourself in high-quality graphics and redefine your gaming and entertainment expectations.

General Specifications

Name
AMD Ryzen 7 8700G

Family
Ryzen

Series
Ryzen 8000 Series

Form Factor
Desktops

AMD PRO Technologies
No

Regional Availability
Global

Processor Architecture
Zen 4

# of CPU Cores
8

Multithreading (SMT)
Yes

# of Threads
16

Max. Boost Clock
Up to 5.1 GHz

Base Clock
4.2 GHz

L2 Cache
8 MB

L3 Cache
16 MB

Default TDP
65W

AMD Configurable TDP (cTDP)
45-65W

Processor Technology for CPU Cores
TSMC 4nm FinFET

CPU Compute Die (CCD) Size
178mm²

Package Die Count
1

Unlocked for Overclocking
Yes

AMD EXPO Memory Overclocking Technology
Yes

Precision Boost Overdrive
Yes

Curve Optimizer Voltage Offsets
Yes

AMD Ryzen Master Support
Yes

CPU Socket
AM5

Supporting Chipsets
A620 X670E X670 B650E B650 X870E X870 B840 B850

CPU Boost Technology
Precision Boost 2

Instruction Set
x86-64

Supported Extensions
AES AMD-V AVX AVX2 AVX512 FMA3 MMX-plus SHA SSE SSE2 SSE3 SSE4.1 SSE4.2 SSE4A SSSE3 x86-64

Max. Operating Temperature (Tjmax)
95C

OS Support
Windows 11 - 64-Bit Edition Windows 10 - 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit

Connectivity

Native USB 4 (40Gbps)
2

Native USB 3.2 Gen 2 (10Gbps)
2

Native USB 2.0 (480Mbps)?
1

PCI Express Version
PCIe 4.0

Native PCIe Lanes (Total/Usable)
20 16

NVMe Support
Boot RAID0 RAID1

System Memory Type
DDR5

Memory Channels
2

Max. Memory
256 GB

System Memory Subtype
UDIMM

Max Memory Speed
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600

ECC Support
Yes (Requires platform support)

Graphics Capabilities

Graphics Model
AMD Radeon 780M

Graphics Core Count
12

Graphics Frequency
2900 MHz

DirectX Version
12

DisplayPort Version
2.1

DisplayPort Extensions
Adaptive-Sync HDR Metadata UHBR10
DisplayPort Max Refresh Rates (SDR)
7680x4320 @ 60Hz 3840x2160 @ 240Hz 3440x1440 @ 360Hz 2560x1440 @ 480Hz 1920x1080 @ 600Hz
DisplayPort Max Refresh Rates (HDR)
7680x4320 @ 60Hz 3840x2160 @ 240Hz 3440x1440 @ 360Hz 2560x1440 @ 480Hz 1920x1080 @ 600Hz

HDMI Version
2.1

HDCP Version Supported
2.3

USB Type-C DisplayPort Alternate Mode
Yes

Multi-Monitor Support
Yes

Max Displays
4

AMD FreeSync
Yes

Wireless Display
Miracast

Max Video Encode Bandwidth (SDR)
1080p630 8bpc H.264 1440p373 8bpc H.264 2160p175 8bpc H.264 1080p630 8bpc H.265 1440p373 8bpc H.265 2160p175 8bpc H.265 4320p43 8bpc H.265 1080p864 8/10bpc AV1 1440p513 8/10bpc AV1 2160p240 8/10bpc AV1 4320p60 8/10bpc AV1

Max Video Decode Bandwidth
1080p60 8bpc MPEG2 1080p60 8bpc VC1 1080p786 8/10bpc VP9 2160p196 8/10bpc VP9 4320p49 8/10bpc VP9 1080p1200 8bpc H.264 2160p300 8bpc H.264 4320p75 8bpc H.264 1080p786 8/10bpc H.265 2160p196 8/10bpc H.265 4320p49 8/10bpc H.265 1080p960 8/10bpc AV1 2160p240 8/10bpc AV1 4320p60 8/10bpc AV1

AMD SmartAccess Memory
Available

AI Engine Capabilities

Brand Name
AMD Ryzen AI

AMD Ryzen AI
Available

Performance
Up to 16 TOPS
