AMD Ryzen 7 8700F AM5 Processor 8 Core 16 Threads 4.1GHz up to 5GHz Boost 16MB Cache 65W

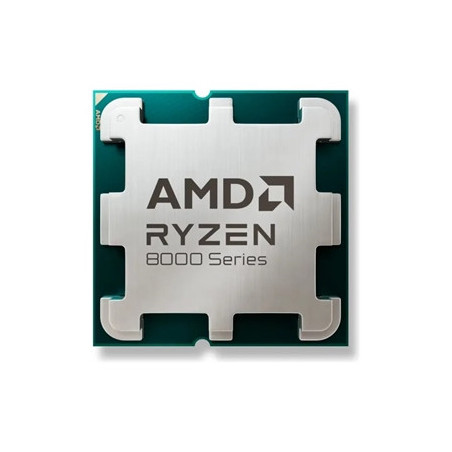

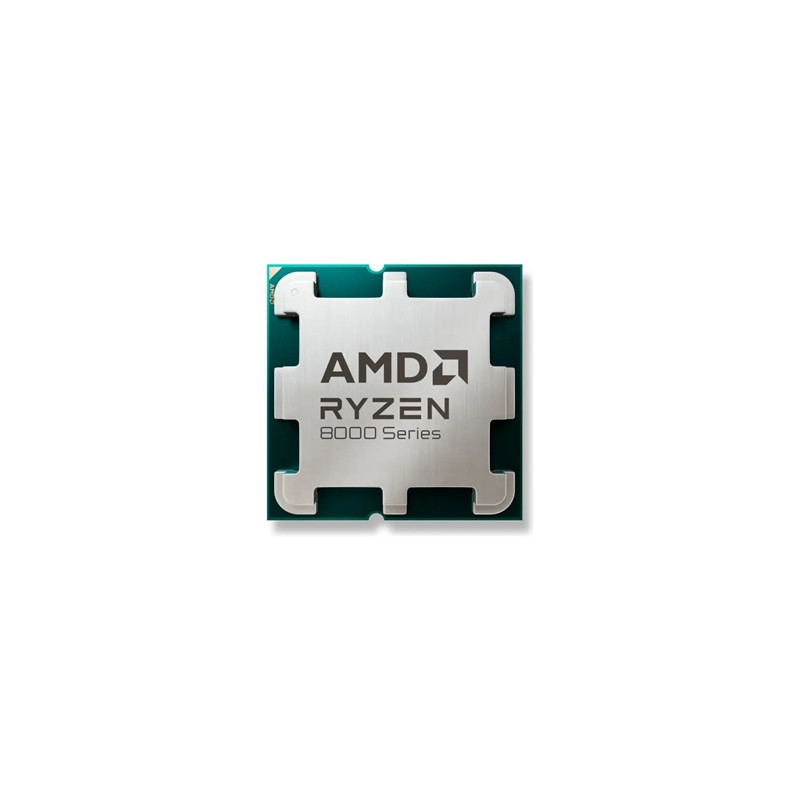

AMD Ryzen 7 8700F Processor

AMD Ryzen 7 8700F processor is the starting point for a serious gaming PC.

Specifications

Name
AMD Ryzen 7 8700F

Family
Ryzen

Series
Ryzen 8000 Series

Form Factor
Desktops

AMD PRO Technologies
No

Regional Availability
Global

Former Codename
Phoenix

Processor Architecture
Zen 4

# of CPU Cores
8

Multithreading (SMT)
Yes

# of Threads
16

Max. Boost Clock
Up to 5 GHz

Base Clock
4.1 GHz

L2 Cache
8 MB

L3 Cache
16 MB

Default TDP
65W

AMD Configurable TDP (cTDP)
45-65W

Processor Technology for CPU Cores
TSMC 4nm FinFET

CPU Compute Die (CCD) Size
178mm²

Package Die Count
1

Unlocked for Overclocking
Yes

AMD EXPO Memory Overclocking Technology
Yes

Precision Boost Overdrive
Yes

Curve Optimizer Voltage Offsets
Yes

AMD Ryzen Master Support
Yes

CPU Socket
AM5

Supporting Chipsets
A620 X670E X670 B650E B650 X870E X870 B840 B850

CPU Boost Technology
Precision Boost 2

Instruction Set
x86-64

Supported Extensions
AES AMD-V AVX AVX2 AVX512 FMA3 MMX-plus SHA SSE SSE2 SSE3 SSSE3 SSE4.1 SSE4.2 SSE4A x86-64

Max. Operating Temperature (Tjmax)
95C

*OS Support
Windows 11 - 64-Bit Edition Windows 10 - 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit

Connectivity

Native USB 4 (40Gbps)
2

Native USB 3.2 Gen 2 (10Gbps)
2

Native USB 2.0 (480Mbps)
1

PCI Express Version
PCIe 4.0

Native PCIe Lanes (Total/Usable)
20 16

NVMe Support
Boot RAID0 RAID1

System Memory Type
DDR5

Memory Channels
2

Max. Memory
256 GB

System Memory Subtype
UDIMM

Max Memory Speed
2x1R DDR5-5200
2x2R DDR5-5200
4x1R DDR5-3600
4x2R DDR5-3600

Graphics Capabilities

Graphics Model
Discrete Graphics Card Required

AMD SmartAccess Memory
Available

AI Engine Capabilities

AMD Ryzen AI
Available

Performance
Up to 16 TOPS

Security
AMD Enhanced Virus Protection (NX bit) - Yes
