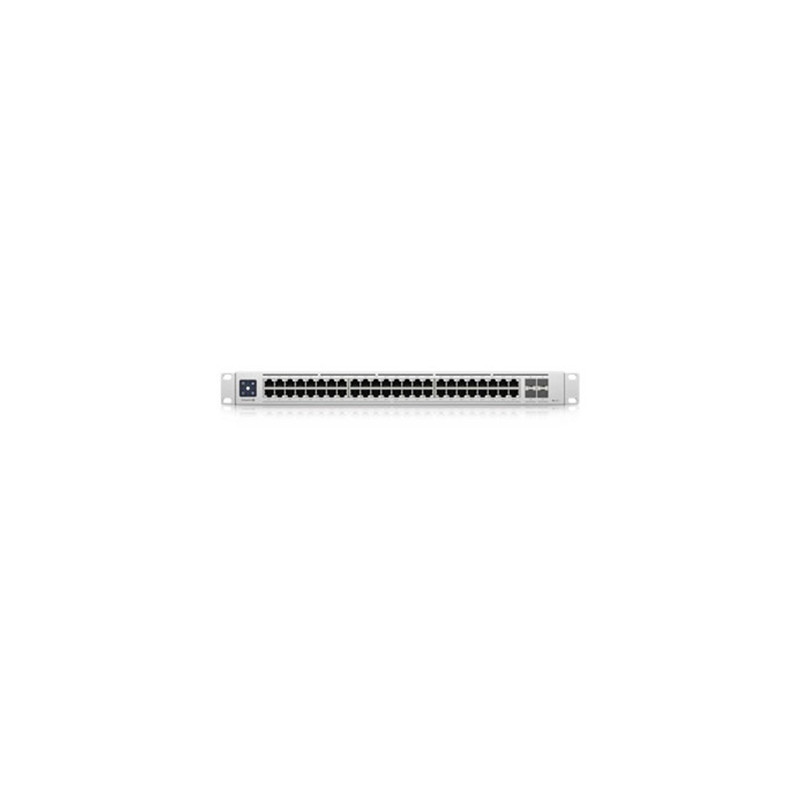

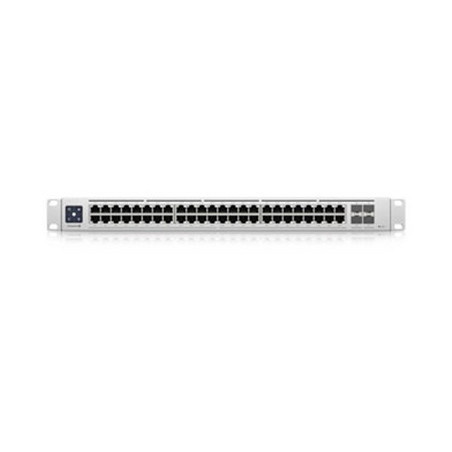

Ubiquiti USW-Enterprise-48-PoE UniFi 48-Port Layer 3 Managed Rackmount 2.5-Gigabit PoE+ Switch w/ 4 x 10GbE SFP+ Ports (720W)

Ubiquiti USW-Enterprise-48-PoE UniFi Layer PoE+ 48 Port Gigabit Switch

The Ubiquiti USW-Enterprise-48-PoE UniFi 48-Port Layer 3 Managed Rackmount 2.5-Gigabit PoE+ Switch is a configurable Layer 3 switch with auto-sensing 802.3at PoE+ that is designed to build and expand your network. It offers forty-eight (48) 2.5GbE RJ45 Ethernet ports and four (4) 10GbE SFP+ ports providing 2.5GbE PoE links to your WiFi 6 APs and 10GbE fibre uplinks to your network. The USW-Enterprise-48-PoE features a 1.3-inch touch LCM. Managed and configured by the UniFi Network application with UniFi Network mobile app support the USW-Enterprise-48-PoE offers Layer 3 switching protocols and features including operation mode (switching mirroring or aggregate) per port. The UniFi Network application and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

Key Features
Forty-eight (48) 2.5GbE 802.3af/at PoE+ RJ45 Ports.
Four (4) 10GbE SFP+ Ports.
USP RPS Support for Redundant Power Backup (sold separately see accessories tab).
720W Maximum PoE Power.
1.3-inch Touch LCM with AR Switch Management.
Managed with UniFi Network Application and Mobile app.

Works with UniFi Network Application
Manage Your Networks from a Single Control Plane
Intuitive and Robust Configuration Control and Monitoring
Remote Firmware Upgrade
Users and Guests
Guest Portal/Hotspot Support

Specifications

Edition
Smart Managed Switch

Total Network Ports
48 x 100/1000/2.5G BASE-T RJ45 4 x SFP+

PoE Support Type
PoE+

No. of Ports Providing PoE
48 x 100/1000/2.5G BASE-T RJ45

Switching Capacity
320 Gbps

Non-Blocking Throughput
160 Gbps

Forwarding Rate
238.095 Mpps

Network Protocols
IEEE 802.3af
IEEE 802.3at

Max. Power Consumption
(Excluding PoE Output) 150 W

Max. PoE Wattage per Port
34.2 W


Power Supply
PoE

Material
SGCC
