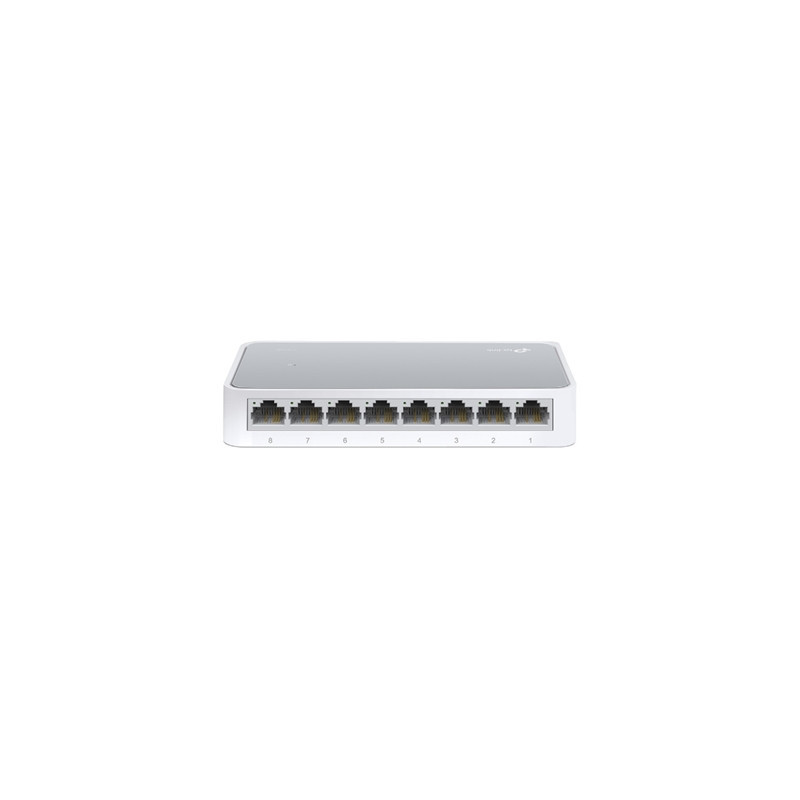

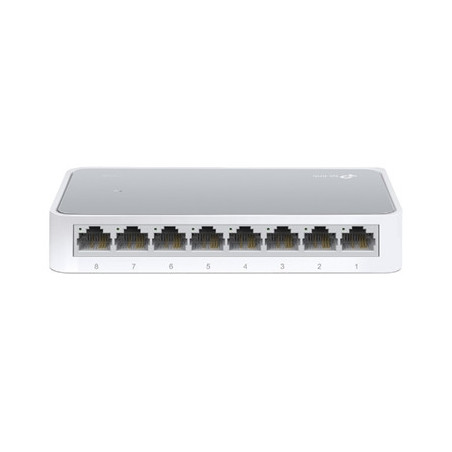

TP-Link SOHO TL-SF1008D 8-Port 10/100Mbps Desktop Switch
£18.68
VAT included
TP-Link SOHO TL-SF1008D 8-Port 10/100Mbps Desktop Switch
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
8-Port 10/100Mbps Desktop Switch
Key Features
port 10/100M Fast Ethernet Desktop Switch
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for half-duplex mode
Supports MAC address auto-learning and auto-aging
LED indicators for monitoring power link activity
Plastic case desktop or wall-mounting design
External Power Adapter supply
What This Product Does
TL-SF1008D 8-port 10/100Mbps Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server a hub or a switch using straight cable or crossover cable.
High Performance
TL-SF1008D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture TL-SF1008D forwards and filters packets at full wire-speed for maximum throughput. IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1008D work reliably.
Easy to Use
The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10 100 Mbps) and intelligently adjusts for compatibility and optimal performance.
Specifications
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3 IEEE 802.3u IEEE 802.3x
CSMA/CD
Interface
8 10/100Mbps Ports Auto-Negotiation Auto-MDI/MDIX
Fan Quantity
Fanless
Power Supply
External Power Adapter(Output: 5.0VDC / 0.6A)
External Power Supply
100-240VAC 50/60Hz
Buffer Size
768Kb
Data Rates
10/100Mbps at Half Duplex ;
20/200Mbps at Full Duplex
LED Indicator
Power 1 2 3 4 5 6 7 8
Dimensions ( W x D x H )
5.3 x 3.1 x 0.9 in. (134.5 x 79 x 22.5mm)
Max Power Consumption
2.05W(220V/50Hz)
Max Heat Dissipation
6.99BTU/h
SOFTWARE FEATURES
Transfer Method
Store and Forward
Advanced Functions
Green Technology
802.3X Flow Control Back Pressure
OTHERS
Certification
FCC CE RoHS
Package Contents
8-Port 10/100Mbps Desktop Switch
Power Adapter
Installation Guide
Environment
Operating Temperature: 0°C~40°C (32°F~104°F);
Storage Temperature: -40?~60? (-40?~140?);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
Key Features
port 10/100M Fast Ethernet Desktop Switch
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for half-duplex mode
Supports MAC address auto-learning and auto-aging
LED indicators for monitoring power link activity
Plastic case desktop or wall-mounting design
External Power Adapter supply
What This Product Does
TL-SF1008D 8-port 10/100Mbps Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server a hub or a switch using straight cable or crossover cable.
High Performance
TL-SF1008D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture TL-SF1008D forwards and filters packets at full wire-speed for maximum throughput. IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1008D work reliably.
Easy to Use
The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10 100 Mbps) and intelligently adjusts for compatibility and optimal performance.
Specifications
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3 IEEE 802.3u IEEE 802.3x
CSMA/CD
Interface
8 10/100Mbps Ports Auto-Negotiation Auto-MDI/MDIX
Fan Quantity
Fanless
Power Supply
External Power Adapter(Output: 5.0VDC / 0.6A)
External Power Supply
100-240VAC 50/60Hz
Buffer Size
768Kb
Data Rates
10/100Mbps at Half Duplex ;
20/200Mbps at Full Duplex
LED Indicator
Power 1 2 3 4 5 6 7 8
Dimensions ( W x D x H )
5.3 x 3.1 x 0.9 in. (134.5 x 79 x 22.5mm)
Max Power Consumption
2.05W(220V/50Hz)
Max Heat Dissipation
6.99BTU/h
SOFTWARE FEATURES
Transfer Method
Store and Forward
Advanced Functions
Green Technology
802.3X Flow Control Back Pressure
OTHERS
Certification
FCC CE RoHS
Package Contents
8-Port 10/100Mbps Desktop Switch
Power Adapter
Installation Guide
Environment
Operating Temperature: 0°C~40°C (32°F~104°F);
Storage Temperature: -40?~60? (-40?~140?);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
