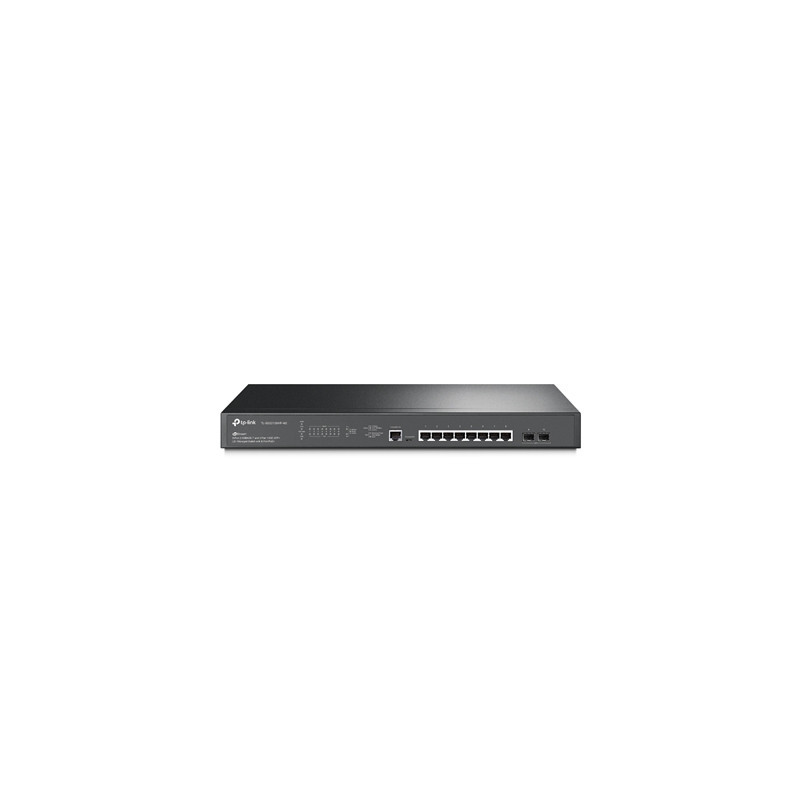

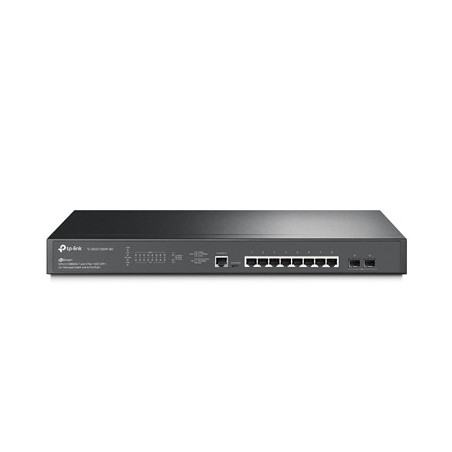

TP-Link JetStream TL-SG3210XHP-M2 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+ (240W)

JetStream 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+

Key Features
2.5G PoE+ Ports for WiFi 6: 8 x 2.5 Gbps ports smash the gigabit barrier and unlock the full potential of WiFi 6 APs.
10G Lightning-Fast Uplink: 2 x 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
240 W PoE Budget: 8 x 802.3at/af-compliant PoE+ ports with a total power supply of 240 W.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP) Centralized Cloud Management and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Static Routing: Helps route internal traffic for more efficient use of network resources.
Robust Security Strategies: IP-MAC-Port Binding ACL Port Security DoS Defend Storm control DHCP Snooping 802.1X Radius Authentication and more.
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

Unlock the Full Potential of WiFi 6 with Multi-Gigabit PoE+ Ports
Featuring 8 x 2.5 Gbps PoE+ ports the switch is capable of future network expansion and deployment providing sufficient bandwidth for incoming WiFi 6 APs. Designed to use a single Ethernet cable for both data and power transmission it supports up to 240 W total PoE power budget and flexible installation to fit in various application scenarios.

Enterprise Switch with 10G Uplink
2 x 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency so reliable and lightning-fast connections to servers and other switches are easily built.

Software-Defined Networking (SDN) with Cloud Access
Omada’s Software-Defined Networking (SDN) platform integrates network devices including access points switches and gateways providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided ideal for use in hospitality education retail offices and more.

Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network providing a reliable and efficient solution for enterprises campuses and ISPs.

Secure Networking
Security features include IP-MAC-Port-VID Binding Port Security Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available making it easier than ever to prevent them. In addition the Access Control Lists (ACL L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address IP address TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.

Enterprise Level Features
A complete lineup of L2+ features are supported including 802.1Q VLAN Port Mirroring STP/RSTP/MSTP Link Aggregation Control Protocol and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers cutting out unnecessary traffic while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.

Advanced QoS
Voice and video traffic can be prioritized based on IP address MAC address TCP port number UDP port number and more. With QoS (Quality of Service) voice and video services remain smooth even when bandwidth is in short supply.

ISP Features
sFlow QinQ L2PT PPPoE ID Insertion and IGMP authentication features are provided developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.

IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack MLD Snooping IPv6 ACL DHCPv6 Snooping IPv6 Interface Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.

Specifications

HARDWARE FEATURES

Interface
8 x 100/1000/2500 Mbps RJ45 Ports
2 x 10G SFP+ Slots
1 x RJ45 Console Port
1 x Micro-USB Console Port

Fan Quantity
2

Power Supply
100-240 V AC~50/60 Hz

PoE Ports (RJ45)
Standard: 802.3at/af compliant
PoE+ Ports: 8 Ports
PoE Power Budget: 240 W

Dimensions ( W x D x H )
17.3 x 7.1 x 1.7 in (440 x 180 x 44 mm)

Mounting
Rack Mountable

Max Power Consumption
17.24 W (110V/60Hz) (no PD connected)
291.49 W (110V/60Hz) (with 240 W PD connected)

Max Heat Dissipation
58.82 BTU/h (110 V/60 Hz) (no PD connected)
994.56 BTU/h (110 V/60 Hz) (with 240 W PD connected)

PERFORMANCE

Switching Capacity
80 Gbps

Packet Forwarding Rate
59.52 Mpps

MAC Address Table
16 K

Packet Buffer Memory
12 Mbit

Jumbo Frame
9 KB

SOFTWARE FEATURES

Quality of Service
8 priority queues
802.1p CoS/DSCP priority
Queue scheduling
SP (Strict Priority)
WRR (Weighted Round Robin)
SP+WRR
Bandwidth Control
Port/Flow based Rating Limiting
Smoother Performance
Action for Flows
Mirror (to supported interface)
Redirect (to supported interface)
Rate Limit
QoS Remark

L3 Features
16 IPv4/IPv6 Interfaces
Static Routing
48 static routes
Static ARP
128 Static Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay
DHCP Interface Relay
DHCP VLAN Relay
DHCP L2 Relay

L2 and L2+ Features
Link Aggregation
static link aggregation
802.3ad LACP
Up to 8 aggregation groups containing 8 ports per group
Spanning Tree Protocol
802.1d STP
802.1w RSTP
802.1s MSTP
STP Security: TC Protect BPDU Filter Root Protect
Loopback Detection
Port based
VLAN based
Flow Control
802.3x Flow Control
HOL Blocking Prevention
Mirroring
Port Mirroring
CPU Mirroring
One-to-One
Many-to-One
Tx/Rx/Both

L2 Multicast
IGMP Snooping
IGMP v1/v2/v3 Snooping
Fast Leave
IGMP Snooping Querier
IGMP Authentication
IGMP Authentication
MLD Snooping
MLD v1/v2 Snooping
Fast Leave
MLD Snooping Querier
Static Group Config
Limited IP Multicast
MVR
Multicast Filtering: 256 profiles and 16 entries per profile

Advanced Features
Support Omada Hardware Controller (OC200/OC300) Software Controller Cloud-Based Controller
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
ZTP (Zero-Touch Provisioning)

VLAN
VLAN Group
Max 4K VLAN Groups
802.1Q Tagged VLAN
MAC VLAN: 7 Entries
Protocol VLAN: Protocol Template 16 Protocol VLAN 16
Private VLAN
GVRP
VLAN VPN (QinQ)
Port-Based QinQ
Selective QinQ
Voice VLAN

Access Control List
Time-based ACL
MAC ACL
Source MAC
Destination MAC
VLAN ID
User Priority
Ether Type
IP ACL
Source IP
Destination IP
Fragment
IP Protocol
TCP Flag
TCP/UDP Port
DSCP/IP TOS
User Priority
Combined ACL
Packet Content ACL
IPv6 ACL
Policy
Mirroring
Redirect
Rate Limit
QoS Remark
ACL apply to Port/VLAN

Security
IP-MAC-Port Binding
512 Entries
DHCP Snooping
ARP Inspection
IPv4 Source Guard: 100 Entries
IPv6-MAC-Port Binding
512 Entries
DHCPv6 Snooping
ND Detection
IPv6 Source Guard: 100 Entries
DoS Defend
Static/Dynamic Port Security
Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
kbps/ratio control mode
802.1X
Port base authentication
Mac base authentication
VLAN Assignment
MAB
Guest VLAN
Support Radius authentication andaccountability
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC based access control

IPv6
IPv6 Dual IPv4/IPv6
Multicast Listener Discovery (MLD) Snooping
IPv6 ACL
IPv6 Interface
Static IPv6 Routing
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications
DHCPv6 Client
Ping6
Tracert6
Telnet (v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP

Management
Web-based GUI
Command Line Interface (CLI) through the console port telnet
SNMP v1/v2c/v3
Trap/Inform
RMON (1 2 3 9 groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log

MIBs
MIB II (RFC1213)
Interface MIB (RFC2233)
Ethernet Interface MIB (RFC1643)
Bridge MIB (RFC1493)
P/Q-Bridge MIB (RFC2674)
RMON MIB (RFC2819)
RMON2 MIB (RFC2021)
Radius Accounting Client MIB (RFC2620)
Radius Authentication Client MIB (RFC2618)
Remote Ping Traceroute MIB (RFC2925)
Support TP-Link private MIB

MANAGEMENT

Omada App
Yes. Requiring the use of OC300 OC200 Omada Cloud-Based Controller or Omada Software Controller.

Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller

Cloud Access
Yes. Requiring the use of OC300 OC200 Omada Cloud-Based Controller or Omada Software Controller.

Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller.

Management Features
Web-based GUI
Command Line Interface (CLI) through the console port telnet
SNMP v1/v2c/v3
Trap/Inform
RMON (1 2 3 9 groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log

OTHERS

Certification
CE FCC RoHS

Package Contents
TL-SG3210XHP-M2 Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet

System Requirements
Microsoft Windows 98SE NT 2000 XP Vista or Windows 7/8/10/11 MAC OS NetWare UNIX or Linux.

Environment
Operating Temperature: 0–50 ? (32–122 ?);
Storage Temperature: -40–70 ? (-40–158 ?)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
