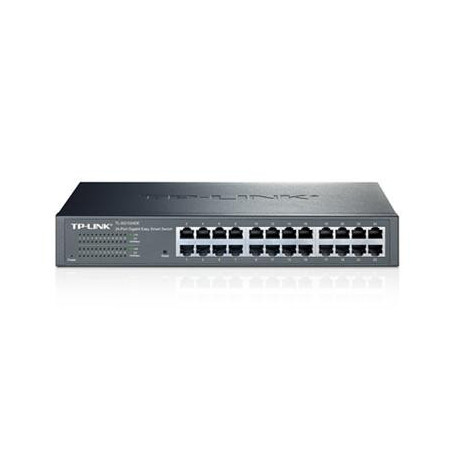

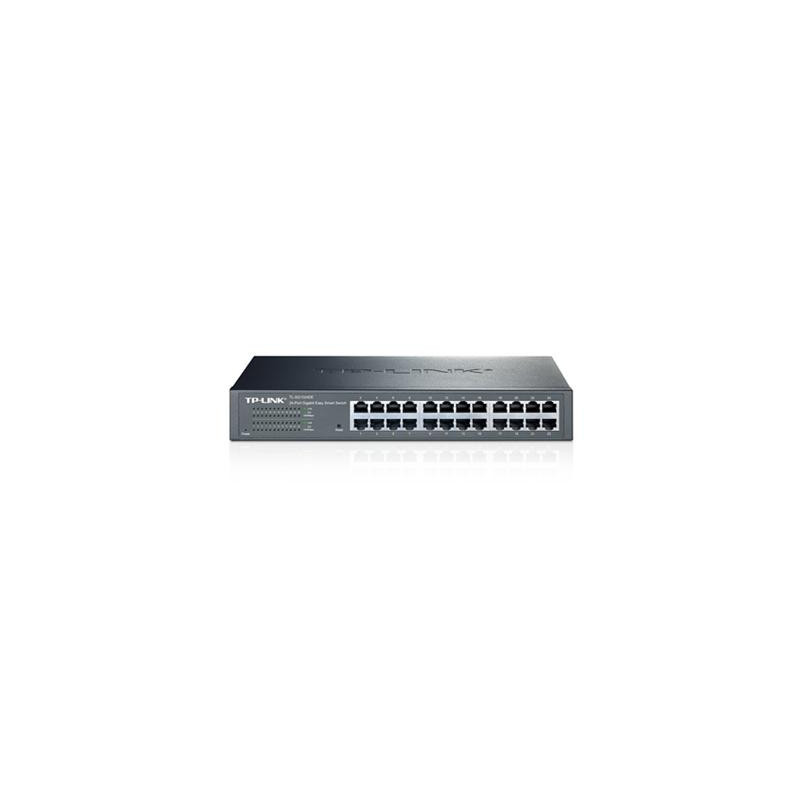

TP-Link TL-SG1024DE 24-Port Metal Gigabit Easy Smart Switch

What This Product Does
The TL-SG1024DE 24-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch designed for Small and Medium Business networks that require simple network management. Network administrators can effectively monitor traffic via Port Mirroring Loop Prevention and Cable Diagnostics features. To optimize traffic on your business network TL-SG1024DE offers Port-based/802.1p/DSCP QoS1 to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally port-based tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover with its innovative energy-efficient technology the TL-SG1024DE can save power consumption making it an eco-friendly solution for your business network.

Effective Management
TP-LINK’s Gigabit Easy Smart switch TL-SG1024DE offers network monitoring for users to observe traffic behavior. With Port Mirroring Loop Prevention and Cable Diagnostics features TL-SG1024DE can identify and even locate connection problems on your business network. Moreover administrators can designate the priority of the traffic based on Port Priority and Port/ 802.1p/ DSCP Priority Priority to ensure that voice and video are always clear smooth and lag-free. Additionally to improve security and network performance TL-SG1024DE supports MTU VLAN port-based VLAN and 802.1Q-based VLAN functions. TL-SG1024DE is an upgrade from the plug-and-play Unmanaged Switch delivering great value while empowering your network and similarly delivering great value to the end user.

Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation of TL-SG1024DE 24-Port Gigabit Easy Smart Switch features the latest energy-efficient technologies that can greatly expand your network’s capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.


Specifications

HARDWARE FEATURES

Standards and Protocols:
IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.1q IEEE 802.1p

Interface:
24 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Network Media:
10BASE-T: UTP category 3 4 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5 5e 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)

Fan Quantity:
Fanless

Physical Security Lock:
No

Power Supply:
100-240VAC 50/60Hz

Dimensions ( W x D x H ):
11.6*7.1*1.7 in. (294*180*44 mm)

Mounting:
Rack Mountable

Max Power Consumption:
14.19W (220V/50Hz)

Max Heat Dissipation:
48.39 BTU/h

PERFORMANCE

Switching Capacity:
48Gbps

Packet Forwarding Rate:
35.7Mpps

MAC Address Table:
8K

Packet Buffer Memory:
4.1Mbit

Jumbo Frame:
10KB

SOFTWARE FEATURES

Quality of Service:
Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control

L2 Features:
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention

VLAN:
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN

Transmission Method:
Store-And-Forward

OTHERS

Certification:
FCC CE RoHS

Package Contents:
TL-SG1024DE Power Cord Installation Guide Resource CD Rackmount Kit Rubber Feet

System Requirements:
Microsoft® Windows® for running Utility
