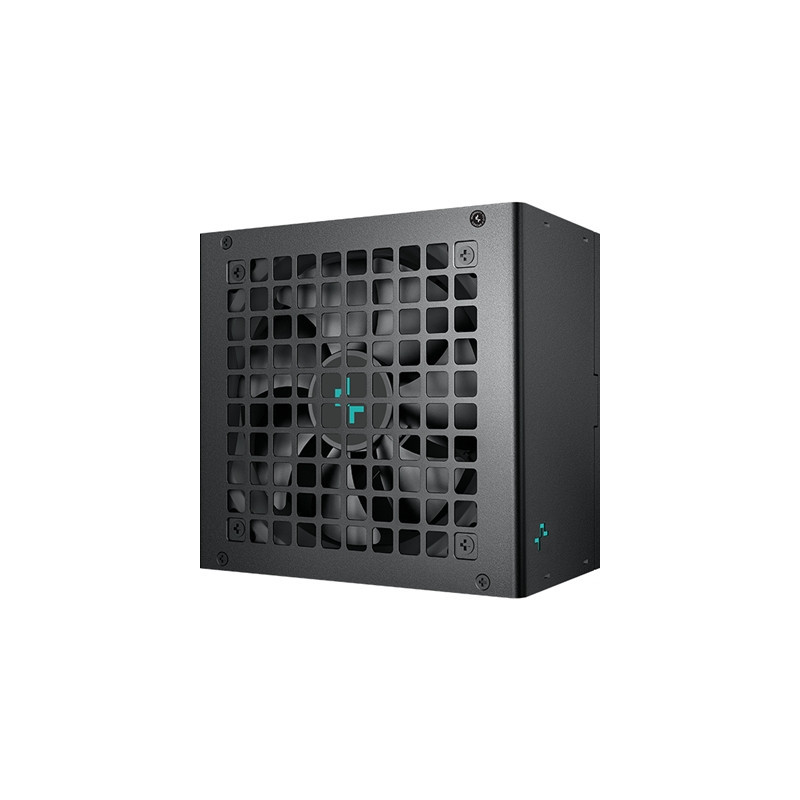

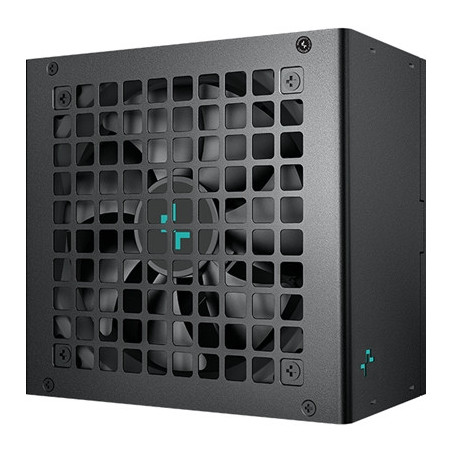

DeepCool PL750D 750W Power Supply ATX12V V3.1 80 PLUS Bronze Non-Modular 120mm Hydro Bearing Fan 12VHPWR PCIe 5.0 5-Year W

The DeepCool PL750D is a 750W non-modular power supply unit (PSU) that complies with the Intel ATX12V V3.1 standard. Designed for reliability and efficiency it features a 120mm hydro-bearing fan for optimal cooling and carries an 80 PLUS Bronze certification ensuring at least 85% energy efficiency under typical loads.

Key Specifications:
Form Factor:
ATX12V V3.1

Dimensions:
150 mm (W) x 140 mm (L) x 86 mm (H)

Efficiency Certification:
80 PLUS Bronze

Fan Size:
120 mm

Fan Bearing:
Hydro Bearing

Topology:
Active PFC + DC to DC

Capacitors:
Chinese Electrolytic Capacitors

Hold-Up Time:
16 ms

Efficiency:
85% under typical load (50% loading)

Protections:
Over Power Protection (OPP)
Over Voltage Protection (OVP)
Short Circuit Protection (SCP)
Over Temperature Protection (OTP)
Over Current Protection (OCP)
Under Voltage Protection (UVP)
Surge & Inrush Protection (SIP)
No Load Operation (NLO)
Operating Temperature:0°C to 40°C

Regulatory Certifications:
CE FCC CCC RCM EAC BIS CAN ICES-003(B) NMB-003(B) TUV-RH

Environmental Compliance:
WEEE RoHS

Mean Time Between Failures (MTBF):
100 000 hours

Connectors:
1 x 20+4 Pin ATX (Motherboard Power)
2 x 4+4 Pin ATX12V (CPU Power)
3 x 6+2 Pin PCIe (GPU Power)
8 x SATA Power
2 x 4-Pin Molex (Peripheral Power)
1 x 16-Pin (12+4) 12VHPWR Connector (PCIe 5.0)

Special Features:
The inclusion of a 16AWG 12VHPWR cable enables support for next-generation GPUs with higher power demands. The PL750D also uses premium electrolytic capacitors to ensure enhanced durability and performance.

Warranty:
Backed by a 5-year limited warranty the DeepCool PL750D delivers stable reliable power for both legacy and next-gen PC builds.
