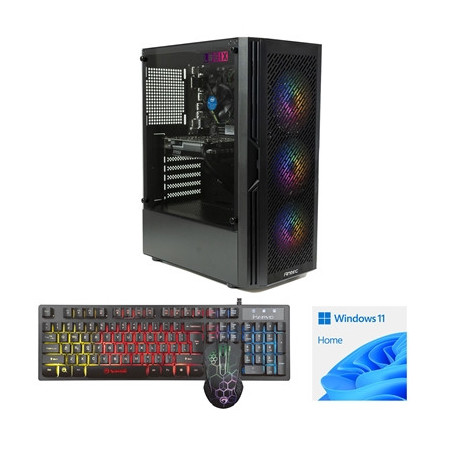

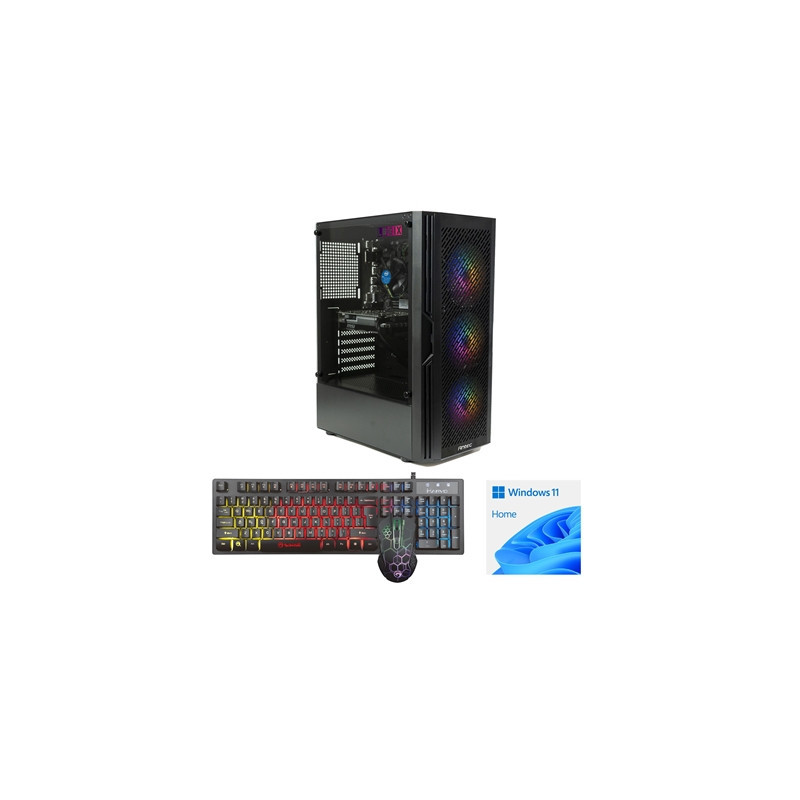

LOGIX Intel i5-10400F 6 Core 12 Threads 2.90GHz (4.30GHz Boost) 16GB DDR4 RAM 1TB NVMe M.2 80 Cert PSU GTX1650 4GB Graphics

AX20 features a slanted bar air intake design and an exceptional dense mesh for massive heat dissipation. The half-view tempered glass side panel design allows you to show off your gaming configurations without obstacles. The AX20 supports up to 8 x 120 mm fans simultaneously and provides users with diverse cooling options.

Product Description
LOGIX Intel i5-10400F 6 Core 12 Threads 2.90GHz (4.30GHz Boost) 16GB DDR4 RAM 1TB NVMe M.2 80 Cert PSU GTX1650 4GB Graphics Windows 11 home installed + FREE Keyboard & Mouse - Prebuilt System - Full 3-Year Parts & Collection Warranty

Processor
Intel Core i5 10400F 2.9GHz 6 Core LGA 1200 Comet Lake Processor 12 Threads 4.3GHz Boost 12MB Intel Smart Cache

Processor Cores
6

Processor Threads
12

Core Clock Speed
2.90GHz

Core Boost Speed
4.30GHz

Memory
Team ELITE 16GB No Heatsink (1 x 16GB) DDR4 3200MHz DIMM System Memory
Voltage: 1.2V
Latency Timing: CL22
Speed: 3666MHz
1 x 8GB DIMM Memory

Memory Configuration
1 x 16GB
2 Lanes (1 occupied)

SSD Drive
Team MP33 1TB M.2 PCIE NVME SSD
Interface: PCIe 3.0 x4 with NVMe 1.3
Controller: Phison 5008
Max Read/Write
Sequential Read (ATTO): 1700MB/s
Sequential Read (CDM): 1500MB/s
Sequential Write (ATTO): 780MB/s
Sequential Write (CDM): 770MB/s

Format
Gen3 x4 NVMe 1.3

Max Read/Write Speeds
Read: Up to 1700MB/S
Write: Up to 780MB/S

Hard Drive
No Additional Drive Fitted

Optical Drive
No Optical Drive Fitted

Graphics
Gigabyte Nvidia GeForce GTX 1650 D6 OC 4GB Single Fan Compact Graphics Card
Core Clocks: Boost 1635Hz
CUDA Cores: 896
Memory Speed: 12Gbps
Memory; 4GB GDDR6
Memory BUS: 128-bit
Max Digital Resolution: 7680x4320
Maximum Displays: 3

Graphics Card I/O
DisplayPort x 1(v1.4a)
HDMI x 1(Supports 4K@60Hz as specified in HDMI 2.0b)
DL-DVI-D x 1

Operating System
Microsoft Windows 11 Home 64bit English OEI DVD Operating Software - installed and up to Date

Card Reader
No Card Reader Fitted

Networking
Gigabit Ethernet Chip (1 Gbps/100 Mbps)

Power Supply
CRONUS 500ATV FX PRO 500W PSU 140mm Silent Cooling Fan 80 PLUS Bronze Non Modular Flat Black Cables
1 x 20+4 Pin Main
1 x 4+4 Pin 12V
6 x SATA
2 x 4-Pin Molex
2 x 6+2 Pin PCI-e

Motherboard
Gigabyte H410M S2H V2 Motherboard Intel Socket 1200 10th Gen Micro ATX Intel Ultra Durable with GIGABYTE Gaming GbE LAN PCIe Gen3 x4 M.2 HDMI / DVI-D/ D-Sub Ports for Multiple Display Anti-Sulfur Resistor Smart Fan 5

Expansion Slot
1 x PCI Express x16 slot running at x16
1 x PCI Express x1 slot

Storage
1 x M.2 connector (Socket 3 M key type 2242/2260/2280 PCIe x4)
4 x SATA 6Gb/s connectors

Rear I/O
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper

Chassis
ANTEC AX20 Case Black Mid Tower 1 x USB 3.0 / 2 x USB 2.0 Tempered Glass Side Window Panel Slanted Bar & Mesh Design for Massive Airflow 3 x RGB LED Fans Included

Drive Bays
3.5 / 2.5: 2 / 1
2.5: 2

IO Ports
Power
Reset
2 x USB 2.0
1 x USB 3.0
MIC / HD-AUDIO

Cooling
Front: 3 x 120mm / 2 x 140mm - 3 x 120 RGB fixed model fans in front
Top: 2 x 120mm
Power Supply Shroud: 2 x 120mm
Rear: 1 x 120mm

Dimensions
358 x 207 x 451mm

Package Weight
9.2 kg

Warranty
3 Years Parts & Labour Including Collect and Return (UK mainland only)
