Creator / Designer / Programmer 12th Gen Intel Core i9 5.20GHz Desktop PC with 16 Cores 1TB Kingston NVMe 4TB HDD Storage 64G

Built for professional and Home creators. purpose built for use with CAD Adobe or creator software. Fitted with Intel's powerful i9 16 Core Processor 64GB of Fast RAM an Ultra fast NVMe and 4TB of back up storage NVIDIA Quadro graphics card and Windows 11 PRO All backed by an industry leading 3 Year Warranty.

Professional Tower with Intel i9 16 Core 5.20GHz 1TB Kingston NVMe 4TB HDD Storage 64GB DDR5 Kingston RAM T1000 8GB Quadro Graphics Wi-Fi 6 Windows 11 Pro

Processor
Intel Core i9 12900KF 3.2GHz 16 Core LGA 1700 Alder Lake Processor 24 Threads 5.2GHz Boost

Processor Cores
16

Processor Threads
24

Core Clock Speed
3.20GHz

Core Boost Speed
5.20GHz

Memory
Kingston FURY Beast KF552C40BBK2-64 64GB System Memory DDR5 5200MHz 2 x 32GB CL40-40-40
Voltage: 1.25V
Latency Timing: CL40
Speed: 5200MT/s (PC5-41600)
2 x 32GB DIMM Memory
Intel XMP Profile Support

Memory Configuration
2 x 32GB
4 Lanes (2 occupied)

SSD Drive
Kingston NV3 (SNV3S/1000G) 1TB NVMe SSD M.2 Interface PCIe Gen4 2280
Data storage life
320 TBW
MTBF
1 500 000 hours
Interfaces/Ports
PCIe Gen4 x4 NVMe

Format
Gen4 x4 NVMe

Max Read/Write Speeds
Read: Up to 6000MB/S
Write: Up to 4000MB/S

Hard Drive
Seagate BarraCuda ST4000DM004 4TB 3.5 5400RPM 256MB Cache SATA III Internal Hard Drive

Optical Drive
No Optical Drive Fitted

Graphics
PNY NVIDIA Professional T1000 Retail Graphics Card 8GB GDDR6 896 CUDA Cores 2.5 MHz TFLOPS Single Fan Low Profile
Brand - PNY
Model Number - VCNT10008GB-PB
Interface - PCI Express 3.0
Graphics Card Memory Type - GDDR6
Memory Size - 8GB
Outputs - Mini DisplayPort
Maximum Supported Displays - 4
Maximum Resolution - 5120 x 2880
Colour - Black

Graphics Card I/O
Mini DisplayPort x 4
Comes with Mini DP to Full DP adapters

Operating System
Microsoft Windows 11 Pro 64bit English OEI DVD Operating Software - installed and up to Date

Card Reader
No Card Reader Fitted

Networking
Realtek GbE LAN chip (1 Gbps/100 Mbps)

Wireless Communication module
Intel Wi-Fi 6E AX210 (PCB rev. 1.0)
WIFI a b g n ac ax supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Intel Wi-Fi 6E AX211 (PCB rev. 1.1)
WIFI a b g n ac ax supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.2)
WIFI a b g n ac ax supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Power Supply
ANTEC NeoECO NE750G M 750W PSU 120mm Silent Fan 80 PLUS Gold Fully Modular UK Plug Heavy-Duty Japanese Capacitors Hybrid Zero RPM Fan Mode
1 x MB 24(20+4) Pin
2 x 8 (4+4) Pin EPS 12V
4 x 8 (6+2) Pin PCI-E
8 x SATA
4 x Molex
1 x FDD

Motherboard
Gigabyte B760 DS3H AX Ultra Durable Intel 1700 Socket Motherboard ATX 4x DDR5 Slots 2x M.2 Sockets 2x USB-C Port Fitted I/O Shield GbE LAN Wi-Fi 6E

Expansion Slot
CPU:
1 x PCI Express x16 slot supporting PCIe 4.0 and running at x16 (PCIEX16)
Chipset:
4 x PCI Express x16 slots supporting PCIe 3.0 and running at x1
(PCIEX1_1 PCIEX1_3~PCIEX1_5)

Storage
CPU:
1 x M.2 connector (Socket 3 M key type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3 M key type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0 RAID 1 RAID 5 and RAID 10 support for SATA storage devices

Rear I/O
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x USB Type-C port with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 2.0/1.1 ports
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks

Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

Chassis

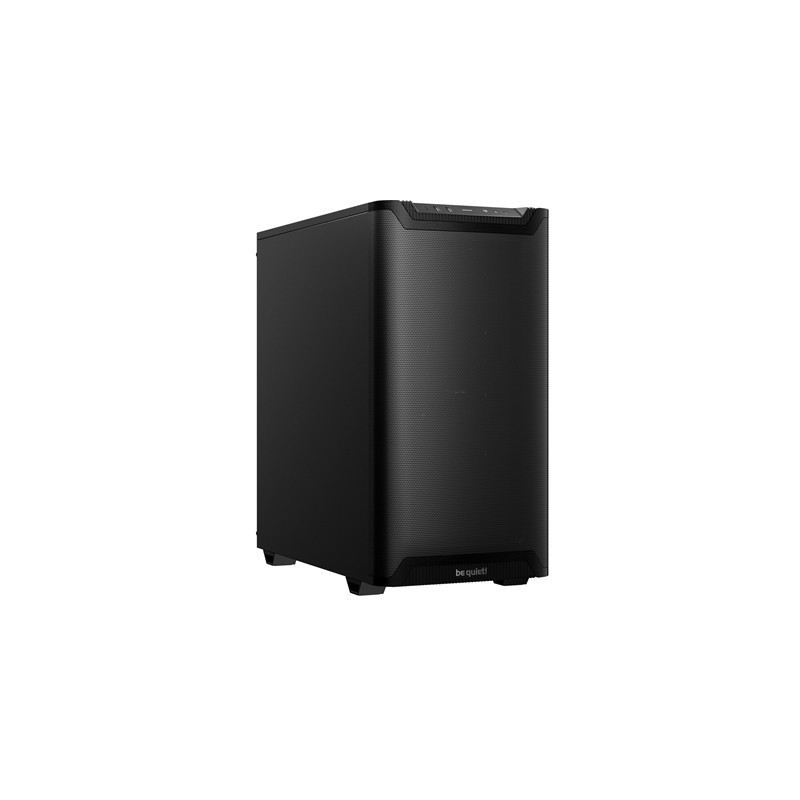

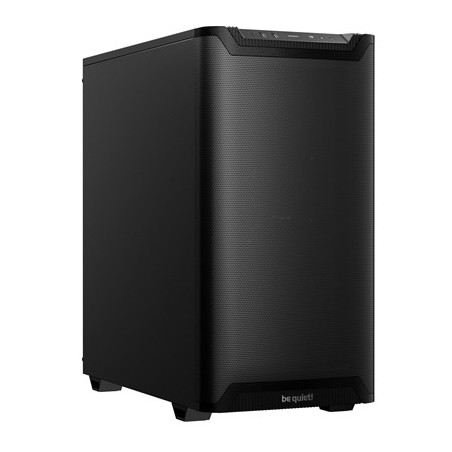

be quiet! Pure Base 501 Case Airflow Black Mid Tower 2 x USB Type-A 1 x USB Type-C 2 x Pure Wings 2 140mm Black PWM Fans Included Sleek front panel and airflow

Drive Bays
Two 3.5
Five 2.5 drives

IO Ports
USB 3.2 Gen. 2 Type C
2 x USB 3.0 Type A
Power
Reset

Cooling
Front: Up to 2 x 140mm or 3 x 120mm (2 x 140mm Pure Wings 3 fans preinstalled)
Top: Up to 2 x 120mm or 2 x 140mm
Rear: 1 x 120mm or 1x 140mm

Dimensions
463mm x 450mm x 231mm (L x W x H)

Package Weight
10.4 kg

Warranty
3 Years; 1st year parts including collect and return and a further 2 years labour warranty (UK mainland only)
