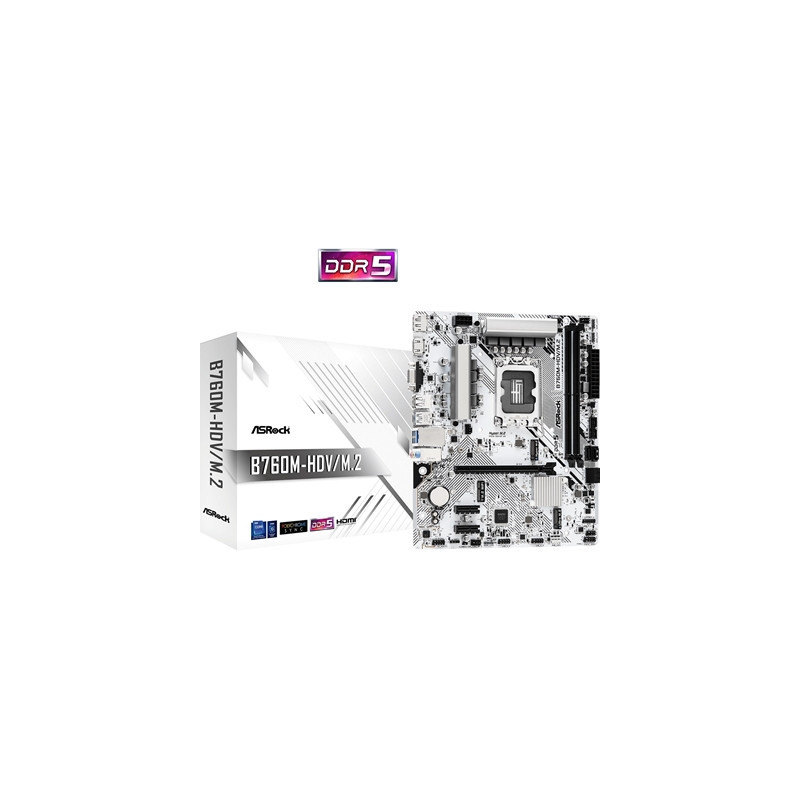

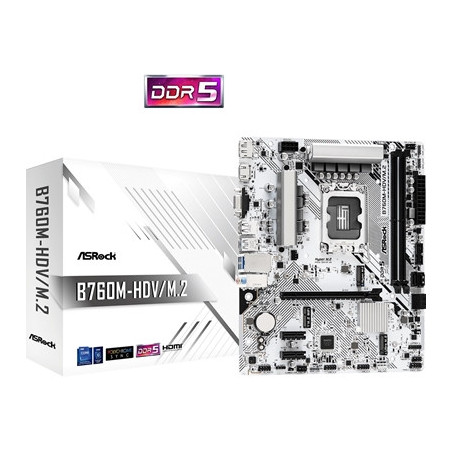

ASRock B760M-HDV/M.2 Intel 1700 Socket Motherboard Micro-ATX 2x DDR5 Slots 3x M.2 Sockets 1x USB-C Port 2.5GbE LAN 1x D-Su

Supports 13th Gen & 12th Gen and next gen Intel Core Processors (LGA1700)
7+1+1 Power Phase
Supports DDR5 7200MHz (OC)
1 PCIe 4.0 x16 2 PCIe 3.0 x1 1 M.2 Key E for WiFi
Graphics Output Options: HDMI DisplayPort D-Sub
Realtek ALC897 7.1 CH HD Audio Codec
4 SATA3 1 Hyper M.2 (PCIe Gen4 x4)
1 Ultra M.2 (PCIe Gen3 x4)
1 USB 3.2 Gen1 Type-C (Rear)
5 USB 3.2 Gen1 Type-A (3 Rear 2 Front)
6 USB 2.0 (2 Rear 4 Front)
Dragon 2.5G LAN
Supports ASRock Auto Driver Installer

7+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU offering enhanced performance for gamers.

DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept ASRock does not compromise on any details. This motherboards is built with high quality components enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel XMP/AMD EXPO capable and overclocking can be made so affordable satisfying and absolutely no sweat at all.

POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip CPU fans coolers chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects

High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs it is capable of perform twice the speed compared to previous 3rd generation giving a lightning fast data transferring experience.

Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking content creators online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet you’ll enjoy the faster and uncompromised connectivity experience for gaming file transfers and backups.

M.2 (KEY E) For WiFi
Besides the onboard LAN port users may also choose wireless connections by M.2 (Key E) slot.
Wi-Fi module is not included.

USB 3.2 Gen1 Type-C
USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.

Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!

Specification

Unique Feature
Superb Productivity
Dual Channel DDR5
Rock-Solid Durability
7+1+1 Power Phase
ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology
Ultrafast Connectivity
2.5G LAN
EZ Update
ASRock Auto Driver Installer

CPU
Supports 13th & 12th Gen Intel Core Processors (LGA1700)
Supports Intel Hybrid Technology
Supports Intel Turbo Boost Max 3.0 Technology
Supports Intel Thermal Velocity Boost (TVB)
Supports Intel Adaptive Boost Technology (ABT)

Chipset
Intel B760

Memory
Dual Channel DDR5 Memory Technology
2 x DDR5 DIMM Slots
Supports DDR5 non-ECC un-buffered memory up to 7200+(OC)
Max. capacity of system memory: 96GB
Supports Intel Extreme Memory Profile (XMP) 3.0

1DPC 1R Up to 7200+ MHz (OC) 5600 MHz Natively.
1DPC 2R Up to 6800+ MHz (OC) 5200 MHz Natively.

BIOS
128Mb AMI UEFI Legal BIOS with GUI support

Graphics
Intel Xe Graphics Architecture (Gen 12)
1 x HDMI 2.1 TMDS Compatible supports HDCP 2.3 and max. resolution up to 4K 60Hz
1 x DisplayPort 1.4 with DSC (compressed) supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
1 x D-Sub supports max. resolution up to Full HD (1920x1080) 60Hz
Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game Browser and Streaming Modes
User Customized Priority Control

Slots
CPU
1 x PCIe 4.0 x16 Slot (PCIE1) supports x16 mode
Chipset:
2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)
1 x M.2 Socket (Key E) supports type 2230 WiFi/BT PCIe WiFi module
Supports NVMe SSD as boot disks


Storage
Chipset:
1 x Hyper M.2 Socket (M2_1 Key M) supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
1 x Ultra M.2 Socket (M2_2 Key M) supports type 2280 PCIe Gen3x4 (32 Gb/s) modes
4 x SATA3 6.0 Gb/s Connectors
Supports Intel Volume Management Device (VMD)
Supports NVMe SSD as boot disks

RAID
Supports RAID 0 RAID 1 RAID 5 and RAID 10 for SATA storage devices

USB
1 x USB 3.2 Gen1 Type-C (Rear)
5 x USB 3.2 Gen1 Type-A (3 Rear 2 Front)
6 x USB 2.0 (2 Rear 4 Front)
All USB ports support ESD Protection

Connector
1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Supports in total up to 12V/3A 36W LED Strip
Support in total up to 5V/3A 15W LED Strip
CPU_FAN1 supports the fan power up to 1A (12W).
CPU_FAN2/WP supports the fan power up to 2A (24W).
CHA_FAN1~2/WP support the fan power up to 2A (24W).
CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.

Rear Panel I/O
2 x Antenna Mounting Points
1 x D-Sub Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C Port
3 x USB 3.2 Gen1 Type-A Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI
Software
ASRock Motherboard Utility (A-Tuning)
ASRock Dragon 2.5G LAN Software
ASRock Polychrome SYNC
UEFI
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Auto Driver Installer
ASRock Instant Flash
ASRock Easy RAID Installer

Accessories
1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
3 x Screws for M.2 Sockets

Form Factor
Micro ATX Form Factor: 9.6-in x 7.9-in 24.4 cm x 20.1 cm

OS
Microsoft Windows 10 64-bit / 11 64-bit

Certifications
FCC CE
ErP/EuP ready (ErP/EuP ready power supply is required)
