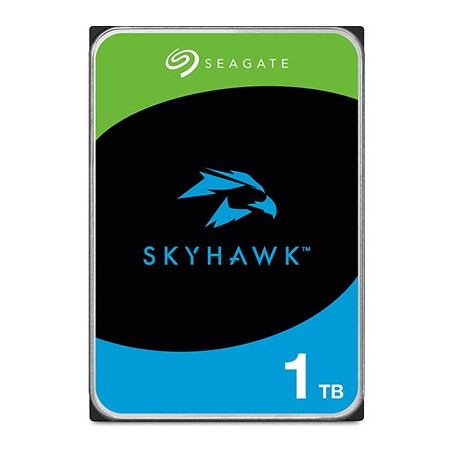

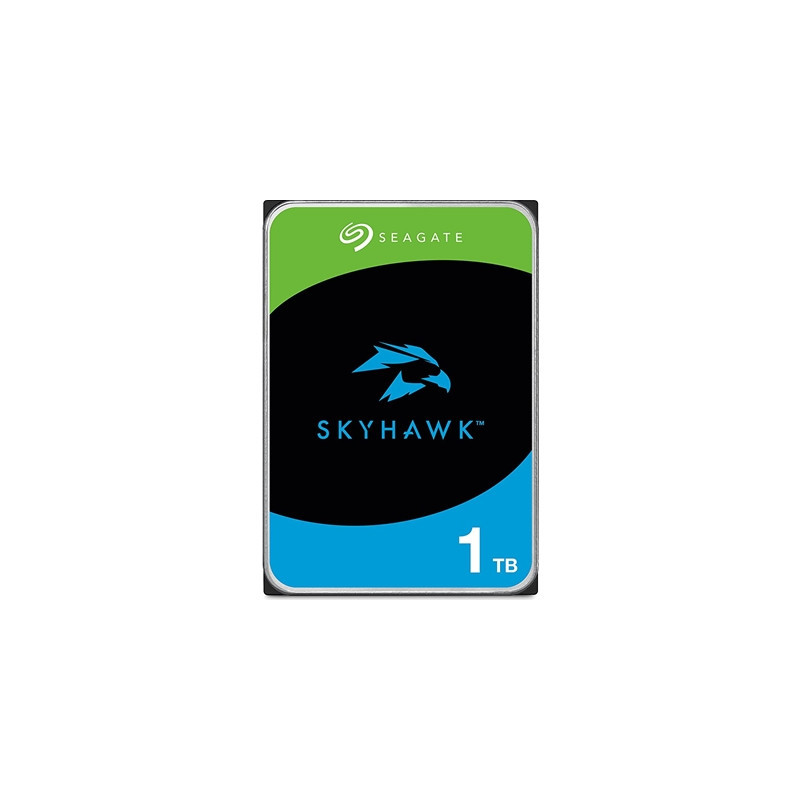

Seagate SkyHawk Surveillance ST1000VX013 1TB 3.5“ 256MB Cache SATA III Internal Hard Drive

The Seagate ST1000VX013 SkyHawk 1TB SATA Hard Drive is optimised for DVRs and NVRs and is tuned for 24x7 workloads. This Seagate SkyHawk 1TB surveillance drive is built to keep systems in the field longer and reduce the need for post-deployment support.

Vital Statics
Capacity: 1TB
Speed: 5900 RPM
Cache: 256MB
Interface: SATA 6Gb/s
Form factor: 3.5 inch

Key Features

ImagePerfect firmware is designed to ensure seamless video footage capture in 24x7 workloads that record video from 64 HD cameras.
SkyHawk Health Management actively helps protect your video storage by focusing on prevention intervention and recovery options.
Included is RAID RapidRebuild which provides 3x faster volume rebuilds over traditional RAID rebuilds.
Built-in RV sensors allow the drive to maintain performance in multi-bay systems giving customers the flexibility to scale their systems when more storage is needed.
ATA streaming support enables recordings from up to 64 HD cameras for smooth uninterrupted footage.
1M hours MTBF and 3-year limited warranty represents an improved total cost of ownership (TCO) with reduced maintenance costs.
Lower power consumption means a reduction in heat emissions which improves reliability in surveillance solutions. Tarnish-resistant components help protect the drive from environmental elements increasing field reliability.

Specifications

Formatted capacity
1000GB

Guaranteed sectors
1 953 525 168

Heads
2

Disks
1

Bytes per sector
4096

Default sectors per track
63

Default read/write heads
16

Default cylinders
16383

Recording density
2448 kB/in

Track density (avg)
1175 Gb/in2

SATA interface transfer rate
600 MB/s

Maximum data transfer rate
180 MB/s

ATA data-transfer modessupported
PIO modes: 0 to 4
Multiword DMA modes: 0 to 2
Ultra DMA modes 0 to 6

Cache buffer
256MB

Average latency
6.0ms
