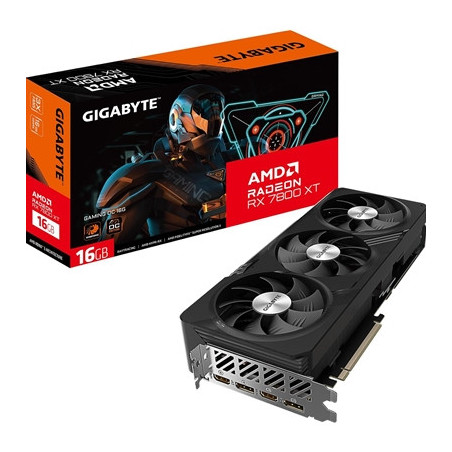

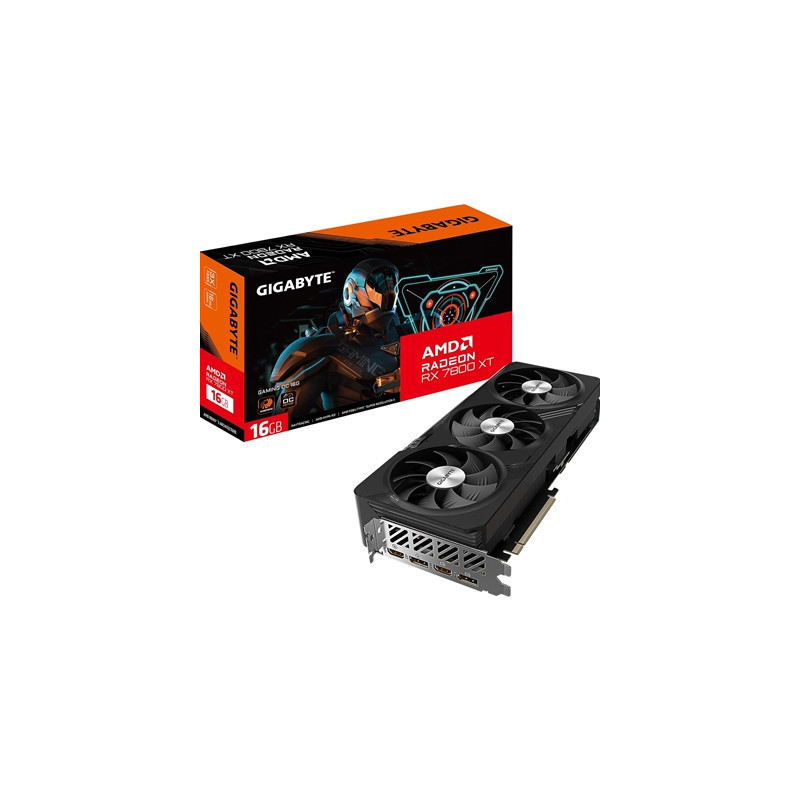

Gigabyte AMD Radeon RX 7800 XT GAMING OC Graphics Card 16GB GDDR6 3840 Streams 2565 MHz Boost Clock Triple Fan RGB 2x Disp

KEY FEATURE
Powered by Radeon RX 7800 XT
Integrated with 16GB GDDR6 256-bit memory interface
WINDFORCE Cooling System
RGB Fusion
Dual BIOS
Protection metal back plate

CORE CLOCK
Boost Clock : up to 2565 MHz (Reference card: 2430 MHz)
Game Clock : up to 2254 MHz (Reference card: 2124 MHz)

Game. Stream. Advance
Experience incredible performance visuals and efficiency when gaming and streaming with the AMD Radeon RX 7700 XT and 7800 XT graphics cards powered by the AMD RDNA 3 architecture. Immerse yourself in next-generation technologies advanced raytracing AI accelerators AV1 encoding and support for the latest DisplayPort 2.1 technology. The Radeon RX 7700 XT and 7800 XT delivers an incredible high refresh 1440p gaming & streaming experience with additional video memory to step into 4K.

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 90mm unique blade fans alternate spinning 7 composite copper heat pipes a large copper plate directly touches the GPU 3D active fans and Screen cooling which together provide high efficiency heat dissipation.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.

UNIQUE BLADE FAN
The airflow is split by the triangular fan edge and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of the sleeve bearing fan by 2.1 times close to the life of double ball bearing and is quieter.

LARGE COPPER PLATE & HEAT-PIPE
The large copper plate directly contacts the GPU coupled with the composite heat pipes which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING
Extended heatsink allows air to pass through providing better heat dissipation.

RGB FUSION
With 16.7M customizable color options and numerous lighting effects you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes lower ESR solid capacitors 2oz copper PCB and lower RDS(on) MOSFETs plus over-temperature design to deliver superior performance and longer system life.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

Power Through The Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.

Specifications

Graphics Processing
Radeon RX 7800 XT

Core Clock
Boost Clock : up to 2565 MHz (Reference card: 2430 MHz)
Game Clock : up to 2254 MHz (Reference card: 2124 MHz)

Stream Processors
3840

Memory Clock
19.5 Gbps

Memory Size
16 GB

Memory Type
GDDR6

Memory Bus
256 bit

Card Bus
PCI-E 4.0

Digital max resolution
7680x4320

Multi-view
4

Card size
L=302 W=130 H=56 mm

PCB Form
ATX

DirectX
12 Ultimate

OpenGL
4.6

Recommended PSU
700W

Power Connectors
8 Pin*2

Output
DisplayPort 2.1 x 2
HDMI 2.1 x 2

Accessories
Quick guide
