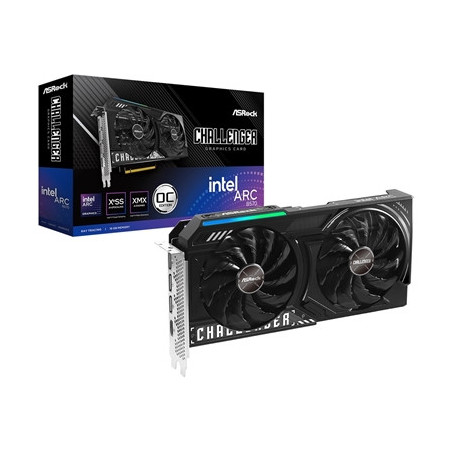

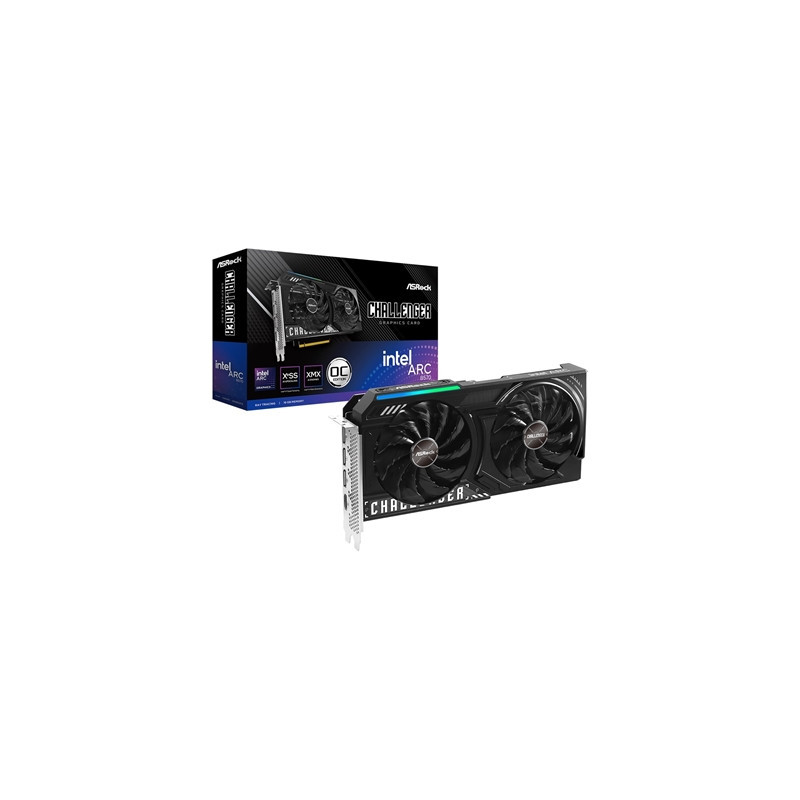

ASRock Intel Arc B570 Challenger 10GB OC Graphics Card 10GB GDDR6 2600 MHz Base Clock Dual Fan 3x DisplayPorts / 1x HDMI Por

Intel Arc B570 Challenger 10GB OC

Key Features
Dual Fan Design
Stylish Metal Backplate
Striped Axial Fan
LED Indicator
0dB Silent Cooling
Super Alloy Graphics Card

CLOCK: GPU / MEMORY
GPU Clock: 2600 MHz
Memory Clock: 19 Gbps

Dual Fan Design Optimized Cooling Efficiency
Provides not only the fancy outlook but also the optimized cooling efficiency for the best balance between performance and silence.

Stylish Metal Backplate
With the Phantom Gaming look the stylish metal backplate on the Phantom Gaming graphics cards makes it more fancy in visual and solid in construction. Otherwise the thermal pad at the backside also helps to enhance the thermal efficiency.

Striped Axial Fan Designed For Enhanced Airflow
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.

LED Indicator More Decoration. More Beauty
Multiple-color LED Indicator embellishes the graphics card to make it more beautiful.

0dB Silent Cooling Spin For Cooling Stop For Silence
The fan spins when the temperature goes high for the optimal cooling and stops when the temperature goes low for the complete silence.

LED Switch Switch On/Off As You Want
You can switch LED on or off depends on the scenarios or your need.

Nano Thermal Paste Perfect Thermal Teamwork
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.

Ultra-fit Heatpipe Consolidated to Maximize the Contact
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

High-Density Metal Welding Improve Heat Dissipation
Effectively isolate all coverage of the gap between pipe and stacked fins hence improve heat dissipation effectively.

Precise Screw Torque Optimized Mounting Pressure
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.

Japanese SP-Cap
With a high conductive polymer as the electrolyte it has a lower equivalent series resistance (ESR) to provide outstanding electrical characteristics. In addition to that it also has excellence in product operational life reliability and heat resistance.

SPS (Smart Power Stage)
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase thus delivering smoother and neater power to the GPU with enhanced performance and OC capability.

Premium Power Choke
Compared to traditional chokes ASRock’s premium power chokes effectively make the saturation current up to three times better thus providing enhanced and improved Vcore voltage to the graphics card.

2oz Copper PCB
Using only carefully selected copper materials for PCB layers 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.

Game Ready Feature Packed
Enjoy high performance in the latest games at 1080p and 1440p with AI upscaling and ray tracing. Get the performance and features you expect at the prices you deserve.

Game-Changing Modern Tech
Increase performance responsiveness and more with Intel Arc gaming technologies.
Get exceptional performance and visual quality in over 150 games enabled with AI-boosted Intel Xe Super Sampling (XeSS) technology.
Make your games play smoother and more responsive with Intel XeSS Frame Generation and Intel Xe Low Latency technologies from Intel.

Up-To-Date Software Releases
Stay up to date with regular software releases supporting the latest games and get consistently improved gaming experiences.

A versatile Creator Toolkit
Save time and export videos quickly with twin media transcoders supporting dual-encode. Create content with support for the most popular media formats including cutting-edge AV1.
The powerful Xe media engine enables you to create and edit content quickly in high-res.

Built To Explore AI
Explore the latest AI experiences such as text to image generation and AI chatbots right on your PC. AI Playground a free and private app brings AI capabilities together into an easy-to-use experience.
Enjoy enhanced gaming speed through creating and more with specialized AI Engines built into Intel Arc Graphics called Xe Matrix eXtensions (XMX).

Specification

Graphics Engine
Intel Arc B570

Bus Standard
PCI Express4.0 x 8

DirectX
12 Ultimate

OpenGL
4.6

Memory
GDDR6 10GB

Engine Clock
2600 MHz

Intel XMX Engines
144

Compute Units
18

Memory Clock
19 Gbps

Memory Interface
160-bit

Resolution
Digital Max Resolution: 7680 x 4320

Interface
1 x DisplayPort 2.1 (Primary up to UHBR13.5)
2 x DisplayPort 2.1 (Up to UHBR10)
1 x HDMI 2.1a

HDCP
Yes

Multi-View
4

Recommended PSU
600W

Power Connector
1 x 8-pin

Accessories
1 x Quick Installation Guide

Dimensions
249 x 132 x 41 mm 2-slot

Net Weight
720 g
