be quiet! Light Wings PWM High Speed Addressable RGB Fan 120mm 2500RPM 4-Pin PWM Fan & 3-Pin ARGB Connectors Black Frame Bl

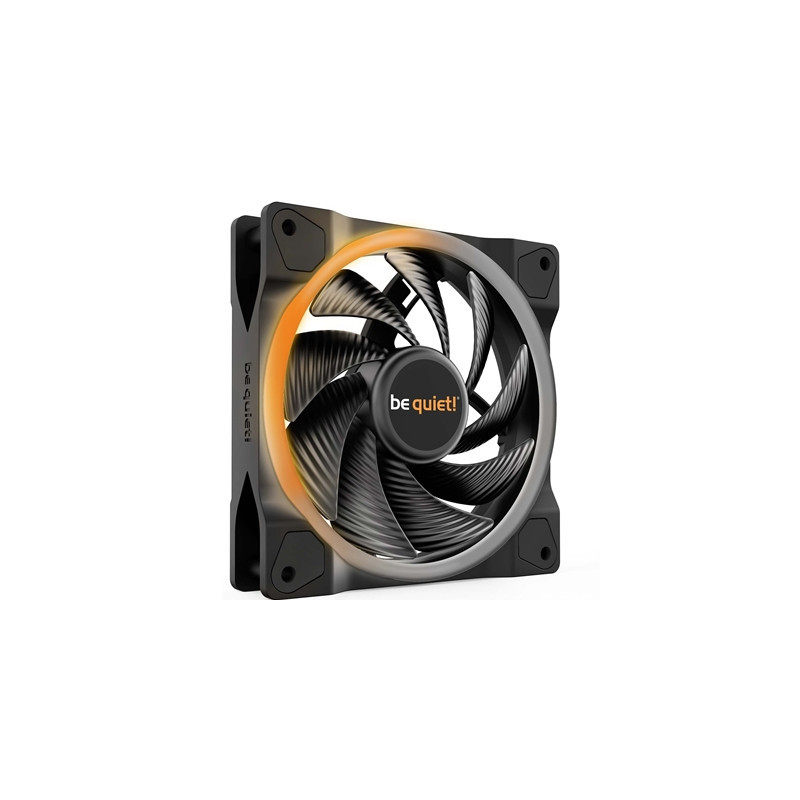

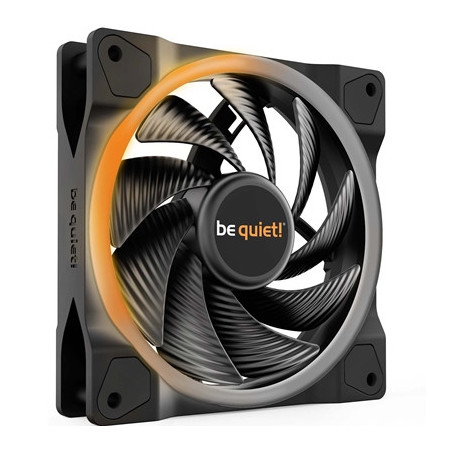

LIGHT WINGS - 120mm PWM High Speed
IMPRESSIVE LIGHTING SUPERIOR COOLING
Light Wings 120mm PWM high-speed offers impressive illumination for a vibrant unique look strong performance and quiet operation with efficient cooling.
- ARGB lighting on front and rear
- Multiple colors and modes for an individual look thanks to 18 LEDs
- 9 silence-optimized fan blades for high pressure and low noise-generating turbulences
- Remarkable performance-to-noise ratio with 31dB(A) at 2 500rpm
- Long life rifle-bearing gives an operating lifetime of 60 000 hours
- 3-year manufacturer’s warranty
If you are looking for a high performance fan with an impressive look from every angle Light Wings 120mm PWM high-speed is your fan of choice.

IMPRESSIVE LIGHTING
Lots of illumination possibilities
Light Wings 120mm PWM high-speed offers ARGB lighting at the front and rear. The subtly lit ring at the back combined with the bright one at the front make for a magnificent appearance from every angle. 18 ARGB LEDs give you many opportunities to individualize your PC build.

FOR RADIATORS AND HEATSINKS
Fan blades optimized for high pressure
With a remarkably high air pressure of up to 2.6mm/H2O Light Wings 120mm PWM high-speed is the best choice for water-cooled and air-cooled systems alike. The 9 airflow-optimized fan blades provide enough air pressure to make this fan perfect even in demanding configurations.

QUIET OPERATION
Acclaimed be quiet! low noise level
A highly optimized impeller achieves the silent operation be quiet! is famous for. With a noise level of 31dB(A) at maximum fan speed it proves that instead of being a replacement the lighting is an addon to silent and very powerful operation. All features combine to make Light Wings 120mm PWM high-speed the fan of choice for silent show cases and gaming systems alike.

VARIABLE FAN SPEED FUNCTION
Adjusts the fan speed and associated noise level
Pulse Width Modulation (PWM) allows compatible 4-pin controllers including those built into many motherboards to intelligently vary the speed and thus the noise level of the fan. With PWM the system can ramp up the cooling when it’s needed or operate in maximum quiet mode when it’s not.

General Data
Model: Light Wings 120mm PWM-high-speed
Dimensions (mm): 120
Color option: Black
Lighting: ARGB LED
Fan speed @ 100% PWM / 12V (rpm): 2500
Noise level @ 100% PWM / 12V (dB(A)): 31
Air Flow @ 100% PWM / 12V (CFM / m3/h): 52.3 / 88.86
Air Pressure @ 100% PWM / 12V (mm H2O): 2.6

Mechanical Specifications
Dimensions (L x W x H) (mm): 120 x 120 x 25
Weight incl. fixed cables (g): 210
Bearing technology: Rifle
Motor technology: 4-pole fan motor
Push pin fixing: -
Screw fixing: Yes

Cables / Connectors
Daisy chain for lighting signal: Yes
Lighting connector: 5V 3-pin ARGB
Connector: 4-pin PWM
Cable length (mm): 500
Cable sleeve: -

Performance / Noise
Air Flow @ 100% PWM / 12V (CFM / m3/h): 52.3 / 88.86
Air Pressure @ 100% PWM / 12V (mm H2O): 2.6
Noise level @ 100% PWM / 12V (dB(A)): 31
Lifespan (h / 25°C): 60 000

Electrical Specifications
Rated Voltage DC (V): 12
Operating Voltage DC (V): 5 - 13.2
Current consumption (A): 0.12
Safety current (A): 0.45
Input power (W): 5.4
Rated Current LED (A): 0.6

Accessories
3-pin to 4-pin 12V-connector: -
12V to 7V adapter: -
12V to 5V adapter: -
Screws: 4
Push pins: -
hard plastic washer: -
Others: -

Safety Certification
Approvals: CE / RoHs / RU / WEEE

Environmental Directives
RoHs: -
Triman: -

Logistics Data
Article number: BL073
Dimensions package (L x W x H) (mm): 153 x 133 x 29.5
Gross weight package (kg): 0.277
