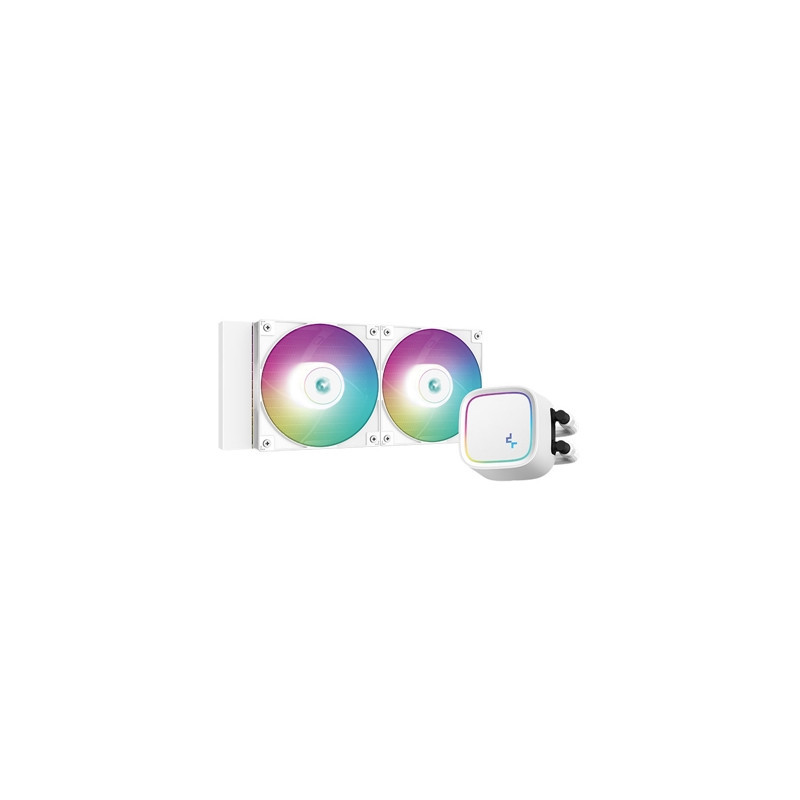

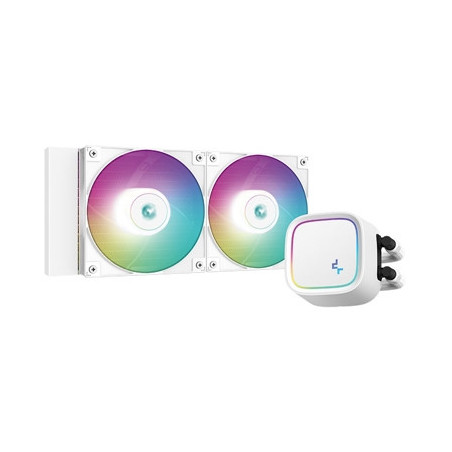

DeepCool LE520 White Universal AiO Cooler with 2 x 120mm ARGB PWM Fans Copper Heatsink Aluminium Radiator Intel/ AMD Compatib

LE520
The DeepCool LE520 all-in-one liquid cooler is equipped with new high-performance ARGB fans thermal paste and DeepCool's new liquid cooler series design elements.

Powerful Heat Dissipation
Thanks to an efficient micro-channel water block thickened copper cold plate and new high-performance ARGB fans the LE520 achieves excellent heat dissipation of 220W TDP.

New Series Design
The LE520 features a new series pump with rounded corners a square shape bright ARGB and additional durability. The low pump height of 52mm provides excellent compatibility for various ITX cases.

High-Performance ARGB Fans
The included high-performance ARGB fans are vibrant bright and support various motherboard synchronisations. The fans provide maximum CFM and static pressure at higher RPMs while maintaining a quiet noise level of below 30dB at lower speeds.

Anti-Leak Technology
The LE520 liquid cooler features DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure; this leads to a longer useful life while reducing the possibility of leaks.

Simple and Secure
The installation is simple and compatible with the latest mainstream Intel and AMD processors.

Specifications

Radiator Dimensions
282 x 120 x 27 mm(L x W x H)

Radiator Material
Aluminum

Tube length
410 mm(L x W x H)

Pump Dimensions
91 x 80 x 52 mm(L x W x H)

Pump Speed
2400 RPM + 10%

Pump Noise
17.8 dB(A)

Pump Connector
3-pin

Pump Rated Voltage
12 VDC

Pump Rated Current
0.2 A

Pump Power Consumption
2.4 W

Fan Dimensions
120 x 120 x 25 mm(L x W x H)

Fan Speed
500 - 2250RPM + 10%

Fan Airflow
85.85 CFM

Fan Air Pressure
3.27 mmAq

Fan Noise
<32.9 dB(A)

Fan Connector
4-pin PWM

Bearing Type
Hydro Bearing

Fan Rated Voltage
12 VDC

Fan Rated Current
0.25 A

Fan Power Consumption
3.0 W

LED Type
Addressable RGB LED

LED Connector
3-pin(+5V-D-G)

LED Rated Voltage
5 VDC

LED Power Consumption
2.25 W(PUMP)/ 2.1 W(FAN x 2)

Compatibility

Intel Socket: LGA 2011-v3/2011/1200/1151/1150/1155/1366
AMD Socket: AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1

Additional Features
RGB Lighting: Customizable RGB lighting on the pump head
Control: Compatible with major motherboard RGB sync software

Package Contents

1 x Deepcool LE520 240mm Radiator
2 x 120mm PWM Fans
1 x Intel Mounting Kit
1 x AMD Mounting Kit
1 x User Manual
