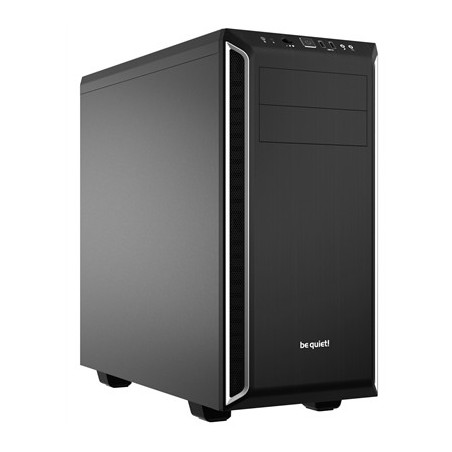

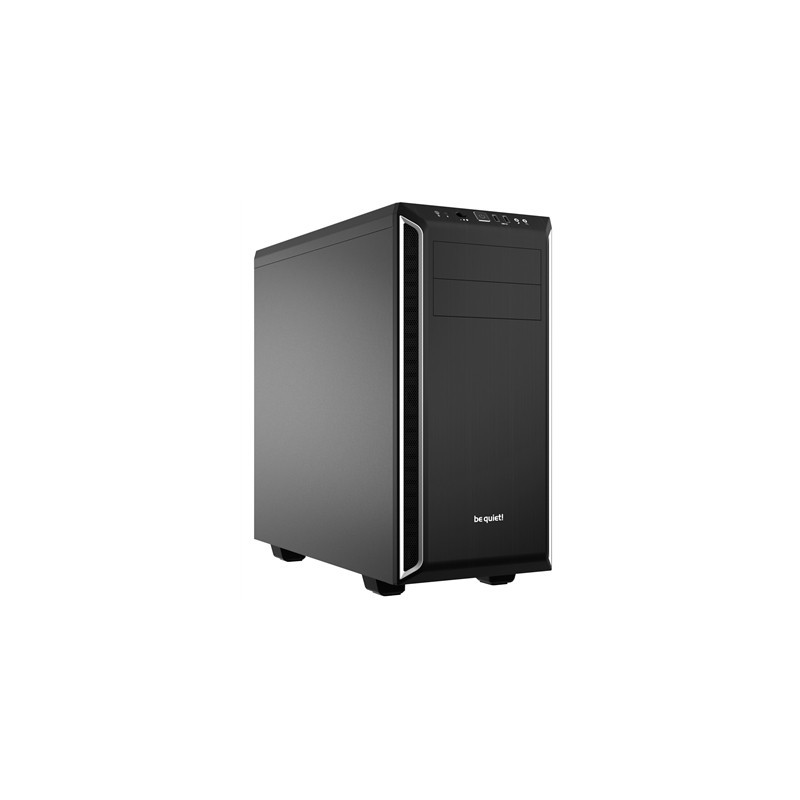

be quiet! Pure Base 600 Case Silver MId Tower 2 x USB 3.2 Gen 1 Type-A 3 x Pure Wings 2 Black PWM Fans Included Completely

PURE BASE 600 - Silver
EXCEPTIONALLY SILENT AND FUNCTIONALPure Base 600 offers a great deal of functionality and features for an attractive price.

Highly versatile with repositionable HDD slots and a removable ODD cage

Water cooling readyfor radiators up to 360mm on front top and rear

Adjustable top cover ventwith enhanced cooling options and mounting location for a radiator

2 pre-installed be quiet! Pure Wings 2 fans assure whisper-quiet operation

Completely sound insulated with dampening material in all relevant places

3-year manufacturer’s warranty

German product conception design and quality control

HIGHLY VERSATILE CONSTRUCTIONPure Base 600 offers many possibilities for system component selection. The 3 HDD slots can be repositioned to allow installation of the largest graphics cards and the ODD cage is removable for maximum flexibility of water cooling and drives.

OPTIMIZED FOR RADIATORSPure Base 600 was optimized to be the perfect case for liquid cooling. 3 areas are specially designed to allow them to be added: front top and rear. All sizes of radiator up to 360mm are possible.

ADJUSTABLE TOP COVER VENTThe Pure Base 600 top cover is adjustable allowing you to choose between boosting your system’s cooling or silence. You can close it for more silence open it partially for more exhaust or leave it open to mount a water cooling radiator.

PRE-INSTALLED PURE WINGS 2 FANS2 pre-installed Pure Wings 2 fans with 9 airflow-optimized fan blades reduce turbulence and increase air pressure: 120mm at the rear 140mm at the front. Permits up to four additional cooling fans.

KEEP THE SYSTEM SUPER SILENTIntegrated 3-step fan controller supports 3 fans. Sound insulating material on top side and front dampens vibration. Filters at front and bottom prevent dust from entering the case.

General Data
Model:
Pure Base 600 Silver

Color option:
Black with Silver Trim

Motherboard compatibility:
ATX / M-ATX / Mini-ITX

Case size excl. stands (L x W x H) (mm):
492 x 220 x 445

Case size incl. stands (L x W x H) (mm):
492 x 220 x 470

PSU form factor:
ATX PS/2

Weight (kg):
7.44

Expansion slots:
7

Pre-Installed Fans
Fan @ front: 1x Pure Wings 2 140mm
Fan @ rear: 1x Pure Wings 2 120mm

Fan speed @ 100% PWM / 12V (rpm):
Front: 900 / Rear: 1200

Airflow @ 100% PWM / 12V (CFM / m3/h):
Front: 55.8/94.8 / Rear: 41.7/70.84

Air Pressure @ 100% PWM / 12V (mm H2O):
Front: 0.6 / Rear: 0.9

Noise level @ 100% PWM / 12V (dB(A)):
Front: 17.1 / Rear: 16.8

Voltage range (V DC):
5 - 12

Input power (W):
Front: 1.08 / Rear: 1.04

Input current (A):
0.09

Connector:
3-pin

Lifespan (h / 25°C):
80 000

Fan controller:
Manual 3-step fan controller (3x 3-pin)

Fan Support
Top (mm):3x 120 / 2x 140
Front (mm): 2x 120 / 2x 140
Rear (mm): 1x 120

Liquid Cooling Support
Top (mm): 120 / 240 / 360
Front (mm): 120 / 140 / 240 / 280 / 360
Rear (mm): 120

PSU Compatibility
Maximum dimensions excl. bottom fan (mm): 210
Maximum dimensions incl. bottom fan (mm): 210

Graphics Card
HDD cage (in height of graphics card) installed (mm):280
HDD cage (in height of graphics card) removed (mm):425

Drive Bay Capacity
5.25 bays:2
3.5 slots (max.):5
3.5 slots (scope of delivery):3
2.5 slots (max.): 12
2.5 slots (scope of delivery):8

Cooling
Max. construction height of CPU cooler unit (mm):
165

I/O Panel
USB 3.2 Gen. 1: 2
HD Audio I/O:Mic + Audio

Insulation & Damping
Top panel insulation mats: Yes
Front panel insulation mats: Yes
Side panel insulation mats: Yes

Removable Dust Filters
Front: 1
Bottom: 1

Material
Top cover: ABS
Front panel: ABS
Side panel: Steel

Dimensions package (L x W x H) (mm):
517 x 288 x 568

Gross weight package (kg):
8.74
