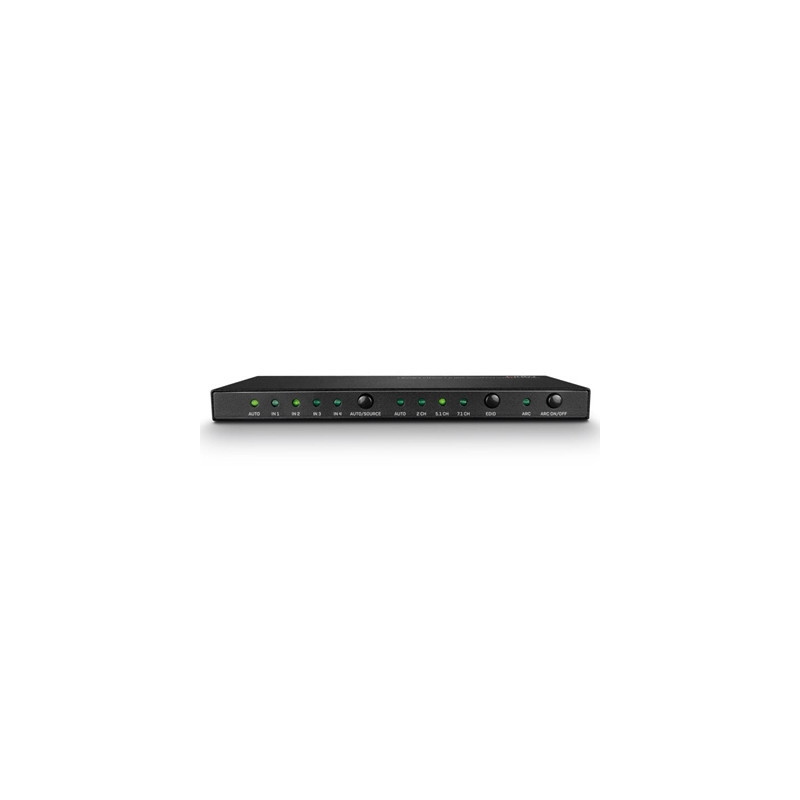

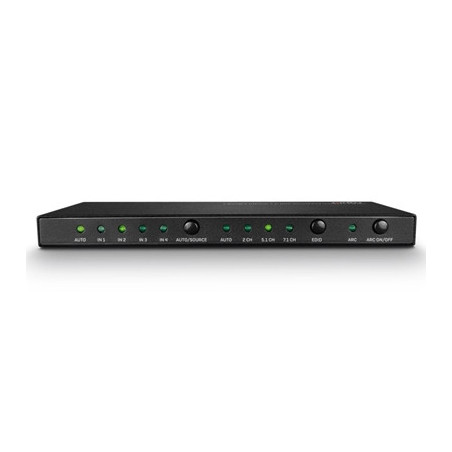

LINDY 38249 4 Port HDMI 2.0 18G Switch with Audio

Lindy 4 Port HDMI 18G Switch with Audio

The Lindy 4 Port HDMI 18G Switch with Audio is a professional solution for providing simple yet reliable switching control over 4 HDMI source devices connected to a single HDMI display while also expanding a displays HDMI® port connections. Supporting HDMI 2.0 18G signals this switch allows for the transmission of detailed 4K Ultra HD resolutions while additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness greater contrasts and a much wider colour gamut perfect for a premium home cinema experience eye-catching digital signage in retail settings or engaging presentations. HDCP 2.2 support ensures there are no issues with a variety of 4K content when connected to source devices including set top boxes Blu-Ray players and 4K HDR media players.

As well as HDMI audio pass-through the switches 3.5mm audio port allows for a separate connection of both analogue speaker systems and optical audio devices such as soundbars and amplifiers via the included adapter great for ensuring a multi-channel audio experience to provide a heightened sense of realism for the viewer.

This 4 Port HDMI® switch also provides a huge range of easy control options for the user to ensure efficient hassle free usage for both new and experienced users. The switch itself can be controlled manually via push button switching while it can also identify the active HDMI® source device and automatically switch to this option.

The included remote control allows the user to have convenient control over multiple videos and audio formats from a distance great for trade show demonstrations or training presentations while the RS-232 connection can be used for professional PC control of the switch or integrating it into other automated PC control systems.

The terms HDMI HDMI High-Definition Multimedia Interface HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator Inc.

Key Features
Switch between 4 HDMI 2.0 source devices connected to a single HDMI 2.0 display
Supports resolutions up to 4K 60Hz with additional support for HDR
Extract digital and analogue audio from a HDMI source device
Uncomplicated control via IR remote push button auto switching and RS232
2 year warranty

Specification

AV Interface
HDMI

Interface Standard
HDMI 2.0

Supports Bandwidth
18Gbps

Maximum Resolution
3840 x 2160@60Hz 4:4:4 8bit

HDCP Support
2.2

Supported Audio
Audio Pass-through Analogue 2CH Up to 5.1CH (Optical)

Separate Audio Ports
Stereo (3.5 mm)
Toslink (Optical) (with included adapter)

IR Support
38kHz

CEC Support
Pass-through

Serial Interface
RS232 (3.5 mm)

Special Features
Audio EDID Management
Automatic switching of active ports

Connectors

Input
4 x HDMI Type A (Female)

Output: HDMI
Type A (Female) 3.5 mm (Female)

Control
RS232 (3.5 mm) IR (3.5 mm)

Power
5.5/2.1 mm DC Socket

Physical Properties

Dimensions (approx.) W x D x H
180 x 85 x 11.6 mm

Housing Material
Metal

Net Weight
0.563kg (1.24lb)

Operating Temperature
0°C - 40°C (32°F - 104°F)

Storage Temperature
-20°C - 60°C (-4°F - 140°F)

Humidity
20-90% RH (non-condensing)

Power Requirements
5VDC 1A

Colour
Black

Package Contents
4 Port HDMI Switch with Audio
Multi-country Power Supply (UK EU US & AUS)
IR Extension Cable 1.5m
Mini Optical to Optical Adapter
Remote Control and CR2032L Battery
3.5mm RS232 Cable 1m
Lindy Manual

Warranty
2 Year
