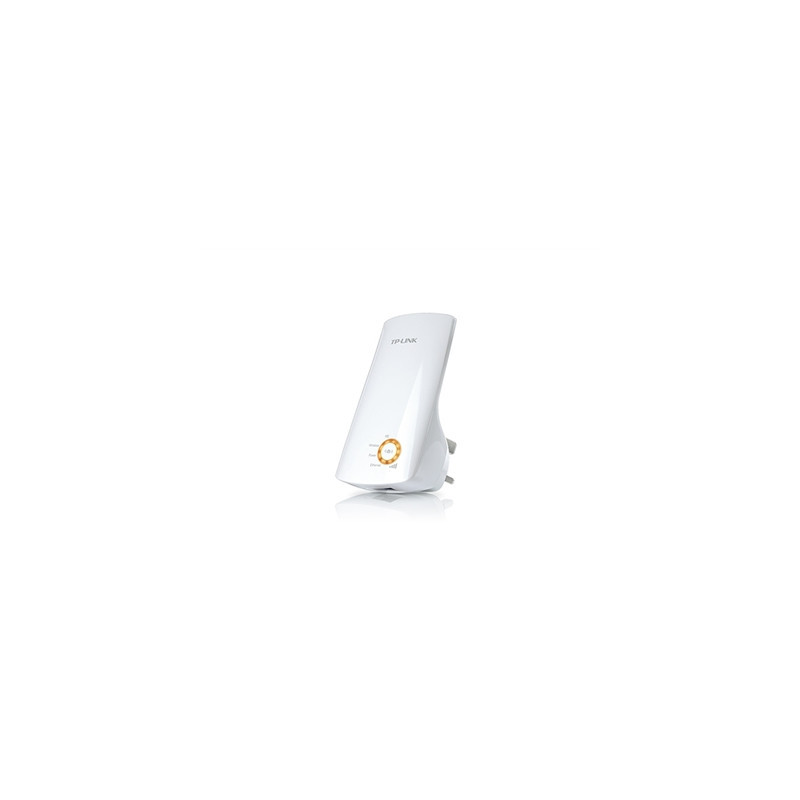

TP-Link TL-WA850RE N300 Universal Range Extender

Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
Miniature size and wall-mounted design make it easy to deploy and move flexibly
Easily expand wireless coverage at a push of Range Extender button
Ethernet port allows the Extender to function as a wireless adapter to connect wired devices
Tether App allows easy access and management using any mobile device
LED Control function includes a Night Mode for peaceful sleep

Boost Your Wireless Network
Tired of Wi-Fi ’’dead zone’’? TP-Link’s range extender connects to your router wirelessly strengthening and expanding its signal into areas it can’t on its own. The device also reduces signal interference to ensure reliable Wi-Fi coverage throughout your home or office.

Easy Setup and Flexible Placement
Press the WPS button on your router and the Range Extender button on your 850RE within 2 minutes to easily connect to the network. Once connected with an existing router you can simply unplug and plug the TL-WA850RE back in a location for the best signal quality and coverage in your house without needing to configure the extender again.

Ethernet Bridge
The TL-WA850RE’s single Ethernet port allows the Extender to function as a wireless adapter to connect wired devices like Blu-ray players gaming consoles DVRs and Internet TVs. At the same time the device can share the wireless network as well.

Smart Signal Indicator Light
5 signal lights show the strength of signal that TL-WA850RE receives from the existing router which can help to find the right location to place the range extender.
It’s recommended that you choose a location where at least 3 signal light blue in order to guarantee a good performance.

Tether App for Easy Use
Use any mobile device to easily access and manage various features including the LED Control function's Night Mode which allows you to enjoy a more peaceful night's sleep.

Specifications

Interface
1 x 10/100Mbps Ethernet Port (RJ45)

Button
WPS Button Reset Button

Input Power
100-240V~50/60Hz

Max. Power Consumption
About 3W

Dimensions (W x D x H)
4.3 x 2.6 x 3.0 in. (110.0 x 65.8 x 75.2mm)

Antenna
2 Internal Antennas

Wireless Standards
IEEE 802.11n IEEE 802.11g IEEE 802.11b

Frequency
2.4~2.4835GHz

Signal Rate
11n: Up to 300Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)

Working Modes
Range Extender/Access Point

Reception Sensitivity
270M:<-68dBm
130M:<-68dBm
108M:<-68dBm
54M:<-68dBm
11M:<-68dBm
6M:<-68dBm
1M:<-68dBm

Wireless Functions
Enable/Disable Wireless Radio
Access Control
LED Control
Power Schedule
Wi-Fi Coverage

Wireless Security
64/128/152-bit WEP
WPA-PSK / WPA2-PSK

Transmission Power
< 20 dBm (EIRP)

Network Services Enabled by Default
Web Server
Manage and configure device through web (HTTP/HTTPS)
Port: 80/443 Protocol: TCP

DHCP Server
IP address assignment (DHCP)
Port: 67 Protocol: UDP

App management
Manage and configure device through app
Port: 20001 Protocol: TCP
Port: 20002 Protocol: UDP

Certification
CE RoHS

System Requirements
Microsoft Windows 98SE NT 2000 XP Vista or Windows 7 8 10 Mac OS NetWare UNIX or Linux.

Package Content
300Mbps Universal Wi-Fi Range Extender TL-WA850RE
Quick Installation Guide
