TP-Link Deco BE25(3-pack) BE3600 Whole Home Mesh Wi-Fi 7 System 2.5G Multi Gigabit

3.6 Gbps Dual-Band WiFi
2882 Mbps (5 GHz) + 688 Mbps (2.4 GHz)

2.5 Gbps Wired Connections
2x 2.5 Gbps ports ensure max flexibility and boosted throughput.

Wireless and Wired Combined Backhaul
Connects a wireless and wired backhaul with each unit simultaneously to improve overall throughput and reduce latency.

Multi-Link Operation (MLO)
Simultaneously send and receive data across different bands and channels to increase throughput reduce latency and improve reliability.

Seamless AI-Driven Roaming
Forms a unified network with built-in AI-Roaming creating the ideal Wi-Fi solution for your home.

TP-Link HomeShield
Provides comprehensive network protection robust parental controls and real-time IoT security.

Universal Compatibility
Backward compatible with all WiFi generations and works with any internet service provider (ISP) and modem.

WiFi 7 WiFi Like Never Before
WiFi 7 offers accelerated throughput lower latency stronger anti-jamming and higher efficiency. Join the league of pros and experience the sheer performance of the next generation of WiFi.

Blazing Fast WiFi 7 Speed up to 3.6 Gbps
The latest 4K-QAM boosts the Wi-Fi speeds up to 3.6 Gbps — ideal for bandwidth-intensive tasks like cloud gaming and 8K video. Families will enjoy immersive live-streaming with flawless video and clear audio without buffering.

Ultra-Fast 2.5 Gbps Wired Performance
Perfect for bandwidth-intensive tasks like cloud gaming VR entertainment and 8K video streaming. Enjoy immersive live-streaming with flawless video and clear audio no buffering. Ideal for families and busy households.

The Ultimate Backhaul: Stronger and More Flexible
Through our self-developed technology Deco BE25 is able to connect wireless and wired backhaul with each unit simultaneously. What’s more with the latest WiFi 7 MLO technology the system’s wireless and wired combined backhaul aggregation flow rate is increased. This way it greatly improves overall throughput and reduces latency delivering broader coverage with more stable and reliable connections.

Smart Security for Smart Living
HomeShield is a built-in service it provides a series of services for you to protect all your devices comprehensively with various features at home or on-the-go. With HomeShield safer internet experiences bring more happiness to your smart living.

VPN Clients and Server Supported
Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. You can create different VPN connection types including OpenVPN PPTP L2TP/IPSec VPN. Besides Deco can run both the VPN and ordinary internet connections at the same time delivering security and flexibility.

Private IoT Network for More Security
Set up a separate WiFi for IoT devices and overlay HomeShield and advanced WPA3 encryption to better protect the security of your home network and IoT devices.

Uninterrupted Streaming when Moving Between Rooms
Deco Mesh forms a unified network with a single network name. With built-in AI-Roaming technology it creates the ideal WiFi solution with its advanced algorithms and self-learning. Walk through your home and enjoy seamless streaming at the fastest possible speeds.

Simple. Easy. Yet Powerful.
Setup and manage your network anytime and anywhere on the friendly TP-Link Deco app. In just three easy steps your entire home can be blanketed in strong and reliable WiFi.

Specification

Standards and Protocols
Wi-Fi 7
IEEE 802.11be/ax/ac/n/a 5 GHz
IEEE 802.11be/ax/n/b/g 2.4 GHz

WiFi Speeds
BE3600
5 GHz: 2882 Mbps (802.11be)
2.4 GHz: 688 Mbps (802.11be)

WiFi Range
Broader Whole Home Coverage
TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

AI-Driven Mesh
Intelligently learns the network environment to provide ideal Wi-Fi unique to your home

4x High-Performance Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas

WiFi Capacity
Very High
Dual-Band
Distribute devices to different bands for optimal performance

OFDMA
Simultaneously communicates with multiple WiFi 7 clients

4 Streams
More than enough bandwidth for connected devices

Working Modes
Router Mode
Access Point Mode

Advanced Features
Multi-Link Operation (MLO)
160 MHz Channel
4K-QAM
Multi-RUs
Works with Alexa and Google Assistant

Network Security
SPI Firewall
Access Control

HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner

Guest Network
1x 5 GHz Guest Network
1x 2.4 GHz Guest Network
Effective Time
Bandwidth Control

VPN Server
OpenVPN Server
PPTP VPN Server
L2TP/IPSec VPN Server

VPN Client
OpenVPN Client
PPTP VPN Client
L2TP/IPSec VPN Client

WiFi Encryption
WPA-Personal
WPA2-Personal
WPA3-Personal

Ethernet Ports
2x 2.5 Gbps Per Deco Unit
Supports WAN/LAN auto-sensing

Buttons
1x Reset Button
1x WPS

Advanced Features
Reboot Schedule
Tapo/Kasa Onboarding
IoT network & Device Isolation
Static Routing Function
Node/Band Connection Preference

Protocols
IPv4
IPv6

Service Kits
HomeShield

Parental Controls
HomeShield Parental Controls
Youtube Restriction
SafeSearch
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports

WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Quality of Service
HomeShield QoS
QoS by Device

Cloud Service
OTA Firmware Upgrade
TP-Link ID
DDNS

NAT Forwarding
Port Forwarding
UPnP

IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

DHCP
Address Reservation
DHCP Client List
Server

DDNS
TP-Link

Management Features
Deco App

Network Services Enabled by Default
Web Server
Manage and configure device through web (HTTP/HTTPS)
Port: 80/443 Protocol: TCP

DNS
Port: 53 Protocol: TCP & UDP

DHCP Server
IP address assignment (DHCP)
Port: 67 Protocol: UDP

App management
Manage and configure device through app
Port: 22 Protocol: TCP
Port: 20001 Protocol: TCP
Port: 30001 Protocol: TCP
Port: 20002 Protocol: UDP

Dimensions (W x D x H)
5.91 x 5.91 x 2.44 in (150 x 150 x 62 mm)

Certifications
CE FCC RoHS

Package Content

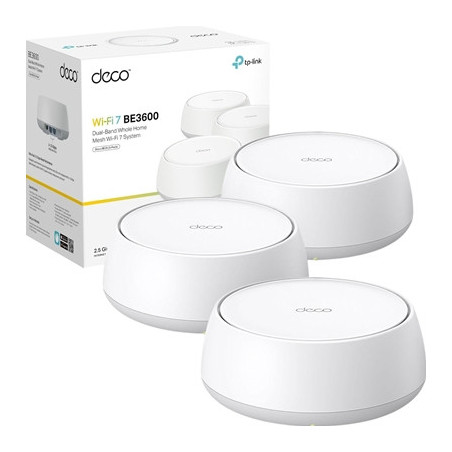

3 Deco BE25 units
1 RJ45 Ethernet cable
3 Power adapters
Quick Installation Guide
